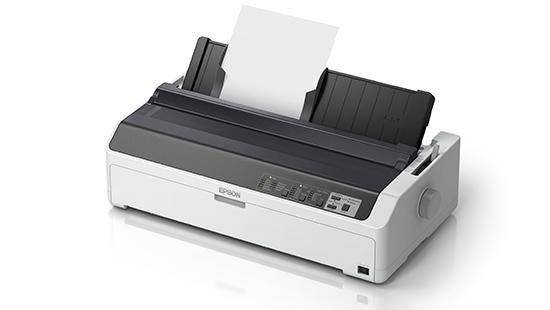

Epson LQ-2090II Dot Matrix Printer (1 Year Manufacture Local Warranty In Singapore)

Name: Epson LQ-2090II Dot Matrix Printer (1 Year Manufacture Local Warranty In Singapore)
Brand: Epson
SKU: LQ-2090II
Price: 898.00 SGD
Availability: InStock

Save 5%

EpsonSKU: LQ-2090II

1 review

Price:

$ 898.00 SGD $ 950.00 SGD

Quantity:

Share this product

BUILT FOR RELIABILITY, ENGINEERED FOR CONVENIENCE.

24-pin wide carriage

Speed: Up to 487 cps (10cpi)

Prints up to 7-part forms

25,000 power on hours MTBF

USB 2.0, Bi-directional Parallel Supported

Enjoy fast, reliable and convenient printing with Epson’s LQ-2090II dot matrix printer. Based on Epson’s experience in delivering industry-standard solutions, this printer helps to run and grow your business while you stay in control of your operations. Experience unparalleled durability and minimum downtime with a mean time between failure (MTBF) rating of 25,000 POH (power on hours) and printhead life of up to 400 million characters. A high character yield of up to 8 million means low running costs and more affordable prints.

Datasheet

Increate Productivity
Enjoy maximum productivity with fast print speeds of up to 487 cps (10 cpi) and 128 kb memory buffer.

Multiple Copy Capability
High copy capability of up to 7 layers (1 original + 6 copies)^ means sharp, clear documents right through the last copy.

Robust and Reliable
With MTBF (mean time between failure) of 20,000 power-on hours and a print head life of 400 million strokes per wire, this extremely robust printer is suitable for medium and large print volumes. Both features guarantee uninterrupted operation and less maintenance, in turn enhancing your productivity and reducing your total cost of ownership.

What's In The Box:

User’s manual
Driver disc
Ribbon cartridge (Black)
Power supply cable
Push tractor unit
Rear sheet guide

Technical Specifications

Printing Technology:

Print Method: Impact dot matrix
Control Panel:6 switches and 10 LEDs
Print Direction: Bi-direction with logic seeking
Number of Pins in Head:24 pins
Control Code:ESC/P2, IBM PPDS

Print Speed:

Ultra High Speed Draft:10cpi: 550cps
High Speed Draft:10 / 12 cpi: 487 / 584 cps
Draft:10 / 12 cpi: 366 / 439 cps
Letter Quality:10cpi: 121cps

Reliability:

Printhead Life:400 million strokes / wire
Mean Print Volume Between Failure (MVBF):50 million lines (except printhead)
Mean Time Between Failure (MTBF):25,000 Power On Hours (POH) (25% Duty)

Print Characteristics:

Character Sets:1 Italic and 12 graphical character tables: Italic table, PC437 (US, Standard Europe), PC850 (Multilingual), PC860 (Portuguese)^*1
PC861 (Icelandic), PC865 (Nordic), PC863 (Canadian-French), Abicomp, BRASCII, Roman 8, ISO Latin 1, PC858, ISO 8859-15
Bitmap Fonts:10, 12, 15 cpi
Scalable Fonts:Epson Roman / Sans Serif / Roman T / Sans Serif H: 10.5 pt., 8 pt. - 32 pt. (every 2 pt.)
Barcode:EAN-13, EAN-8, Interleaved 2 of 5, UPC-A, UPC-E, Code 39, Code 128, POSTNET

Paper Path:

Manual Insertion: Front or rear in-top out
Push Tractor: Front or rear in, top out
Pull Tractor: Front, rear or bottom in, top out

Paper Media:

Cut Sheet (Single Sheet):Entry: Front
Length: 100 - 420 mm | (3.9 - 16.5”)
Width: 100 - 420 mm | (3.9 - 16.5”)
Thickness: 0.065 - 0.14 mm | (0.0025 - 0.0055”)
Entry: Rear
Length: 100 - 420 mm | (3.9 - 16.5”)
Width: 100 - 420 mm | (3.9 - 16.5”)
Thickness: 0.065 - 0.14 mm | (0.0025 - 0.0055”)
Cut Sheet (Multi-part Forms):Entry: Front
Length: 100 - 420 mm | (3.9 - 16.5”)
Width: 100 - 420 mm | (3.9 - 16.5”)
Thickness: 0.12 - 0.46 mm | (0.0047 - 0.018”)
Copies: 1 Original + 5 copies
Continuous Paper (Single Sheet / Multi-part):Entry: Front, Rear, Bottom
Length: 101.6 - 558.8 mm | (4.0 - 22.0”)
Width: 101.6 - 406.4 mm | (4.0 - 16.0”)
Thickness: 0.065 - 0.49 mm | (0.0025 - 0.019”)
Copies: 1 Original + 6 copies
Envelope (No.6):Entry: Rear
Length: 92mm | (3.6”)
Width: 165mm | (6.5”)
Thickness: 0.16 - 0.52 mm | (0.0063 - 0.0205”)
Envelope (No.10):Entry: Rear
Length: 105mm | (4.1”)
Width: 241mm | (9.5”)
Thickness: 0.16 - 0.52 mm | (0.0063 - 0.0205”)
Label (Base Sheet):Entry: Bottom
Length: 101.6 - 558.8 mm | (4.0 - 22.0”)
Width: 101.6 - 406.4 mm | (4.0 - 16.0”)
Thickness: 0.16 - 0.19 mm | (0.0063 - 0.0075”)
Card:Entry: Front, Rear
Length: 100 - 148 mm | (3.9 - 5.8”)
Width: 100 - 148 mm | (3.9 - 5.8”)
Thickness: 0.22mm | (0.0087”)
Roll Paper:Entry: Rear
Width: 216mm | (8.5”)
Thickness: 0.07 - 0.09 mm | (0.0028 - 0.035”)
Line Spacing:4.23mm (1/6”) or programmable in increments of 0.0706mm (1/360”)

Environmental Conditions (Operating):

Temperature:5 - 35 °C ^*3Humidty:10 - 80% RH ^*3

Acoustic Noise:

Acoustic Noise: 55dB

Input Data Buffer:

Input Data Buffer:128KB

Interface:

Interface:USB 2.0, Bi-directional parallel
(IEEE-1284 nibble mode supported)

Printable Columns:

Pitch:10cpi: 136 columns

Ribbon Cartridge:

Standard:Fabric Ribbon Cartridge (Black)
Ribbon Life:Approx. 8 million Characters^*2

Supported Operating System:

Printer Driver:Microsoft Windows XP / Vista / 7 / 8 / 10
Utility:Epson Status Monitor 3: Microsoft Windows XP / Vista / 7 / 8 / 10
Epson Setting Utility: Microsoft Windows XP / Vista / 7 / 8 / 10
