Epson DLQ-3500IIN Dot Matrix Printer

  • $ 2,680.00 SGD
  • Save $ 270.00 SGD

Share on Whatsapp

Deliver Precise and Reliable Copies every time

  • Fast and durable wide carriage Epson 24 pin flat-bed printer
  • Prints up to 550 characters per second
  • Automatic paper handling and automatic paper thickness adjustment
  • Prints up to 8 part forms (1 original + 7 copies)
  • Built-in network connectivity via Ethernet cable

    Datasheet

  • Achieve detailed precision for your printing needs with Epson DLQ-3500IIN, the first Dot matrix printer with colour LCD monitor panel. Built to deliver extreme print volume requirements and extraordinary output quality with print speeds of up to 550 characters per second (cps), up to eight-part forms with absolute accuracy as well as ribbon yield of up to 6 million characters, the versatile DLQ 3500IIN dot matrix printer is the ideal solution to maximise business efficiency.



    What's In The Box:



    • Ribbon cartridge (Black)
    • Power Supply Cable
    • CD Driver
    • Front sheet guide
    • User guide



    Technical details



    Printing Technology:


    Print Method:Impact dot matrix

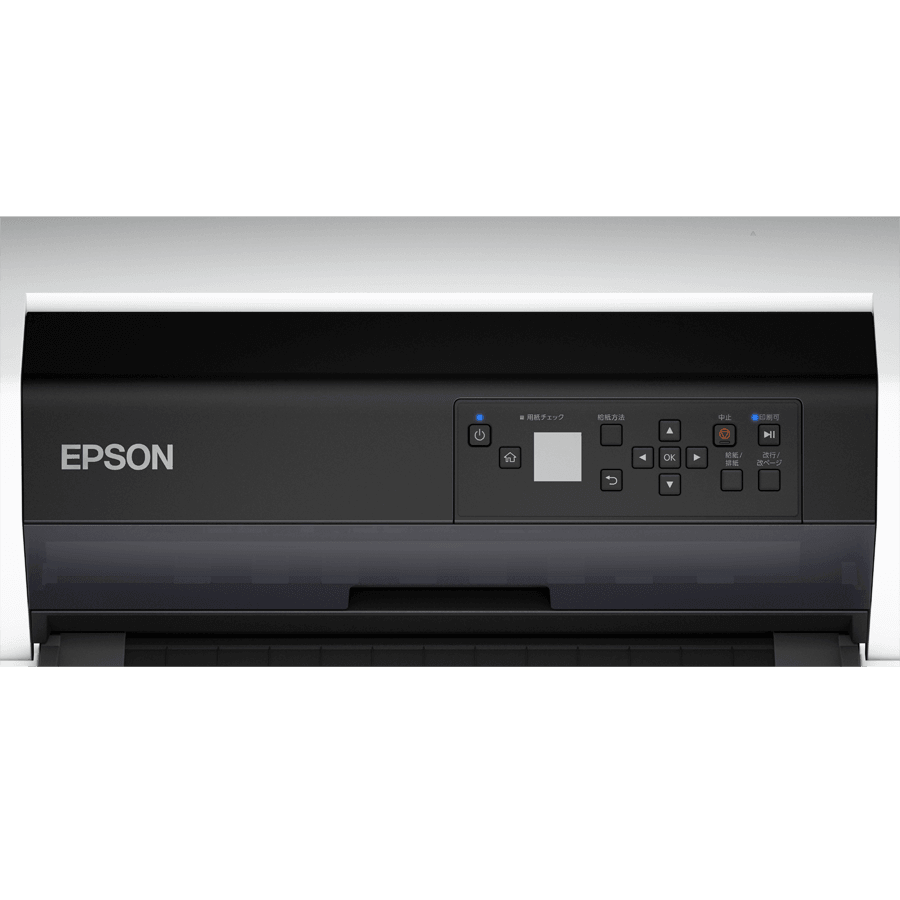

    Control Panel:13 switches and 3 LEDs with 1.44” CLR LCD Screen
    Print Direction:Bi-direction with logic seeking
    Colour:Black
    Number of Pins in Head:24 pins x 2 (total 48 pins)
    Control Code:ESC/P2 and IBM PPDS emulation

    Print Speed:


    High Speed Draft:10 cpi: 550 cpsDraft:10 cpi: 550 cps
    Condensed, 17 cpi: 501 cpsLetter Quality:10 cpi: 195 cps
    Condensed, 17 cpi: 333 cps

    Reliability:


    Printhead Life:200 million strokes/wire
    Mean Print Volume Between Failure (MVBF):25 million lines (except print head)
    Mean Time Between Failure (MTBF):10,000 Power On Hours (POH)

    Print Characteristics:


    Character Sets:1 Italic and 12 graphical character tables
    Italic table, PC437 (US Standard Europe), PC850 (Multilingual), PC860 (Portuguese)3, PC861 (Icelandic), PC865 (Nordic), PC863 (Canadian-French), Abicomp, BRASCII, Roman 8, ISO Latin 1, PC 858, ISO 8859-15
    Special Font (Thai Model only): Busaba, Jittra Font
    Supported 7 character tables: KU42, TIS11, TIS13, TIS16, TIS17, TIS18, TSM/WIN
    Bitmap Fonts: EPSON Draft/ Courier: 10 / 12 / 15 cpi ; EPSON Roman /Sans Serif: 10 / 12 / 15 cpi, Proportional ; EPSON Prestige: 10 / 12 cpi ; EPSON Script/ OCR-B/ Orator/ Orator-S: 10 cpi ; EPSON Script C: Proportional
    Scalable Fonts: EPSON Roman/ Sans Serif/ Roman T/ Sans Serif H: 10.5 pt, 8 pt – 32 pt (every 2 pt)
    Barcode: EAN-13, EAN-8, Interleaved 2 of 5, UPC-A, UPC-E, Code 39, Code 128, POSTNET

    Paper Path:


    Manual Insertion:Front in, front out
    Push Tractor:Rear in, front out
    Pull Tractor:Rear in, front out

    Paper Media:


    Cut Sheet (Single Sheet):Length: 80.0 - 420.0mm (3.15 - 16.5")
    Width: 90.0 - 420.0mm (3.15 - 16.5")
    Thickness: 0.065 - 0.19mm (0.0025 - 0.0074")
    Cut Sheet (Multi-part Forms):Length: 80.0 - 420.0mm (3.15 - 16.5")
    Width: 90.0 - 420.0mm (3.15 - 16.5")
    Thickness: 0.12 - 0.62mm (0.0047 - 0.0244")
    Continuous Paper (Single Sheet / Multi-part):Length: 76.2 - 558.8mm (3.0 - 22.0")
    Width: 101.6 - 406.4mm (4.0 - 16.0")
    Thickness: 0.065 - 0.19mm (0.0025 - 0.0074")
    Envelope (No.6):Length: 92.0mm (3.6”)
    Width: 165.0mm (6.5”)
    Thickness: 0.16 - 0.52mm (0.0063 - 0.0205”)
    Envelope (No.10):Length: 105.0mm (4.1”)
    Width: 241.0mm (9.5”)
    Thickness: 0.16 - 0.52mm (0.0063 - 0.0205”)
    Labels:Base Sheet Length (one page): 76.2 ~ 558.8mm (3.0 ~ 22.0")
    Card:Length: 100.0 - 200.0mm (3.9 - 7.8")
    Width: 100.0 - 200.0mm (3.9 - 7.8")
    Thickness: 0.22mm (0.0087")
    Copy:1 original + 7 copies
    Line Spacing:4.23mm (1/6”) or programmable in increments of 0.0706mm (1/360”)

    Dimensions and Weight:


    Dimensions (W x D x H):661 x 433 x 276 mmWeight:18.9kg

    Consumables:


    Consumables: Ribbon Cartridge (Black): C13S015587

    Environmental Conditions (Operating):


    Temperature:2 5 - 35°C
    Humidty:10 - 80 % RH
    Electrical Specification:Rated Voltage: AC 100 - 240V
    Rated Frequency: 50 - 60 Hz
    Power Consumption (Operating): Approx. 78W
    Power Consumption (Sleep Mode): Approx. 1W

    Acoustic Noise:


    Acoustic Noise:Approx. 59 dB(A) (ISO 7779 pattern)

    Input Data Buffer:


    Input Data Buffer:128 KB

    Interface:


    Interface:USB 2.0, Bi-directional parallel (IEEE-1284 nibble mode supported), 100base-Tx wired LAN

    Printable Columns:


    Pitch:10 cpi: 136 columns

    Ribbon Cartridge:


    Standard: Fabric Ribbon Cartridge (Black)
    Ribbon Life: Approx. 6 million characters

    Supported Operating System:


    Printer Driver:Microsoft Windows® XP / Vista / 7 / 8 / 10
    Utility:Epson Status Monitor 3: Microsoft Windows® XP / Vista / 7 / 8 / 10
    Epson Setting Utility: Microsoft Windows® XP / Vista / 7 / 8 / 10
    -->
