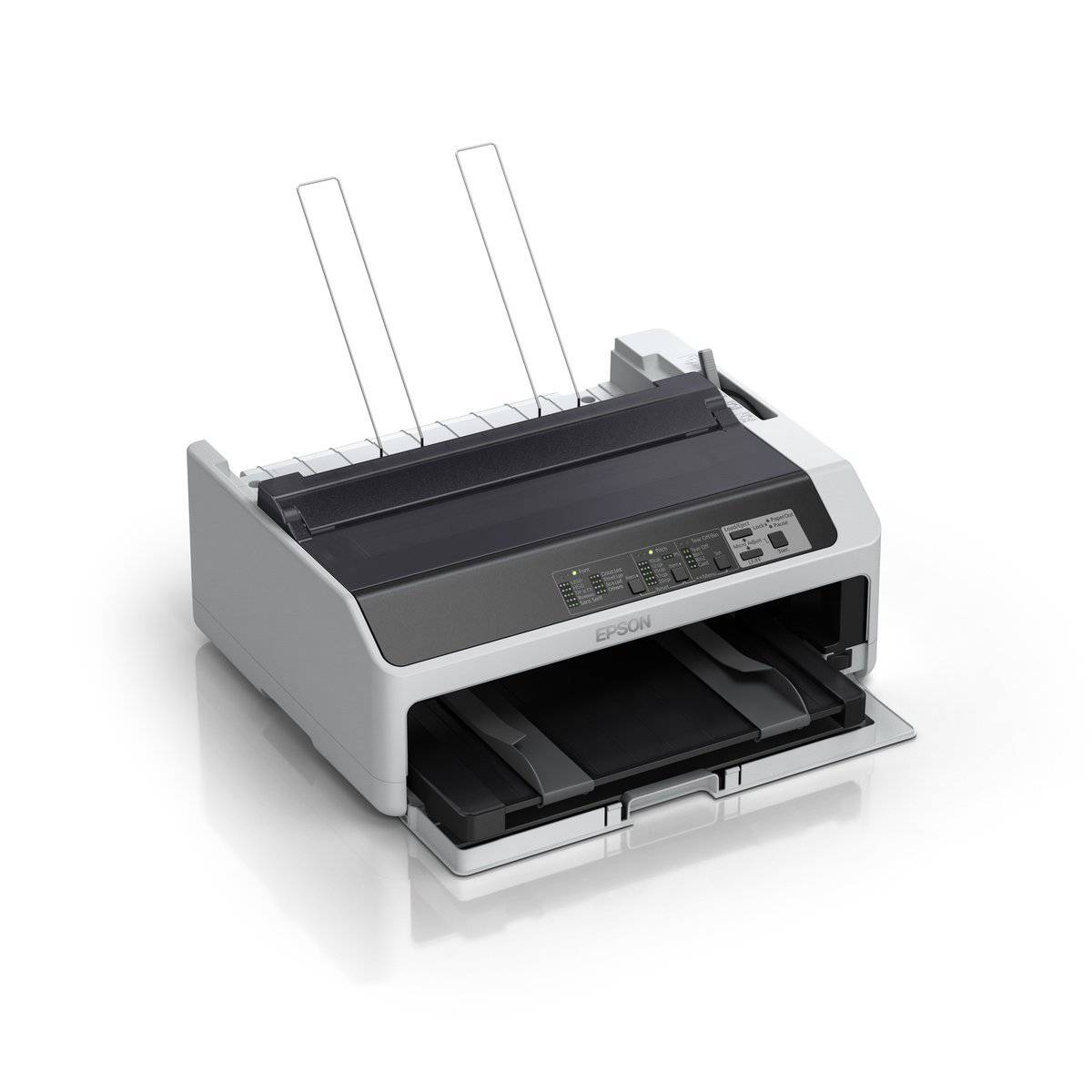

Epson LQ-590II Impact Printer

  • $ 650.00 SGD
  • Save $ 80.00 SGD

Share on Whatsapp

AN EFFICIENT, RELIABLE AND AFFORDABLE PRINTER YOU CAN RELY ON.

Improved Efficiency, Proven Reliability

  • 24-pins Impact Printer
  • Print speeds of up to 487 cps (10 cpi)
  • 128 kb memory buffer
  • MTBF of 25,000 POH



        Datasheet

        Increased Productivity
        Enjoy maximum productivity with fast print speeds of up to 487 cps (10 cpi) and 128 kb memory buffer.

        Long-life Reliability
        Enjoy cost savings, superior print quality and minimal downtime with an MTBF of 25,000 POH.



        What's In The Box:



        • Main Unit
        • CD-ROM
        • Set-up Manual
        • AC Power Cable
        • Ribbon Cartridge
        • Guide Stacker
        • Wing
        • Tractor



        Technical Specifications

        Printing Technology:


        Print Method:Impact dot matrix
        Control Panel:6 switches and 10 LEDs
        Print Direction:Bi-direction
        Control Code:ESC/P2, IBM PPDS
        Number of Pins:24

        Print Speed:


        Ultra High Speed Draft:10 cpi: 550cps
        High Speed Draft:10 / 12 cpi: 487 / 584 cps
        Draft:10 / 12 cpi: 366 / 439 cps
        NLQ:10 / 12 cpi: 121 / 145 cps

        Reliability:


        Printhead Life:400 million strokes / wire
        Mean Print Volume Between Failure (MVBF):50 million lines (except print head)
        Mean Time Between Failure (MTBF):25,000 Power On Hours (POH) (25% Duty)

        Print Characteristics:


        Character Sets:1 Italic and 12 graphical character tables: Italic table, PC437 (US, StandardEurope), PC850 (Multilingual), PC860 (Portuguese), PC861 (Icelandic), PC865 (Nordic), PC863 (Canadian-French), Abicomp, BRASCII, Roman 8, ISO Latin 1, PC858, ISO 8859-15
        Bitmap Fonts:10, 12, 15 cpi
        Scalable Fonts:Epson Roman / Sans Serif / Roman T / Sans Serif H: 10.5pt., 8pt - 32pt. (every 2pt.)
        Barcode:EAN-13, EAN-8, Interleaved 2 of 5, UPC-A , UPC-E, Code 39, Code 128, POSTNET

        Paper Path:


        Manual Insertion: Front or Rear in-Top out
        Push Tractor: Front or rear in, top out
        Pull Tractor: Front, rear or bottom in, top out

        Paper Media:


        Cut Sheet (Single Sheet):Entry: Front
        Length: 100 - 364 mm (3.9 - 14.3”)
        Width: 100 - 257 mm (3.9 - 10.1”)
        Thickness: 0.065 - 0.14 mm (0.0025 - 0.0055”)
        Entry: Rear
        Length: 100 - 364 mm (3.9 - 14.3”)
        Width:100 - 257 mm (3.9 - 10.1”)
        Thickness: 0.065 - 0.14 mm (0.0025 - 0.0055”)
        Cut Sheet (Multi-part Forms):Entry: Front
        Length: 100 - 364 mm (3.9 - 14.3”)
        Width: 100 - 257 mm (3.9 - 10.1”)
        Thickness: 0.12 - 0.46 mm (0.0047 - 0.018”)
        Copies: 1 Original + 5 copies
        Continuous Paper (Single Sheet / Multi-part):Entry: Front, Rear, Bottom
        Length: 101.6 - 558.8 mm (4.0 - 22.0”)
        Width: 101.6 - 254 mm (4.0 - 10.0”)
        Thickness: 0.065 - 0.49 mm (0.0025 - 0.019”)
        Copies: Original + 6 copies
        Envelope (No.6):Entry: Rear
        Length: 92mm (3.6”)
        Width: 165mm (6.5”)
        Thickness: 0.16 - 0.52 mm (0.0063 - 0.0205”)
        Envelope (No.10):Entry: Rear
        Length: 105mm (4.1”)
        Width: 241mm (9.5”)
        Thickness: 0.16 - 0.52 mm (0.0063 - 0.0205”)
        Label (Base Sheet):Entry: Bottom
        Length: 101.6 - 558.8 mm (4.0 - 22.0”)
        Width: 100 - 148 mm (3.9 - 5.8”)
        Thickness: 0.16 - 0.19 mm (0.0063 - 0.0075”)
        Card:Entry: Front, Rear
        Length: 100 - 148 mm (3.9 - 5.8”)
        Width: 100 - 148 mm (3.9 - 5.8”)
        Thickness: 0.22mm (0.0087”)
        Roll Paper:Entry: Rear
        Diameter: 127mm (5”)
        Width: 216mm (8.5”)
        Thickness: 0.07 - 0.09 mm (0.0028 - 0.035”)
        Line Spacing:4.23mm (1/6”) or programmable in increments of 0.0706mm (1/360”)

        Options:


        Options:
        Single Bin Cut Sheet Feeder C12C806372
        Pull Tractor Unit C12C933761
        Ribbon Cartridge C13S015589
        High Capacity Cut Sheet Feeder C12C806382

        Environmental Conditions (Operating):


        Temperature:5 - 35 °C*2
        Humidty:10 - 80% RH*2

        Acoustic Noise:


        Acoustic Noise:55dB

        Input Data Buffer:


        Input Data Buffer:128KB

        Interface:


        Interface:USB 2.0, Bi-directional parallel USB 2.0, Bi-directional parallel
        (IEEE-1284 nibble mode supported)

        Printable Columns:


        Pitch:10cpi: 80 columns

        Ribbon Cartridge:


        Standard: Fabric Ribbon Cartridge (Black)
        Ribbon Life: Approx. 5 million Characters*1

        Supported Operating System:


        Printer Driver:Microsoft Windows XP / Vista / 7 / 8 / 10
        Utility:Epson Status Monitor 3: Microsoft Windows XP / Vista / 7 / 8 / 10
        Epson Setting Utility: Microsoft Windows XP / Vista / 7 / 8 / 10

        -->
