APC UPS Smart-UPS 2200VA LCD RM 2U 230V with SmartConnect SMT2200RMI2UC (3 Years Manufacture Local Warranty In Singapore)

Save 11%
APCSKU: SMT2200RMI2UC
No reviews

Price:
Sale price$ 2,767.00 SGD Regular price$ 3,100.00 SGD

Description

APC UPS Smart-UPS 2200VA LCD RM 2U 230V with SmartConnect SMT2200RMI2UC (3 Years Manufacture Local Warranty In Singapore)

Download Datasheet

Features

Output power capacity : 1.98kWatts / 2.2kVA

Rack Height : 2U

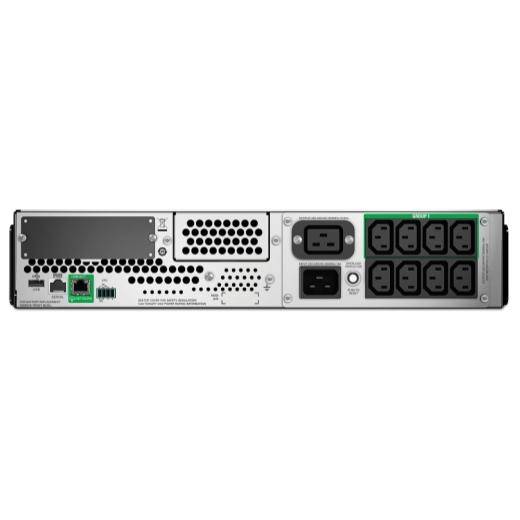

Output Connections
(8) IEC 320 C13 (Battery Backup)
(1) IEC 320 C19 (Battery Backup)
(3) IEC Jumpers (Battery Backup)

Nominal Output Voltage : 230V

Nominal Input Voltage : 230V

Input Connections : BS1363A British, IEC 320 C20, Schuko CEE 7 / EU1-16P

Cord Length : 2meters

APC Smart-UPS 2200VA LCD RM 2U 230V with SmartConnect
Intelligent and efficient network power protection from entry level to scaleable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.
Includes: Documentation CD, Rack mounting hardware, Rack mounting support rails, USB cable
  • Cold-start capable
    Provides temporary battery power when the utility power is out.
  • Energy meter
    Provides actual kilowatt hours of usage for energy conscious users.
  • Green mode
    Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
  • High online efficiency
    Reduces utility costs, generates less heat.
  • Intuitive LCD interface
    Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
  • Predictive replace battery date
    Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
  • Pure sine wave output on battery
    Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
  • Sequenced network shutdown and reboot
    Customize network shutdown and reboot sequence of connected servers and UPSs.
  • Single switched outlet group
    Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
  • SmartConnect
    Innovative, easy to use remote monitoring feature that provides automatic notifications, firmware updates, and advanced support services.
  • SmartSlot
    Customize UPS capabilities with management cards.
  • StruxureWare Data Center Expert compatible
    Enables centralized management via StruxureWare Data Center Expert.
  • Temperature-compensated battery charging
    Prolongs battery life by regulating the charge voltage according to battery temperature.

Smart-UPS Features & Benefits

Availability

Boost and Trim Automatic Voltage Regulation (AVR)
Gives higher application availability by correcting low and high voltage conditions without using the battery (not available on all models).

Disconnected battery notification
Warns when a battery is not available to provide backup power.

Temperature-compensated battery charging
Prolongs battery life by regulating the charge voltage according to battery temperature.

Power conditioning
Protects connected loads from surges, spikes, lightning, and other power disturbances.

Automatic restart of loads after UPS shutdown
Automatically starts up the connected equipment upon the return of utility power.

Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging.

Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.

Serviceability

Battery failure notification
Provides early-warning fault analysis on batteries enabling timely preventive maintenance

Predictive failure notification.
Provides early-warning fault analysis ensuring proactive component replacement.

Hot-swappable batteries
Ensures clean, uninterrupted power to protected equipment while batteries are being replaced

User-replaceable batteries
Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)

Resettable circuit breakers
Enables a quick recovery from overload events.

Adaptability

Adjustable voltage-transfer points
Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.

Adjustable voltage sensitivity
Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.

Safety

Safety-agency approved
Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.

Manageability

Audible alarms
Provides notification of changing utility power and UPS conditions.

USB connectivity
Provides management of the UPS via a USB port (not available on all models).

Serial connectivity
Provides management of the UPS via a serial port.

Network manageable
Provides remote power management of the UPS over the network.

LED status indicators
Quickly understand unit and power status with visual indicators.

Marketing features

Smarter productivity with ability to tailor to your specific application needs
Intuitive LCD interface provides clear information with the ability to configure the UPS locally with easy to use navigation keys. Over 15 different programmable settings including switched outlet group control allow for application specific settings, thresholds and notifications.

Save time with easy and convenient remote accessibility
Network manageable via serial, USB or optional ethernet. Includes Powerchute® Business Edition Software for convenient monitoring and control, safe operating system shutdown and innovative energy management capabilities.

Low operating and maintenance costs with high efficiency, proven reliability and intelligent battery management
Patented green operating mode achieves efficiencies over 97%. Smart-ups was the first network UPS to be Energy Star certified. Intelligent battery management, pioneered by APC, maximizes battery performance and life through intelligent, precision temperature compensated charging. Dynamic battery replacement date indicator and automatic self tests insure battery reliability and warn in advance of needing replacement. Convenient, easy to connect, hot-swappable battery modules provide battery replacement without powering down. Designed and manufactured by APC for over 23 years, Smart-UPS is the world’s most trusted network UPS with over 25 million units sold.

Avoids costly power problems by keeping your IT equipment and data safe and available
Network grade power conditioning protects from damaging surges and disruptive noise. Solid state automatic voltage regulation boosts low input voltage up to 30% and trims high voltage up to 12% without battery operation. Reliable battery back-up capacity to power through outages or gracefully shutdown systems

Peace of mind that comes with full equipment compatibility and reliability of a leader
Provides pure sine wave output which is recommended by server manufacturers using active power factor corrected (PFC) power supplies. Safety agency tested and approved means that you can deploy Smart-UPS with confidence that they meet or exceed the industry’s most rigorous standards.

Product Distribution

United Arab Emirates, Afghanistan, Albania, Armenia, Angola, Austria, Australia, Azerbaijan, Bosnia and Herzegovina, Belgium, Burkina Faso, Bulgaria, Bahrain, Burundi, Benin, Botswana, The Democratic Republic Of Congo, Switzerland, Côte d'Ivoire, Cameroon, Cyprus, Czech Republic, Germany, Djibouti, Denmark, Algeria, Estonia, Egypt, Eritrea, Spain, Ethiopia, Finland, Fiji, France, Gabon, United Kingdom, Ghana, Gambia, Greece, Hong Kong, Croatia, Hungary, Indonesia, Ireland, Israel, Iraq, Iceland, Italy, Jordan, Kenya, Cambodia, South Korea, Kuwait, Lebanon, Liberia, Lithuania, Luxembourg, Latvia, Morocco, Madagascar, Macedonia, Mali, Mongolia, Mauritania, Malta, Mauritius, Malawi, Malaysia, Mozambique, Namibia, Nigeria, Netherlands, Norway, New Zealand, Oman, Philippines, Pakistan, Poland, Portugal, Qatar, Reunion, Romania, Rwanda, Saudi Arabia, Sweden, Singapore, Slovenia, Slovakia, Sierra Leone, Senegal, Somalia, Togo, Thailand, Tunisia, Turkey, Tanzania, Uganda, Yemen, Mayotte, South Africa, Zambia, Zimbabwe

Technical Specifications

Output

Max Configurable Power (Watts) : 1.98kWatts / 2.2kVA

Output Voltage Note :
Configurable for 220 : 230 or 240 nominal output voltage

Output Voltage Distortion : Less than 5 %

Output Frequency (sync to mains) : 50/60 Hz +/- 3 Hz Sync to mains

Other Output Voltages : 220, 240

Topology : Line interactive

Waveform type : Sine wave

Transfer Time : 6 ms typical : 10 ms maximum


Input

Input frequency : 50/60 Hz +/- 3 Hz Auto-sensing

Input voltage range for main operations : 151 - 302 Adjustable, 160 - 286V

Number of Power Cords : 1

Other Input Voltages : 220, 240


Batteries & Runtime

Battery type : Lead-acid battery

Typical recharge time : 3hour(s)

Replacement Battery  RBC43

Expected Battery Life (years) : 3 - 5

RBC Quantity : 1

Battery Charge Power (Watts) : 169 Watts

Battery Volt-Amp-Hour Capacity : 509

Communications & Management

Interface Port(s) : RJ-45 Serial, SmartSlot, USB

Control panel : Multifunction LCD status and control console

Audible Alarm : Alarm when on battery : distinctive low battery alarm : configurable delays

Available SmartSlot™ Interface Quantity : 1


Surge Protection and Filtering

Surge energy rating : 375Joules


Physical

Maximum Height : 86MM, 8.6CM

Maximum Width : 432MM, 43.2CM

Maximum Depth : 683MM, 68.3CM

Net Weight : 42.31KG

Shipping weight : 49.73KG

Shipping Height : 254MM, 25.4CM

Shipping Width : 600MM, 60.0CM

Shipping Depth : 980MM, 98.0CM

Units per Pallet : 8.0


Environmental

Operating Temperature : 0 - 40 °C

Operating Relative Humidity : 0 - 95 %

Operating Elevation : 0 - 3048meters

Storage Temperature : -15 - 45 °C

Storage Elevation : 0 - 15240meters

Audible noise at 1 meter from surface of unit : 55.0dBA

Online thermal dissipation : 215.0BTU/hr

Conformance

Approvals : CE, EAC, EN 60950, EN/IEC 62040-1, EN/IEC 62040-2, GS Mark, IRAM, RCM, VDE, WEEE

Standard warranty : 3 years repair or replace (excluding battery) and 2 years for battery
