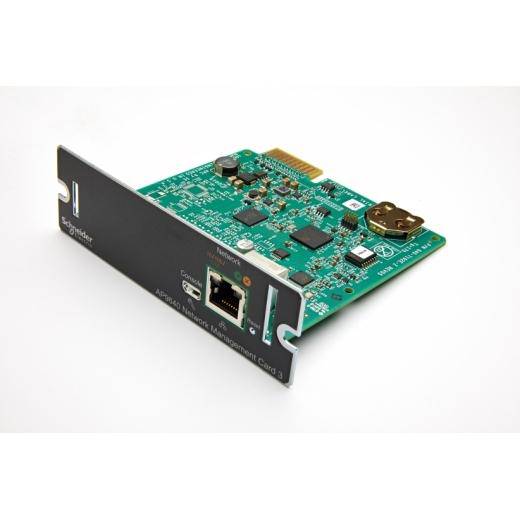

APC UPS Network Management Card 3 AP9640

APC

  • $ 499.00 SGD
  • Save $ 40.00 SGD

Share on Whatsapp

APC UPS Network Management Card 3 AP9640

  • Remote monitoring and control of an individual UPS by connecting it directly to the network.

  • Includes: USB cable, User manual



AP9640 Features


UPS Network Management Card 3
Remote monitoring and control of an individual UPS by connecting it directly to the network.
Includes: USB cable, User manual
  • BACnet/IP Support for Smart-UPS
    Supports reporting UPS information to Building Management Systems or other third party management systems via BACnet/IP (BTL certified) (Single Phase Smart-UPS only)
  • Command line interface
    Offers simultaneous remote management access through Telnet and SSH
  • Compatible with Smart-UPS
    Compatible with Smart-UPS. For complete list of supported Smart-UPS, please refer to FAQ ID br /a href="https://www.apc.com/us/en/faqs/index?page=content&id=FA237786"FA237786./a
  • Device Encryption
    Securely connect via HTTPS/SSL, SSH (up to 2048-bit encryption), SNMPv3
  • Gigabit Ethernet Support
    Supports faster Communication at 1 Gbps (Gigabit per second) over Network.
  • IPv6 Support
    Capable of operating on a network using IPv6 protocol
  • Micro-USB based Console Support
    For faster and easier Troubleshooting and Configuration.
  • Modbus TCP Support
    Supports reporting UPS information to Building Management Systems or other third party management systems via Modbus TCP.
  • Multiple language support
    Web browser interface available in English, French, Russian, Chinese, Japanese, Korean, German, Italian, Spanish, Portuguese
  • Multiple user access
    Supports simultaneous web browser access for up to 8 users and network command line interface access for up to 3 users
  • Root of Trust Support
    Supports Secure Boot with Root of Trust for enhanced Security.
  • Smart Battery Management Support
    Detailed battery information including battery cartridge parameters provides early-warning fault analysis to simplify management of the entire battery system (SRT Smart-UPS only).
  • Standard UPS RFC 1628 MIB Compatible
    Make UPS information available to your preferred network, server or enterprise management system by forwarding SNMP traps (events) using RFC 1628 MIB.
  • UPS Firmware Update
    User friendly mechanism to remotely and seamlessly update UPS firmware via the web browser interface (SMX, SMT and SRT Smart-UPS only).

UPS Network Management Cards Features & Benefits

Manageability

Data logging
Identify problematic trends before they escalate or export the data log for analysis.
Scheduled shutdown and reboot
Customize shut down and reboot of connected equipment and UPSs.
Notification
Be notified of problems to ensure crucial situations are dealt with in a timely manner.
Integrates with StruxureWare Data Center Expert
An IT-ready, scalable access monitoring system that collects, organizes, and distributes critical alerts, surveillance video and key information, providing a unified view of complex physical infrastructure environments from anywhere on the network
Event logging
Pinpoint the timing and sequence of events leading up to an incident with the event log.
Enterprise management system compatible
Make device information available to your preferred enterprise management system by forwarding SNMP traps (events) across SNMPv1 and SNMPv3 using the PowerNet MIB

Marketing features

Remote device management
Enable management of your UPS by connecting it directly to the network.
Fault notification
Real-time event notification minimizes response times to critical physical infrastructure situations. Enables IT Administrators to reduce mean time to repair, improve efficiency, and maximize uptime.

Protection

Radius support
Use an existing radius server to securely authenticate, authorize, and account for your APC device.
Password security
User-selectable password with strong password rules and reset password mechanism.
Network Shutdown
Reliable network-based shutdown of multiple servers
Multi-tier user access
Supports up to four access levels - Administrator, Device User, Read-Only User and Network-only User - with user name and password requirements.

Total cost of Ownership

Browser Accessible
View the user interface with a browser. Provides quick access from anywhere on a secure network.
Flash upgradeable firmware
Install maintenance releases of firmware remotely using FTP.

Technical Specifications

Communications & Management

Authentication
Radius

Physical

Maximum Height
1.5inches (38MM, 3.8CM)
Maximum Width
4.76inches (121MM, 12.1CM)
Maximum Depth
4.49inches (114MM, 11.4CM)
Net Weight
0.18lbs. (0.08KG)
Shipping weight
0.75lbs. (0.34KG)
Shipping Height
2.01inches (51MM, 5.1CM)
Shipping Width
9.25inches (235MM, 23.5CM)
Shipping Depth
6.26inches (159MM, 15.9CM)

Environmental

Operating Temperature
32 - 113 °F (0 - 45 °C)
Operating Relative Humidity
0 - 95 %
Operating Elevation
0 - 10000ft (0 - 3048meters)
Storage Temperature
-5 - 45 °C
Storage Relative Humidity
0 - 95 %
Storage Elevation
0 - 50000ft (0 - 15240meters)

Conformance

Approvals
AS/NZS 3548 (C-Tick) class A, EN 55022 class A, EN 55024, FCC part 15 class A, GOST, ICES-003, VCCI class A
Standard warranty
2 years repair or replace

Sustainable Offer Status

RoHS
Compliant

Documentation

Catalogs

UPS Network Management Card 3 Transition Details
Embedded and Pre-installed Network Management Card Rollout Timeline details

Brochure

UPS Network Management Card 3 Brochure
APC UPS Network Management Card 3 allows for secure remote monitoring and control of an individual UPS via a web browser, command line interface of SNMP. The configurable notification features keep you informed of problems as they occur.

Agency Approvals

Environmental Profile

EOL Policy Document

Product Comparison Between AP9640, AP9641 and AP9643

Remotely manage your UPS on your existing network with Datacenter, Building Management or Industrial Automation Systems using the UPS Network Management Card 3. Remote management can save time and money with the ability to reboot hung devices restoring functionality without deploying personnel.





Features Benefit

AP9640

AP9640 UPS Network Management Card 3

AP9641

AP9641 UPS Network Management Card 3 with Environmental Monitoring

AP9643

AP9643 UPS Network Management Card 3 with Environmental Monitoring and Modbus Support

SNMP Management (v1/v2/v3) Monitor and manage your UPS as one of your network devices
over your preferred Enterprise Network Management System by
forwarding SNMP traps (events) across SNMP (v1/v2/v3) using the
PowerNet MIB.
Data Event Logging Identify problematic trends and take appropriate action before they
escalate or export logs for analysis
IPv6 Support Ready to support the next generation of IP networking with the
trending Internet of Things (IoT) and Industrial IoT.
Smart Battery Management (SRT and SRTL
Smart-UPS Only)
Manage and maintain entire battery system with detailed battery
information, even battery cartridge parameters, providing early fault
warning. Helps you plan preventative battery maintenance.
User-Friendly Firmware Upgrade Capability Install maintenance releases off firmware remotely to your NMC or
UPS* ensuring ongoing remote management of your UPS. *SMT,
SMTL, SMX, SRT, SRTL models*
BACnet/IP and Modbus TCP Support Integrate your UPS to existing networks with 3rd party Building
Management System and Industrial Automation Systems
Two USB Ports Support UPS NMC firmware upgrade
USB Wi-Fi Device Compatible Providing secure wireless internet to your connected devices (UPS
and Rack PDUS). Drives operational efficiency, reducing
downstream costs and clutter from traditional cabling
Temperature and (optional) Temperature &
Humidity Monitoring AP9335T-included,
AP9335TH-optional
Monitor temperature or temperature and humidity and take
appropriate action when needed to ensure best possible
performance from your UPS
Optional Dry Contact IO Accessory
(AP9810) Support
Monitor external triggers and initiate actions or external devices
Additional Protocol Interface (4-wire Modbus
RTU)
Supports device communication on a Modbus serial line using the
RTU. This mode has greater character density.



Which model of UPS Network Management Card is supported in my UPS?



Product Line

  • UPS Network Management Card 3 - AP9640, AP9641
  • UPS Network Management Card 4 - AP9644
  • UPS Network Management Card 2 - AP9630/30CH, AP9631/31CH, AP9635/35CH
  • UPS Network Management Card 1 - AP9617, AP9618, AP9619
  • UPS Web/SNMP Card - AP9606



Network Management Card Model(s) UPS Model Note(s)
AP9640, AP9641
  • Single and Three Phase Smart-UPS with the following model prefixes:
    • SUA*
    • SUM
    • SURT
    • SURTA
    • SURTD
    • SUVT & MGE Galaxy 3500
    • SMT
    • SMTL
    • SMX
    • SRT
    • SRTL
    • SRC
    • Symmetra LX (Single phase Symmetra UPS)
  • *Note: SUA devices manufactured after 2008. With Firmware version v1.4.2 and above, supported added for some SmartUPS 3.6G models: SUA750RM1U, SUA1000RM1U, SUA750RMI1U, SUA1000RMI1U, and SUA750RMJ1UB
AP9644
  • Three Phase Galaxy UPS units:
  • Galaxy VS*
*Includes built-in network management card.

Notes:
  1. The AP9644 card is supported on the Galaxy VS from UPS firmware version 6.31.3.x.
  • The AP9644 card is backward compatible with any Galaxy VS already installed. When the card is installed after the UPS, however, a new Start-up service (WSTRTUP-VS1-A50) needs to be purchased to upgrade the UPS and the card at the customer site.
AP9630/30CH, AP9631/31CH
  • Single and Three Phase Smart-UPS with the following model prefixes:
    • SU
    • SUA
    • SUM
    • SURT
    • SURTA
    • SURTD
    • SUVT & MGE Galaxy 3500
    • SMT
    • SMX
    • SRT
    • SRC
  • Matrix UPS with UPS firmware versions Y or Z
    • MX3000
    • MX5000
  • Single phase Symmetra models:
    • Symmetra Power Array
    • Symmetra RM
    • Symmetra LX
  • Three phase Symmetra models:
    • 48kW Symmetra PX2 All-In-One*
    • 20kW Symmetra PX
    • 40kW Symmetra PX
    • 80kW Symmetra PX
    • 100kW Symmetra PX2*
    • 160kW Symmetra PX2*
  • SMX/SMT require sumx APP v5.0.3 or higher.

  • SRT models require sumx APP v6.0.7, or v6.2.0 or higher

  • *Note: This add-on option is only able to monitor the UPS, and not any power distribution. The embedded NMC within the UPS must be used to monitor any power distribution.
AP9630/30CH, AP9631/31CH, AP9635/35CH
  • Three Phase Galaxy UPS units
    • ​Galaxy 300/7000*
    • Galaxy VM
  • *Ships with AP9630 pre-installed in units manufactured post 2012. Older G7000 models require a special upgrade kit pre-2012 manufacture date.
AP9635/35CH
  • 3 Phase UPS models including:
    • Symmetra PX 250/500
    • SUVT/G500*
    • Symmetra PX 20/40/80
    • Symmetra PX2 48kW All-in-One*
    • Symmetra PX2 100/160 kW*
  •
  • Single Phase UPS models including:
    • Smart-UPS*
    • Symmetra*
  • *With AOS 6.4+ only, modem features only supported on MGE Galaxy units
  • **When using a NMC with an embedded NMC/Brain the FW file revisions must match. IE. 6.50 with 6.50, 6.8 with, 6.8, etc. Failure in doing so will cause communication alarms and display malfunction.
AP9617, AP9618, AP9619
  • Single and Three Phase Smart-UPS with the following model prefixes:
    • SU
    • SUA
    • SUM
    • SURT
    • SURTA
    • SURTD
    • SUVT*
  • Matrix UPS with UPS firmware versions Y or Z
    • MX3000
    • MX5000
  • Single phase Symmetra models:
    • Symmetra Power Array
    • Symmetra RM 6K/12K
    • Symmetra LX
  • Three phase Symmetra models:
    • 20kW Symmetra PX All-In-One
    • 40kW Symmetra PX
    • 80kW Symmetra PX
    • 100kW Symmetra PX2**
    • 160kW Symmetra PX2**
  • Silcon
  • *Note: SUVT model UPSs with v7.X.X firmware should use NMC2 to take advantage of all UPS firmware enhancements.

**Note: This add-on option is only able to monitor the UPS, and not any power distribution. The embedded NMC within the UPS must be used to monitor any power distribution.
AP9606
  • Older UPS models including:
    • Smart-UPS with the following model prefix:
      • SU
      • SUA
    • Symmetra Power Array
    • Symmetra RM 6K/12K
    • Matrix UPS with UPS firmwares Y or Z
      • MX3000
      • MX5000
    • 40kW Symmetra PX
    • 80kW Symmetra PX
  • Silcon


-->
