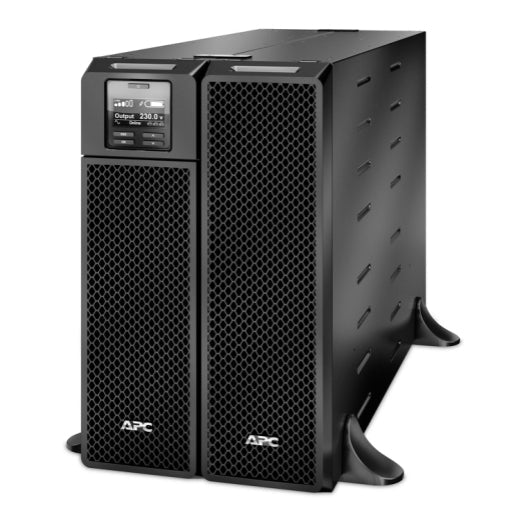

APC Smart-UPS SRT 5000VA 230V (SRT5KXLI)

Save 3%
APCSKU: SRT5KXLI
No reviews
American Express Apple Pay Google Pay GrabPay Mastercard PayNow PayPal Visa

Price:
Sale price$ 5,775.29 SGD Regular price$ 5,950.00 SGD

Description

APC Smart-UPS SRT 5000VA 230V (SRT5KXLI)

  • High density, double-conversion on-line power protection with scalable runtime.

  • Includes: CD with software, Communication cable, Documentation CD, Installation guide, Removable support feet, Temperature probe, USB cable, Warranty card, Web/SNMP

SRT5KXLI Features

Run time for load

Min-max: 450-4500 W
Output power capacity
4.5kWatts / 5.0kVA

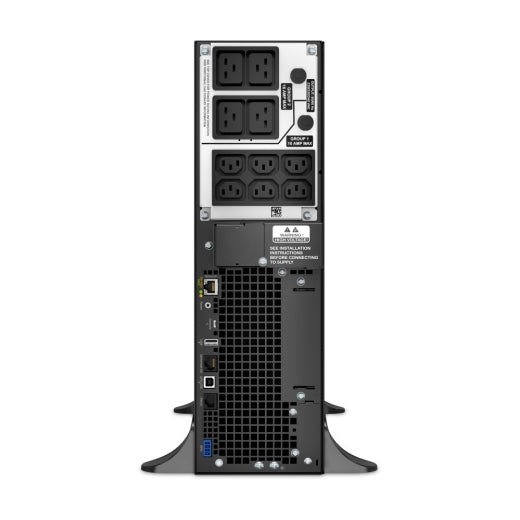

Output Connections
(4) IEC 60320 C19 (Battery Backup)
(6) IEC 60320 C13 (Battery Backup)
(2) IEC Jumpers (Battery Backup)

Nominal Output Voltage
230V

Nominal Input Voltage
230V

Input Connections
Hard wire 3-wire (1P + N + E)

  • Battery failure notification
    Provides early-warning fault analysis on batteries enabling timely preventive maintenance
  • Green mode
    Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
  • LCD graphics display
    Text and mimic diagrams that display modes of operation, system parameters and alarms.

Smart-UPS On-Line Features & Benefits

Serviceability

Predictive failure notification.
Provides early-warning fault analysis ensuring proactive component replacement.

User-replaceable batteries
Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)

Audible alarms
Provides notification of changing utility power and UPS power conditions

Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.

Disconnected battery notification
Warns when a battery is not available to provide backup power.

Marketing features

Save time with easy and convenient remote/network accessibility.
Network manageable via serial, USB or Ethernet. Includes Powerchute® Software for convenient monitoring and control, safe operating system shutdown, and innovative energy management capabilities.

Avoids costly power problems by keeping your IT equipment and data protected and available .
Network grade power conditioning protects from damaging surges and disruptive noise. The double conversion architecture provides tight voltage regulation, frequency regulation ,and zero transfer time to battery during power events.

Low operating and maintenance costs with proven reliability and intelligent battery management .
Intelligent battery management, pioneered by APC, maximizes battery performance and life through intelligent, precision temperature compensated charging. Automatic self tests insure battery reliability and warn customers in advance of battery replacement. Convenient, easy to connect, hot-swappable battery modules provide battery replacement without powering down.

Peace of mind that comes with full equipment compatibility and reliability of a leader
Provides pure sine wave output which is recommended by server manufacturers using active power factor corrected (PFC) power supplies. Safety agency tested and approved means that you can deploy Smart-UPS with confidence that they meet or exceed the industry’s most rigorous standards.

Protection

Power conditioning
Protects connected loads from surges, spikes, lightning, and other power disturbances.

Resettable circuit breaker
Easy recovery from overloads; no need to replace a fuse. (Not available on Wall Tap SKUs)

Input power factor correction
Minimizes installation costs by enabling the use of smaller generators and cabling.

Cold-start capable
Provides temporary battery power when the utility power is out.

Frequency and voltage regulation
Gives higher application availability by correcting poor frequency and voltage conditions without using the battery.

Generator compatible
Ensures clean, uninterrupted power to protected equipment when generator power is used.

Safety-agency approved
Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.

Availability

Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging.

Scalable runtime
Allows additional run time to be quickly added as needed.

Temperature-compensated battery charging
Prolongs battery life by regulating the charge voltage according to battery temperature.

Automatic internal bypass
Supplies utility power to the connected loads in the event of a UPS power overload or fault.

Automatic restart of loads after UPS shutdown
Automatically starts up the connected equipment upon the return of utility power.

Hot-swappable batteries
Ensures clean, uninterrupted power to protected equipment while batteries are being replaced

Manageability

InfraStruXure Manager Compatible
Enables centralized management via the APC InfraStruXure Manager.

Network manageable
Most models provide remote power management options of the UPS over the network. Many do not have NMC embedded.

Serial connectivity
Provides management of the UPS via a serial port.

Intelligent Card Slot
Customize UPS capabilities with management cards.

LED status indicators
Quickly understand unit and power status with visual indicators.

Adaptability

Rack/Tower convertible
Protects the initial investment in the UPS when migrating from tower to rack-mount environment.

Flash upgradeable firmware
Install maintenance releases of firmware remotely using FTP.

Plug-and-Play external batteries
Ensures clean, uninterrupted power to the loads when adding extra runtime to the UPS.

Product Distribution

United Arab Emirates, Afghanistan, Antigua and Barbuda, Anguilla, Albania, Armenia, Netherlands Antilles, Angola, Argentina, Austria, Australia, Aruba, Azerbaijan, Bosnia and Herzegovina, Barbados, Belgium, Burkina Faso, Bulgaria, Bahrain, Burundi, Benin, Bermuda, Bolivia, Brazil, Bahamas, Botswana, Belarus, Belize, Canada, The Democratic Republic Of Congo, Switzerland, Côte d'Ivoire, Chile, Cameroon, Colombia, Costa Rica, Serbia and Montenegro, Cyprus, Czech Republic, Germany, Djibouti, Denmark, Dominica, Dominican Republic, Algeria, Ecuador, Egypt, Eritrea, Spain, Ethiopia, Finland, Fiji, France, Gabon, United Kingdom, Grenada, Georgia, French Guiana, Ghana, Gambia, Guadeloupe, Greece, Guatemala, Guyana, Hong Kong, Honduras, Croatia, Haiti, Hungary, Indonesia, Ireland, Israel, Iraq, Iceland, Italy, Jamaica, Jordan, Kenya, Cambodia, Saint Kitts And Nevis, South Korea, Kuwait, Cayman Islands, Kazakhstan, Lebanon, Saint Lucia, Liberia, Lithuania, Luxembourg, Latvia, Morocco, Madagascar, Macedonia, Mali, Myanmar, Mongolia, Martinique, Mauritania, Malta, Mauritius, Malawi, Mexico, Malaysia, Mozambique, Namibia, Nigeria, Nicaragua, Netherlands, Norway, New Zealand, Oman, Panama, Peru, Philippines, Pakistan, Poland, Puerto Rico, Portugal, Paraguay, Qatar, Reunion, Romania, Russia, Rwanda, Saudi Arabia, Sweden, Singapore, Slovenia, Slovakia, Sierra Leone, Senegal, Somalia, Suriname, El Salvador, Turks And Caicos Islands, Togo, Thailand, Tajikistan, Turkmenistan, Tunisia, Turkey, Trinidad and Tobago, Taiwan, Tanzania, Ukraine, Uganda, United States, Uruguay, Uzbekistan, Saint Vincent And The Grenadines, Venezuela, U.S. Virgin Islands, Vietnam, Yemen, Mayotte, South Africa, Zambia, Zimbabwe



Technical Specifications

Output

Max Configurable Power (Watts)
4.5kWatts / 5.0kVA

Output Voltage Distortion
Less than 2 %

Output Frequency (sync to mains)
50/60 Hz +/- 3 Hz Sync to mains

Other Output Voltages
220 V, 240 V

Load Crest Factor
3 : 1

Topology
Double conversion online

Waveform type
Sine wave

Bypass
Internal bypass (automatic and manual)

Input

Input frequency
40 - 70 Hz Auto-sensing

Input voltage range for main operations
100 - 275 Adjustable (half load)V

Other Input Voltages
220 V, 240 V

Batteries & Runtime

Battery type
Lead-acid battery

Included Battery Modules
2

Typical recharge time
1.5hour(s)

Nominal Battery Voltage
192 V

Expected Battery Life (years)
3 - 5

RBC Quantity
1

Battery Charge Power (Watts)
560 Watts

Extendable Run Time
1

Communications & Management

Interface Port(s)
RJ-45 10/100 Base-T, RJ-45 Serial, Smart-Slot, USB

Control panel
Multifunction LCD status and control console

Audible Alarm
Audible and visible alarms prioritized by severity

Emergency Power Off (EPO)
Yes

Available SmartSlot™ Interface Quantity
1

Surge Protection and Filtering

Surge energy rating
480Joules

Physical

Maximum Height
432MM, 43.2CM

Maximum Width
130MM, 13.0CM

Maximum Depth
719MM, 71.94CM

Net Weight
54.43KG

Shipping weight
63.6KG

Shipping Height
330MM, 33.0CM

Shipping Width
610MM, 61.0CM

Shipping Depth
960MM, 96.0CM

Color
Black

Environmental

Operating Temperature
0 - 40 °C

Operating Relative Humidity
0 - 95 (Non-condensing) %

Operating Elevation
0 - 3048meters

Storage Temperature
-15 - 45 °C

Storage Relative Humidity
0 - 95 (Non-condensing) %

Storage Elevation
0 - 15240meters

Audible noise at 1 meter from surface of unit
55.0dBA

Online thermal dissipation
931.0BTU/hr

Protection Class
IP20

Conformance

Approvals
CE, CE Mark, EAC, IRAM, RCM, VDE

Standard warranty
3 years repair or replace (excluding battery) and 2 years for battery

Sustainable Offer Status

RoHS
Compliant

Proposition 65 Warning
Available in Documentation tab

Documentation
