Description
APC NetShelter 6U Low-Profile Wallmount Rack Enclosure Cabinet 230V Server Depth (AR106VI) (5 Years Manufacture Local Warranty In Singapore) - Promo Price While Stock Last

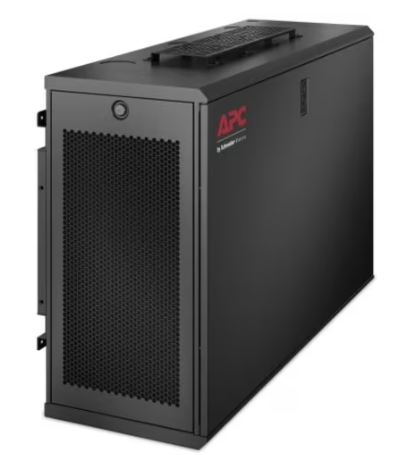

NetShelter WX 6U Low-Profile Wall Mount Enclosure 230V Fans
APC By Schneider Electric 6U Wall Mount is an innovative new way to deploy server and networking equipment at the Edge. The unique low-profile design enables large depth devices to be wall mounted in a compact and less intrusive form factor than traditional wall mount cabinets. It can ship pre-integrated with APC Smart UPS battery backup, NetBotz Physical and Environmental Security, and EcoStruxure IT, our cloud-based remote monitoring platform to stay connected at the Edge!
Air filtration and ventilation

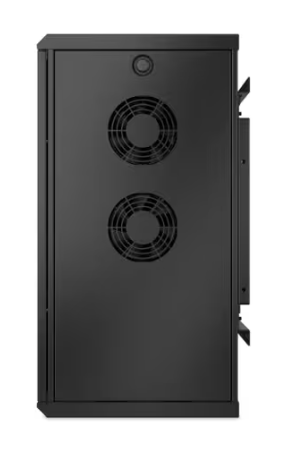

Replaceable MERV 5/G3 dust filter and integrated fans allow equipment to be placed in dusty and light industrial environments
Enhanced physical security
Protect against physical and environmental threats with camera monitoring, keylock doors, intrusion detection, temperature/humidity monitoring, leak detection, and more
High weight load capacity
Supports equipment up to 250lbs (113kg) of total load
Integrator Ready
Shock Packaging allows all equipment to be pre-integrated into the enclosure before it arrives on-site, speeding up and standardizing deployments
Low-Profile Design
Extends less than 13" (330mm) off of the wall while supporting equipment up to 30" (762mm) deep, including 1 and 2U hyperconverged servers, UPS, and network switches
Wall mount or floor standing
The detachable wall bracket and optional casters allow the enclosure to be mounted on the wall or floor, depending on the site requirements
- Rack Cabinet allows quick and easy retrieval of your items with better organising and feasible mounting
- Comes in black colour for an elegant and fashionable look
- Wall mountable rack cabinet significantly increases the aesthetic appeal of your room with improved safety
- Networking application, usage for your items, valuables, equipment organisational, storage, placement convenience and ease
- Side-to-side Airflow feature for better items, valuables, equipment organisational, storage, placement reliance
Specification
Presentation | APC By Schneider Electric 6U Wall Mount is an innovative new way to deploy server and networking equipment at the Edge. The unique low-profile design enables large depth devices to be wall mounted in a compact and less intrusive form factor than traditional wall mount cabinets. It can ship pre-integrated with APC Smart UPS battery backup, NetBotz Physical and Environmental Security, and EcoStruxure IT, our cloud-based remote monitoring platform to stay connected at the Edge! |
---|
Product or component type | Rack enclosure |
---|---|
Main Input Voltage | 230 V |
Input Connection Type | IEC 60320 C13 |
Number of rack unit | 6U |
Height | 64.8 cm |
---|---|
Width | 35.3 cm |
Depth | 96.8 cm |
Net weight | 36.29 kg |
Colour | Black |
Mounting support | Wall |
Mounting preference | No preference |
Mounting mode | Not rack-mountable |
Mounting position | Vertical |
Maximum mounting depth | 76.2 cm |
minimum mounting depth | 76.2 cm |
Rack width | 19" |
Permanent permissible load | 113.4 kg dynamic 113.4 kg static |
Network frequency | 50 Hz |
---|
Standards | UL 2416 |
---|
air flow | 103.8 l/s |
---|
Unit Type of Package 1 | PCE |
---|---|
Number of Units in Package 1 | 1 |
Package 1 Height | 42.7 cm |
Package 1 Width | 73.4 cm |
Package 1 Length | 106.4 cm |
Package 1 Weight | 44.91 kg |
Warranty | 5 year repair or replace |
---|
