APC Easy UPS SRV 2000VA 230V (SRV2KI)

Save 7%
APCSKU: SRV2KI
No reviews
American Express Apple Pay Google Pay GrabPay Mastercard PayNow PayPal Visa

Price:
Sale price$ 978.82 SGD Regular price$ 1,050.00 SGD

Description

APC Easy UPS SRV 2000VA 230V (SRV2KI)

  • High quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditions.

SRV2KI Features

Run time for load

Min-max: 160-1600 W
Output power capacity
1.6kWatts / 2.0kVA

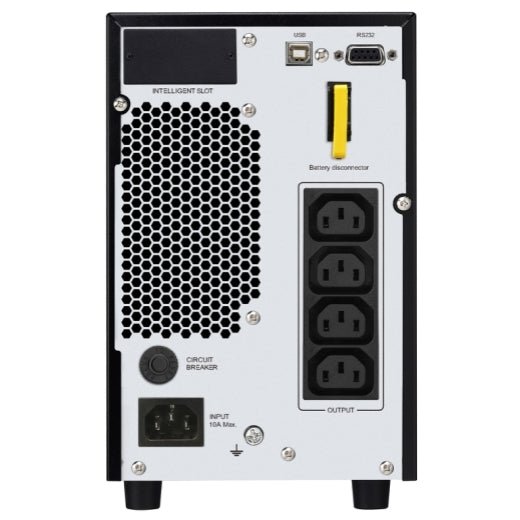

Output Connections
(4) IEC 320 C13 (Battery Backup)
(4) IEC 60320 C13 (Battery Backup)

Nominal Output Voltage
230V

Nominal Input Voltage
230V

Input Connections
IEC 60320 C14

Cord Length
1.5meters

  • Automatic internal bypass
    Pure static bypass switch without bridging contactor securing a fast and reliable transfer to and from bypass, rated for 125% nominal load.
  • Automatic restart of loads after UPS shutdown
    Automatically starts up the connected equipment upon the return of utility power.
  • ECO Mode
    Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection
  • Input power factor correction
    Minimizes installation costs by enabling the use of smaller generators and cabling.
  • Intelligent battery management
    Maximizes battery performance, life, and reliability through intelligent, precision charging.
  • Intelligent Card Slot
    Customize UPS capabilities with management cards.
  • LCD graphics display
    Text and mimic diagrams that display modes of operation, system parameters and alarms.
  • Serial connectivity
    Provides management of the UPS via a serial port.
  • USB connectivity
    Provides management of the UPS via a USB port (not available on all models).

Easy UPS On-Line Features & Benefits

Features

ECO Mode
Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection

Generator compatible
Ensures clean, uninterrupted power to protected equipment when generator power is used.

High efficiency
High efficiency rates that remain stable even at lower operating power levels

Input power factor correction
Minimizes installation costs by enabling the use of smaller generators and cabling.

Safety-agency approved
Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.

Allows the user to manage the UPS functions, schedule automatic shutdown and monitor the power grid occurrences through an interactive interface that ensures an easy and intuitive monitoring.
Management Software

Double conversion on-line topology
Guarantees a consistently high level of power quality. Any disturbances on the distribution waveform are regenerated via the zero transfer time AC to DC then DC to AC conversion process. The battery is only used as a back-up source.

Pure sine wave output on battery
Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.

Intuitive LCD interface
Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.

Management Software
Allows you to easily monitor your utility power and manage your UPS.

Manageability

Network manageable
Most models provide remote power management options of the UPS over the network. Many do not have NMC embedded.

Serial connectivity
Provides management of the UPS via a serial port.

Intelligent Card Slot
Customize UPS capabilities with management cards.

LCD graphics display
Text and mimic diagrams that display modes of operation, system parameters and alarms.

LED Indicators
Provide easy-to-read status of the unit and utility power conditions.

Availability

Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging.

Serviceability

Predictive failure notification.
Provides early-warning fault analysis ensuring proactive component replacement.

Audible alarms
Provides notification of changing utility power and UPS power conditions

Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.

Disconnected battery notification
Warns when a battery is not available to provide backup power.

Product Distribution

United Arab Emirates, Afghanistan, Albania, Armenia, Netherlands Antilles, Angola, Austria, Australia, Azerbaijan, Bosnia and Herzegovina, Belgium, Burkina Faso, Bulgaria, Benin, Bolivia, Botswana, Belarus, The Democratic Republic Of Congo, Switzerland, Chile, Cameroon, Colombia, Serbia and Montenegro, Cyprus, Czech Republic, Germany, Denmark, Dominica, Algeria, Estonia, Egypt, Spain, Finland, France, Gabon, United Kingdom, Georgia, French Guiana, Gambia, Guadeloupe, Greece, Hong Kong, Croatia, Hungary, Indonesia, Ireland, Israel, Iraq, Iceland, Italy, Jordan, Kenya, Cambodia, South Korea, Kazakhstan, Lebanon, Saint Lucia, Sri Lanka, Liberia, Lithuania, Luxembourg, Latvia, Morocco, Madagascar, Macedonia, Myanmar, Mongolia, Martinique, Mauritania, Malta, Mauritius, Malawi, Malaysia, Namibia, Nigeria, Netherlands, Norway, New Zealand, Oman, Peru, Philippines, Pakistan, Poland, Portugal, Romania, Saudi Arabia, Sweden, Singapore, Slovenia, Slovakia, Sierra Leone, Senegal, Togo, Thailand, Tajikistan, Turkmenistan, Tunisia, Turkey, Ukraine, Uzbekistan, Vietnam, South Africa, Zambia, Zimbabwe

Technical Specifications

Output

Max Configurable Power (Watts)
1.6kWatts / 2.0kVA

Output Voltage Note
Configurable for 220 : 230 or 240 nominal output voltage

Efficiency at Full Load
88.0 %

Output Voltage Distortion
3 %

Output Frequency (sync to mains)
50/60 Hz +/- 3 Hz Sync to mains

Other Output Voltages
220 V, 240 V

Load Crest Factor
3 : 1

Topology
Double conversion online

Waveform type
Sine wave

Bypass
Internal bypass (automatic and manual)

Input

Input frequency
40 - 70 Hz Auto sensing

Input voltage range for main operations
110 - 285 Half load, 160 - 280 Full loadV

Number of Power Cords
1

Efficiency at Full Load
88.0 %

Other Input Voltages
220 V, 240 V

Batteries & Runtime

Battery type
Lead-acid battery

Typical recharge time
4hour(s)

Nominal Battery Voltage
48 V

Replacement Battery
RBCV204

Expected Battery Life (years)
3 - 5

Battery Charge Power (Watts)
70 Watts

Communications & Management

Interface Port(s)
DB-9 RS-232, USB

Control panel
Multifunction LCD status and control console

Audible Alarm
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

Surge Protection and Filtering

Surge energy rating
600Joules

Physical

Maximum Height
238MM, 23.8CM

Maximum Width
145MM, 14.5CM

Maximum Depth
400MM, 40.0CM

Net Weight
16.8KG

Shipping weight
18.1KG

Shipping Height
355MM, 35.5CM

Shipping Width
235MM, 23.5CM

Shipping Depth
525MM, 52.5CM

Color
Black

Environmental

Operating Temperature
0 - 40 °C

Operating Relative Humidity
0 - 95 (Non-condensing) %

Operating Elevation
0 - 3000meters

Storage Temperature
-20 - 50 °C

Storage Relative Humidity
0 - 95 (Non-condensing) %

Storage Elevation
0 - 15000meters

Audible noise at 1 meter from surface of unit
50.0dBA

Online thermal dissipation
745.0BTU/hr

Protection Class
IP20

Conformance

Approvals
CE, EAC, TISI, UKCA

Standard warranty
2 years repair or replace

Sustainable Offer Status

RoHS
Compliant

Documentation

Manuals and Warranties

Physical Security Recommendations for Hardware Devices



SCHNEIDER ELECTRIC SAFETY GUIDE - EASY UPS On-Line

Schneider Electric Safety Guides for Easy UPS On-Line products use only

Easy UPS On-Line SRV SRV1KI/SRV2KI/SRV3KI (IEC, -BR, -AR) User Guide
User manual contains instructions for installation, operation, and troubleshooting of the product.
