Logitech TAP IP Graphite 952-000085

(2 Years Manufacture Local Warranty In Singapore)

✨ Make video meetings simple to join
with a network-connected touch controller. ✨

Deliver one-touch join, calendar integration, instant content sharing, and a consistent experience across meeting rooms. With a sleek design, silent operation, and motion sensor for always-on readiness, Tap brings ease and convenience to video collaboration.

PAIRS WELL WITH PARTNERS

Enable easy and effective meetings for onsite and remote workers. Tap IP and the Logitech suite of room solutions integrate with leading video conferencing services for a seamless meeting experience.

JUST THE RIGHT PRESENCE

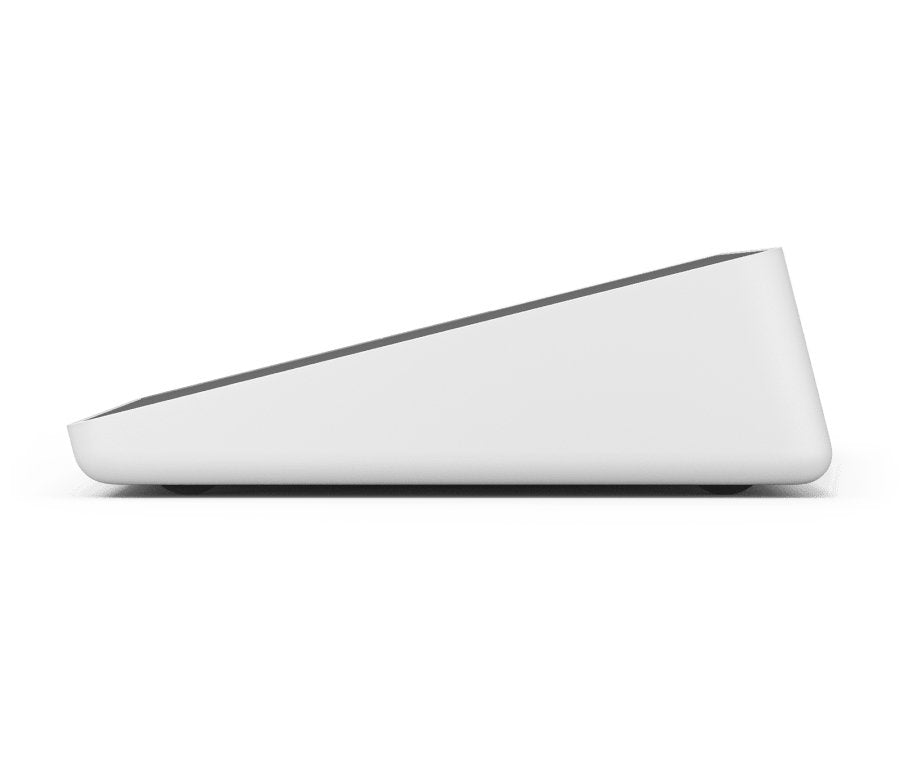

With a spacious 10.1” display, low profile, and motion sensor for always-on readiness, Tap IP has a sleek and unobtrusive presence in the room.

SIMPLE AND SECURE CABLING

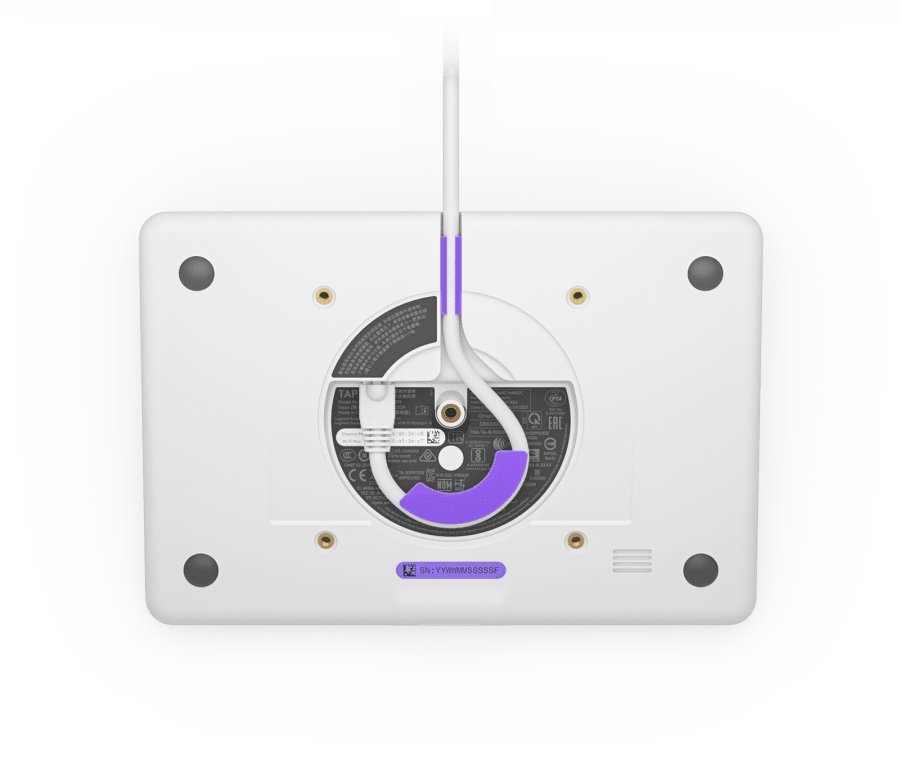

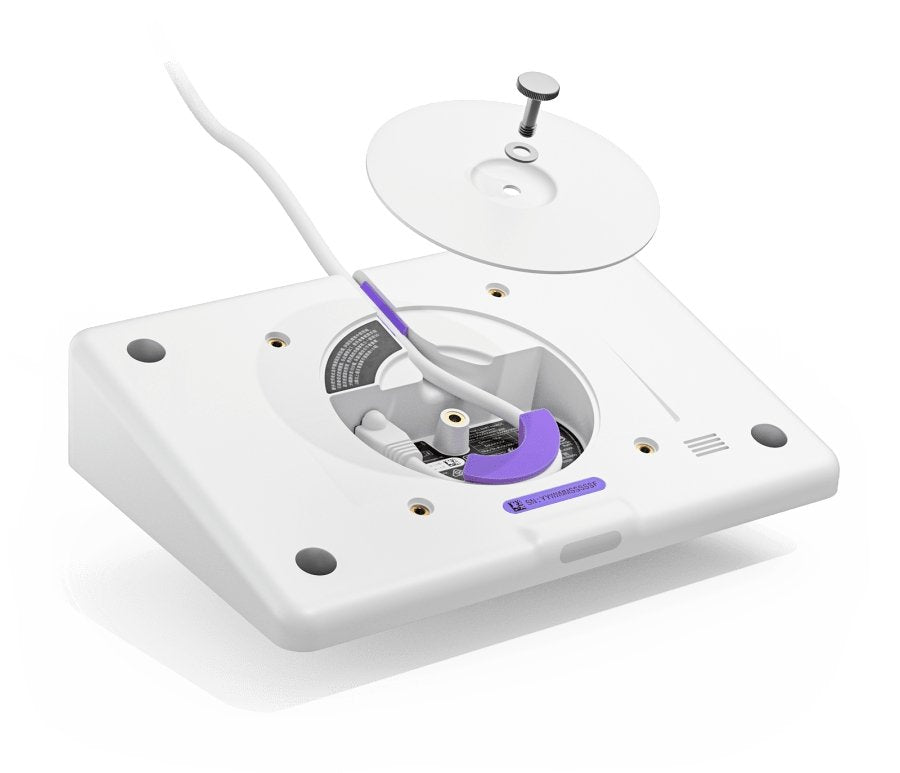

Streamline setup with a single cable that can be routed through the back or below the device. Keep connections tight with built-in strain relief and retention mechanisms.

MULTIPLE MOUNTING OPTIONS

Install Tap IP almost anywhere in the room with Table and Riser Mounts that fit standard table grommets and rotate 180° for visibility and convenience. Or save table space in small rooms with the Wall Mount.

SINGLE CABLE SIMPLICITY

With a single Power over Ethernet cable, place Tap IP conveniently near room participants for a tidy and professional install.

MAKE THE MOST OF YOUR SPACE

Easily add Tap Scheduler to a variety of meeting rooms, from phone booths to video rooms to hangout nooks, helping employees quickly find the right meeting location. Simple installations and an intuitive user experience drive fast deployment and adoption.

PICK YOUR PLATFORM

Enable a seamless meeting experience through Tap Scheduler and Logitechs suite of room solutions, which integrate with Microsoft Teams, Zoom Rooms, and other service providers to raise the bar on collaboration.

SIMPLE TO MANAGE WITH LOGITECH SYNC

With Logitech Sync, you can monitor and manage Tap Scheduler along with your other meeting room devices from one single platform.

UP TO THREE-YEAR WARRANTY

Purchasing an extended warranty. Not available in all countries. Contact your reseller. offers security and peace of mind that comes with knowing your Logitech video collaboration room systems and devices are protected against defects for up to five years from the purchase date. Extended warranties are available for either one year or three years beyond the original Logitech manufacturer’s two-year warranty.

TECHNICAL SPECIFICATIONS

• • DIMENSIONS

    Height: 56.1 mm

    Width: 246.2 mm

    Depth: 171.3 mm

    Weight: 1 kg

  • TECHNICAL SPECIFICATIONS

    Screen

    • Size: 10.1” diagonal
    • IPS (In-Plane Switching)
    • LCD Panel with LED Backlighting
    • Resolution: 1280 x 800 resolution
    • Touch: Capacitive, 10 points multi-touch
    • Brightness: 400 nits
    • Contrast: 1000:1
    • Anti Fingerprint: Oleophobic coating
    • Viewing angle: 85 degrees (U/D/L/R)
    • Position angle: 14 degrees

    GENERAL SPECIFICATIONS

    • Integrated ultrasonic speaker
    • Integrated PIR Motion Sensor
    • Integrated accelerometer
    • Integrated ambient light sensor

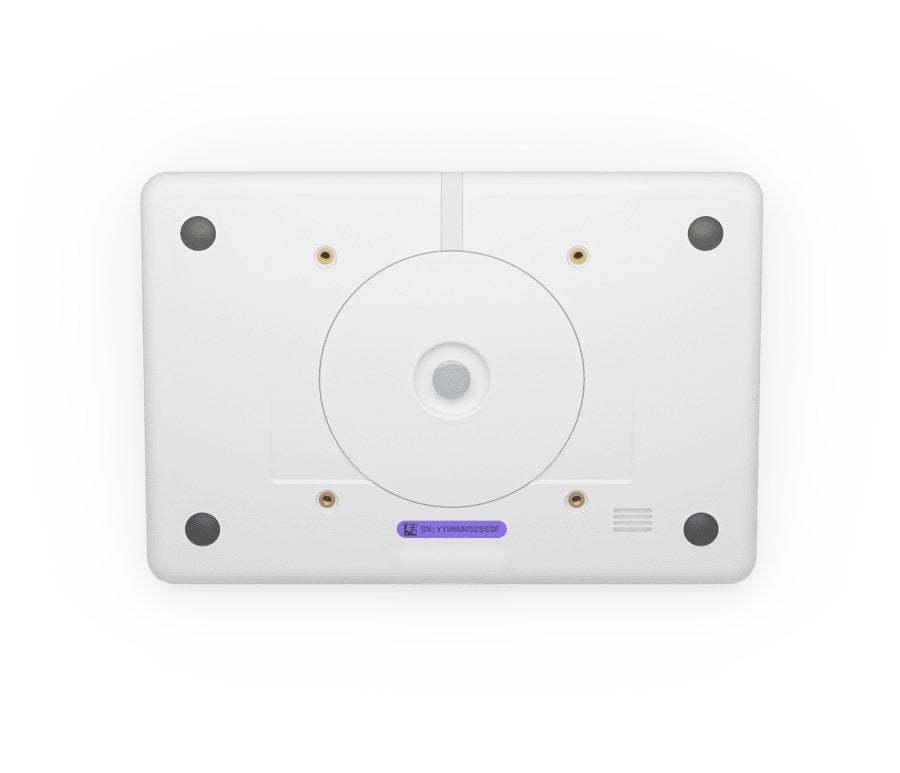

    • 100 mm x 100 mm VESA FDMI
    • Internal cable retention and strain relief system

    COMPATIBILITY AND CERTIFICATIONS

    • Logitech Tap IP is certified or compatible as a touch controller for video conferencing room solutions
      • Microsoft Teams Rooms on Android on Logitech Rally Bar, Rally Bar Mini or RoomMate
      • Zoom Rooms (any)
      • RingCentral Rooms™
    • See www.logitech.com/support/tap-compatibility for the latest certification and compatibility updates.
    • Logitech CollabOS platform
    • Logitech Sync Remote Management

    Power and Cables

    • Power over Ethernet (PoE), IEEE 802.3af Type 1, Class 3 device. ⁴Requires PoE enabled network or PoE Injector and ethernet cable (Not included)

    PORTS AND INTERFACES

    • Ethernet: 10/100 Mbps
    • WiFi: 802.11a/b/g/n/ac
    • Bluetooth 5.0

    Environmental

    • Operating Temperature: 0 to 40°C
    • Stored Temperature: -40 to 70°C
    • Humidity: 10 to 95%

    Security

    • Full Disk Encryption: AES-128
    • Data Encryption: Symmetric Keys, PKI
    • Device Identity: Protected by device attestation
    • Key Protection: Arm TrustZone, RPMP
    • Device Security: Kensington Lock

    Optional Accessories

    • Riser Mount
    • Table Mount
    • Wall Mount

  • PACKAGE CONTENTS

    • Tap IP Touch Controller
    • Documentation

WARRANTY INFORMATION

PART NUMBER

White: 952-000088
Graphite: 952-000085

PDF

• Logitech Tap IP (952-000085) Datasheet
• Logitech Tap IP Setup Guide

Review

• Logitech Tap Review – Meetings at your Fingertips - UC Today
• Logitech's New Tap Solves Videoconferencing Control Woes - PCMag

Optional Mounting Accessories

• Logitech Tap Table Mount (939-001811)
• Logitech Tap Riser Mount (939-001814)
• Logitech Tap Wall Mount (939-001817)
• Logitech PC Mount (939-001825)

• Logitech Strong USB cable:
• 10m cable included
• 25m cable optional

	LOGITECH TAP TABLE MOUNT Swiveling table mount with cable management	LOGITECH TAP RISER MOUNT Elevated table mount with swivel and cable management	LOGITECH TAP WALL MOUNT Space-saving wall mount with cable management
Display Angle	14°	30°	14°
180° Swivel	Yes	Yes	—
Through-Grommet Cabling	Yes	Yes	—
In-Wall Cabling	—	—	Yes
HDMI Cable Clip	—	—	Yes
Recommended For	Small & Medium Rooms	Medium and Large Rooms	Huddle Rooms and Hallways

Suitable Logitech ConferenceCam to use

• Logitech BCC950 (960-000939)
• Logitech Connect (960-001035)
• Logitech Meetup 4K (960-001101)
• Logitech PTZ Pro 2 (960-001184)
• Logitech Group (960-001054)
• Logitech Rally 4K (960-001226)
• Logitech Rally System 4K (960-001237)
• Logitech Rally Plus System 4K (960-001242)

Accessories

• Logitech Tap (939-001796)

Other Brand ConferenceCam to use

• Poly™ (Polycom) Studio 7200-85830-102
• Jabra™ Panacast Conferencing Camera 180° Panoramic 4K UHD (8100-119)
