LOGITECH TAP With Cat5E Kit 939-001950
(2 years Local Warranty in Singapore)

Deliver one-touch join, calendar integration, instant content sharing, and a consistent experience across meeting rooms. With a sleek design, silent operation, and motion sensor for always-on readiness, Tap brings ease and convenience to video collaboration.

MEETING ROOM TOUCH CONTROLLER FOR VIDEO CONFERENCING ROOM SOLUTIONS

ROOM SOLUTIONS WITH LOGITECH TAP

Video conferencing room solutions with Logitech Tap deliver calendar integration, touch-to-join, instant content sharing, and always-on readiness. Pre-configured with room-optimized software from Google, Microsoft, or Zoom, Logitech Room Solutions include all necessary components: Tap touch controller, small form factor computer, in-wall rated cabling, and Logitech MeetUp or Rally conference camera.

• DIMENSIONS

  • Height x Width x Depth:
  • 2.3 in (58mm) x 9.6 in (244 mm) x 7.0 in (179 mm)

  • Weight: 2.75 lbs (1.25 kg)

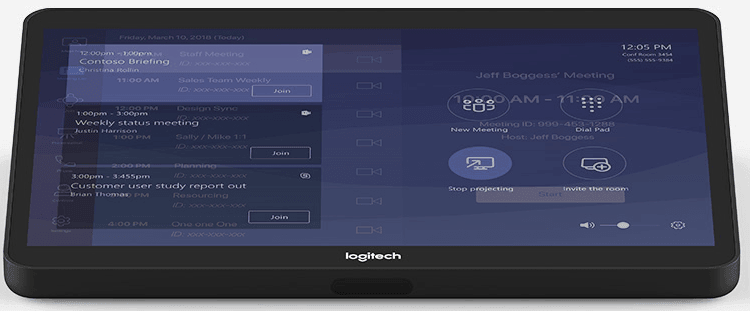

  Touch Screen

  • 10.1” diagonal screen with 14° display angle
    Oleophobic and anti-glare coating
    1280 x 800 resolution



  SYSTEM REQUIREMENTS

  • Windows 10
  • Chrome OS 75 and higher
  • USB 2.0, 3.0, or 3.1 Type A port

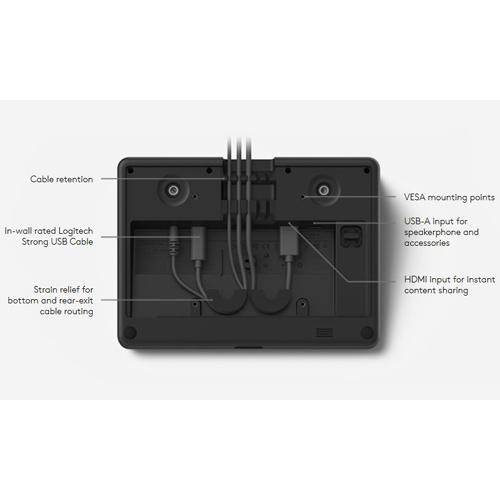

  Ports and Interfaces

  • USB 2.0/3.0/3.1 Type C (to PC)
  • USB 2.0/3.0/3.1 Type A (for accessory connection)
  • HDMI input (for 1080p video + audio content sharing)
  • 3.5mm / ⅛ “ 4 pole Headset Jack



TECHNICAL SPECIFICATIONS

General Specifications

PACKAGE CONTENTS

WARRANTY INFORMATION

PART NUMBER

Logitech Tap SKU: 939-001796

Video

Logitech Tap Meeting Room Setup and Features w/Microsoft Teams

Learn How to Tap Into Better Meetings with Logitech Room Solutions for Microsoft

PDF

• Logitech Tap (939-001796) Datasheet
• Logitech Tap Setup Guide
• Logitech Tap Quick Reference Card - Zoom Rooms
• Logitech Tap Quick Reference Card - Microsoft Teams
• Logitech Tap Quick Reference Card - Google Meet

Review

• Logitech Tap Review – Meetings at your Fingertips - UC Today
• Logitech's New Tap Solves Videoconferencing Control Woes - PCMag

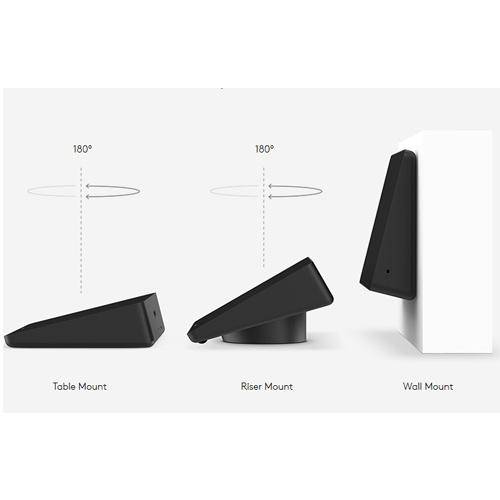

Optional Mounting Accessories

• Logitech Tap Table Mount (939-001811)
• Logitech Tap Riser Mount (939-001814)
• Logitech Tap Wall Mount (939-001817)
• Logitech PC Mount (939-001825)



• Logitech Strong USB cable:
• 10m cable included
• 25m cable optional



	LOGITECH TAP TABLE MOUNT Swiveling table mount with cable management	LOGITECH TAP RISER MOUNT Elevated table mount with swivel and cable management	LOGITECH TAP WALL MOUNT Space-saving wall mount with cable management
Display Angle	14°	30°	14°
180° Swivel	Yes	Yes	—
Through-Grommet Cabling	Yes	Yes	—
In-Wall Cabling	—	—	Yes
HDMI Cable Clip	—	—	Yes
Recommended For	Small & Medium Rooms	Medium and Large Rooms	Huddle Rooms and Hallways

Suitable Logitech ConferenceCam to use

• Logitech BCC950 (960-000939)
• Logitech Connect (960-001035)
• Logitech Meetup 4K (960-001101)
• Logitech PTZ Pro 2 (960-001184)
• Logitech Group (960-001054)
• Logitech Rally 4K (960-001226)
• Logitech Rally System 4K (960-001237)
• Logitech Rally Plus System 4K (960-001242)

Accessories

• Logitech Tap (939-001796)

Other Brand ConferenceCam to use

• Poly™ (Polycom) Studio 7200-85830-102
• Jabra™ Panacast Conferencing Camera 180° Panoramic 4K UHD (8100-119)
