Eaton 9SX 3000IR Rack2U UPS 9103-83962

  • $ 1,868.00 SGD
  • Save $ 156.00 SGD

Share on Whatsapp

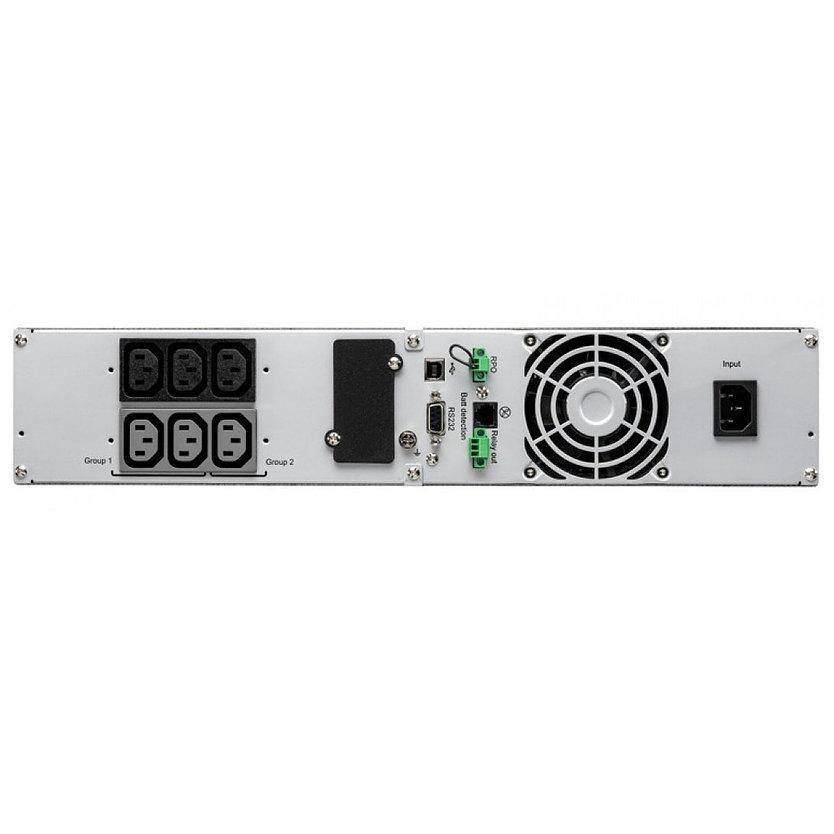

Eaton 9SX 3000IR Rack2U UPS 9103-83962

Technical specifications
Rating (VA/W) : 3000VA/2700W
Format : Rack


Electrical characteristics
Technology : On-line double-conversion with Power Factor Correction (PFC) system
Nominal Voltage : 200/208/220/230/240V
Input Voltage Range : 200-276V without derating (up to 140-276V with derating)
Input Frequency Range/THDI : 40-70Hz, 50/60Hz autoselection, frequency converter mode

Connections
Input : 1 x IEC C20 (20A)
Outputs : 8 x IEC C13 (10A) sockets + 1 x IEC 19 (16A) socket
Switched Outlet Group : 2 outlet groups


Communication
Communication ports : 1 USB port + 1 serial RS232 port + 1 mini-terminal block for Remote Power Off
1 mini-terminal block for Output relay
Communication slot : 1 slot for Network-M2, Network-MS, ModBus-MS or Relay-MS cards


Operating Conditions, Standards and approvals
Operating temperature : 0 to 40°C
Typical noise level : 45dB
EMC : IEC/EN 62040 -2, FCC Class B, CISPR22 Class B
Approvals & marking : CE/CB report (TUV)/cULus/EAC/RCM/BIS (Tower models only)/KCC (Tower models only)
Dimensions (H x W x D, mm) : Rack 86.5 x 438 x 608
Weight (kg) : 26.5

-->
