Description
Lenovo Thinkpad Thunderbolt 3 Workstation Dock Gen 2 40ANY230UK
(3 Years Manufacture Local Warranty In Singapore)
Unlock more ways to be productive with the new generation of workstation dock. The ThinkPad Thunderbolt 3 Workstation Dock Gen 2 turns your ThinkPad Mobile Workstation into a productivity powerhouse, adding support for multi 4K displays, optimised one cable charging, a slew of expansion ports, and advanced network manageability features.
Hardware Compatibility
Thunderbolt Split Cable:
Connection with Mobile Workstation Host through Thunderbolt Split Cable
Connection with Thunderbolt Host through Thunderbolt Split Cable
For the latest updates on the compatible systems, refer to one of the following:
USB-C port with Thunderbolt Split Cable:
For the latest updates on the compatible systems, refer to one of the following:
- Dock Finder - Find a compatible docking station for your Lenovo laptop
- Lenovo Smart Find
- Accessories Compatibility Guide
For more information on non-Lenovo systems, click: Dock Guidelines and Troubleshooting when connected to Non-Lenovo systems

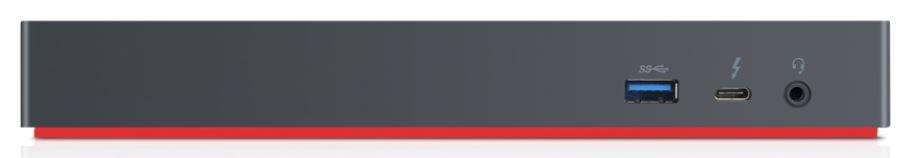

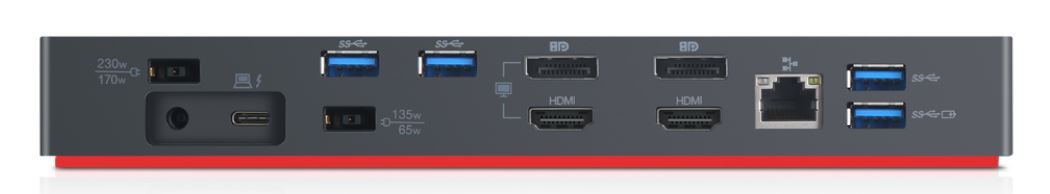

Ports and Security
- Docking Interface:
- USB-C and Slim Tip
- Video Ports:
- Two DisplayPort
- Two HDMI
- One Thunderbolt 3 DownStream Port (video/data)
- USB Ports:
- Five USB 3.1 Gen 2 (1 provide always-on mobile device charging)
- Networking:
- Gigabit Ethernet Port
- Audio:
- 3.5 mm Stereo/Microphone Combo Port
- Security:
- Kensington Lock Slot
- Power:
- Slim Tip Y-Cable
- 230W Power Adapter work with Y cable
Physical Specifications
- Unpacked (approximate):
- Width: 220 mm (8.66 in)
- Depth: 80 mm (3.15 in)
- Height 30 mm (1.18 in)
- Weight: 525g (1.16)
- Operating Environment
- Relative Humidity: 5% to 95%
- Temperature: 0 degrees C (32 degrees F) to + 40 degrees C (104 degrees F)
Operating System
- Windows10 (64-bit)
Warranty
- 3 years
Shipment Group
- ThinkPad Thunderbolt 3 Workstation Dock Gen 2
- ThinkPad 230W Power Adapter and Power Cord

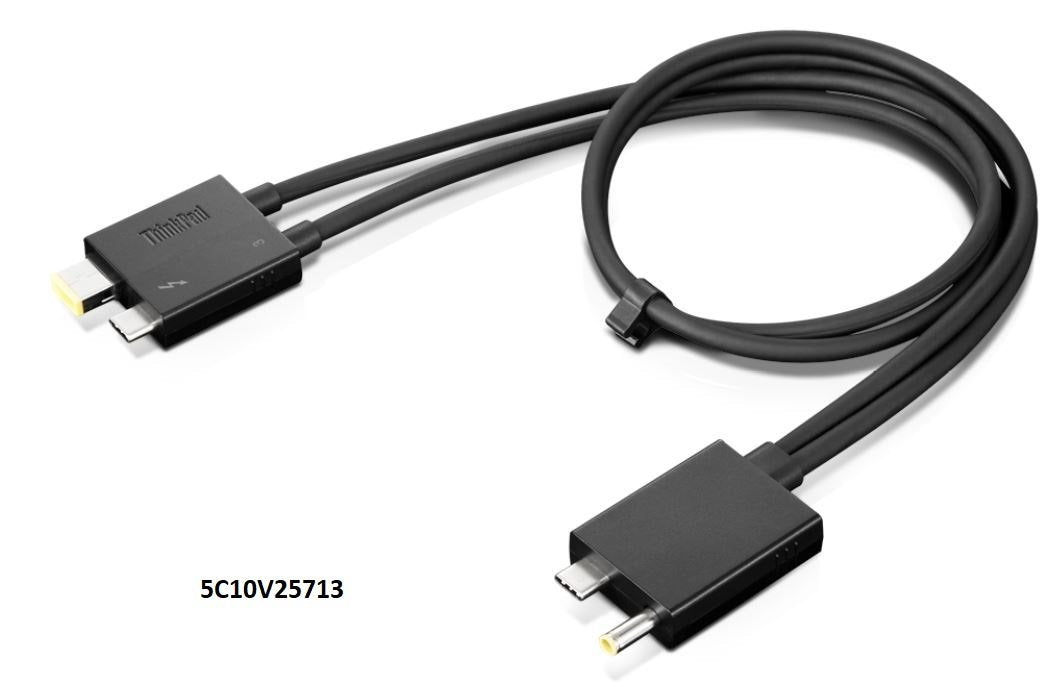

- Thunderbolt Split Cable (5C10V25713)

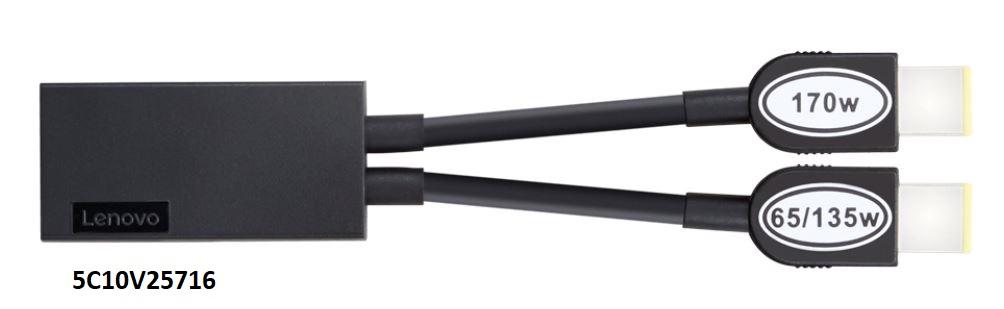

- Slim Tip Y-Cable (5C10V25716)
- Setup Guide and User Guide
Technical Specs
Power Description
| Maximum Power Supply Wattage | 170 W |
| Device Supported | Monitor/Workstation |
| Connectivity Technology | Wired |
| Compatibility |
Lenovo ThinkPad Mobile Workstation |
| Brand Compatibility | Lenovo |
| Kensington Security Slot | Yes |
General Information
| Product Type | Docking Station |
| Manufacturer Part Number | 40ANY230UK |
| Manufacturer Website Address | http://www.lenovo.com |
| Manufacturer | Lenovo Group Limited |
| Product Name | ThinkPad Thunderbolt 3 Workstation Dock Gen 2 |
| Brand Name | Lenovo |
Physical Characteristics
| Weight (Approximate) | 525 g |
| Height | 30 mm |
| Depth | 80 mm |
| Host Interface | Thunderbolt 3 |
| HDMI | Yes |
| DisplayPort | Yes |
| Number of DisplayPort Outputs | 2 |
| Number of HDMI Outputs | 2 |
| Number of USB 3.0 Ports | 5 |
| Thunderbolt | Yes |
