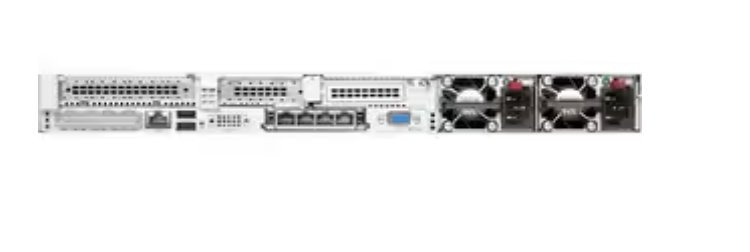

HPE Proliant DL360 Server Gen10+ Silver 4314, 32GB (P39883-B21) (3 Years Manufacture Local Warranty In Singapore)

Roll over image to zoom in Click on image to zoom

HPE Proliant DL360 Server Gen10+ Silver 4314, 32GB (P39883-B21) (3 Years Manufacture Local Warranty In Singapore)

#Hot Plug #1URack #NO HDD Onboard Server

Processor core available	16 cores
Processor cache	24 MB L3
Processor Name	Intel® Xeon® Silver 4314 (16 core, 2.4 GHz, 135W)
Processor number	1
Processor speed	2.4 GHz
Memory,	Standard 32 GB (1x 32GB) RDIMM. Total 32 Memory DIMM blanks
Memory type	HPE DDR4 SmartMemory
Persistent Memory Type	Optional: Intel® Optane™ Persistent Memory for HPE
Persistent Memory Media Capacity	Optional: 128 to 256 GB
NVDIMM type	Optional: Intel® Optane™ Persistent Memory for HPE
NVDIMM capacity	Optional: 128 to 512 GB
Infrastructure management	Included - HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download), Optional - HPE iLO Advanced, and HPE OneView Advanced
System fan features	5 Standard fans
Power supply type	1x HPE 800W Flex Slot Platinum Hot Plug Low Halogen Power Supply
Expansion Slots	2 PCIe Gen4: 1 x16 FH, 1 x16 LP
Network Controller	Broadcom BCM57416 Ethernet 10Gb 2-port BASE-T OCP3 Adapter for HPE
Storage controller	HPE Smart Array P408i-a SR (8 Internal Lanes/2GB Cache) 12G SAS Modular Controller and HPE 96W Smart Storage Lithium-ion Battery with 145mm Cable
Included hard drives	None ship standard, 8 SFF SAS/SATA drives supported
Optical drive type	Optional DVD via Universal Media Bay or USB connectivity
Security	UEFI Secure Boot and Secure Start Intel® Software Guard Extensions (SGX) support, Immutable Silicon Root of Trust. TPM Module included. Optional Trusted Supply Chain, iLO Security modes, Chassis Intrusion detection and Bezel Locking kits
Form Factor	1U Rack
Rail Kit	Easy Install w/o CMA. Notes : Server does not support shelf mounted rail kits ("L" brackets).
Warranty	3/3/3: Server Warranty includes three years of parts, three years of labor, and three years of onsite support coverage. Additional information regarding worldwide limited warranty and technical support is available at: http://h20564.www2.hpe.com/hpsc/wc/public/home. Additional HPE support and service coverage, to supplement the product warranty, is available. For more information, visit http://www.hpe.com/support

Do you need to efficiently expand or refresh your IT infrastructure to propel the business? Adaptable for diverse workloads and environments, the compact 1U HPE ProLiant DL360 Gen10 Plus server delivers enhanced performance with the right balance of expandability and density. Designed for supreme versatility and resiliency while backed by a comprehensive warranty, the HPE ProLiant DL360 Gen10 Plus server is ideal for IT infrastructure, either physical, virtual, or containerized.

The HPE ProLiant DL360 Gen10 Plus server supports the 3rd Generation Intel® Xeon® Scalable Processors with up to 40 cores, plus 3200 MT/s HPE DDR4 SmartMemory up to 4.0 TB per socket. Introducing PCIe Gen4 and Intel® Software Guard Extensions (SGX) support on the dual-socket segment, the HPE ProLiant DL360 Gen10 Plus server complements Gen10 reach by delivering premium compute, memory, I/O, and security capabilities for customers focused on performance at any cost.

Features

32 GB powerful memory for any computational task
RAID provides data reliability, fault tolerance and improves overall performance
Optimize the performance of business networks with 10 Gigabit Ethernet connectivity
1 x 800 W power supply unit (PSU) included

Specification

Miscellaneous

Security Features

UEFI Secure Boot and Secure Start support
Immutable Silicon Root of Trust
FIPS 140-2 validation
Common Criteria certification
Configurable for PCI DSS compliance
Advanced Encryption Standard (AES) and Triple Data Encryption Standard (3DES) on browser
Support for Commercial National Security Algorithms (CNSA)
iLO Security Modes
Granular control over iLO interfaces
Smart card (PIV/CAC) and Kerberos based 2-factor Authentication
Tamper-free updates - components digitally signed and verified
Secure Recovery - recover critical firmware to known good state on detection of compromised FW
Ability to rollback firmware
Secure erase of NAND
TPM (Trusted Platform Module)
Bezel Locking Kit

Network & Communication

Ethernet Technology

10 Gigabit Ethernet

Operating System

Chipset

Chipset Manufacturer	Intel
Chipset Model	C621A

Storage

Optical Drive Type	No
Total Hard Drive Capacity	No

Controllers

Controller Type	12Gb/s SAS
RAID Supported	Yes
Controller Model	P408i-a/2GB

Display & Graphics

Graphics Memory Capacity	16 MB
Graphics Memory Technology	DDR4 SDRAM
Graphics Memory Accessibility	Shared

Power Description

Plug/Connector Type	C13/C14
Number of Power Supplies Supported	2
Number of Power Supplies Installed	1
Hot Swappable Power Supply	Yes
Maximum Power Supply Wattage	800 W

I/O Expansions

"Number of Internal 2.5"" Bays"	8
Number of Total Expansion Bays	8
Number of Total Expansion Slots	2
Hot Swappable Bays	Yes
PCI Express x16 (Gen 3.x) Slots	2
Number of SFF Bays	8

Interfaces/Ports

VGA	Yes
Number of Network (RJ-45) Ports	1
Network (RJ-45)	Yes
Remote Management	Yes
Number of USB 3.0 Ports	5
Number of VGA Ports	1
Remote Management Controller	HPE iLO 5

Physical Characteristics

Weight (Approximate)	18.11 kg
Form Factor	Rack
Rack Height	1U
Height	42.9 mm
Width	434.6 mm
Depth	741.9 mm

General Information

Product Type	Server
Manufacturer Part Number	P39883B21
Manufacturer Website Address	http://www.hpe.com
Manufacturer	Hewlett Packard Enterprise
Product Name	ProLiant DL360 Gen10 Plus Server
Product Line	ProLiant
Product Series	DL360 G10 Plus
Brand Name	HPE

Processor

Processor Speed	2.40 GHz
Processor Type	Xeon Silver
Processor Model	4314
Processor Core	Hexadeca-core (16 Core)
Processor Manufacturer	Intel
Number of Processors Supported	2
Number of Processors Installed	1
Processor Generation	3rd Gen

Memory

Error Checking	ECC
Maximum Memory Supported	2 TB
Signal Processing	Registered (Buffered)
Standard Memory	32 GB
Memory Technology	DDR4 SDRAM
Number of Total Memory Slots	32
Number of Occupied Memory Slots	1
Intel Optane Memory Ready	Yes
Memory Clock Speed	2.93 GHz
