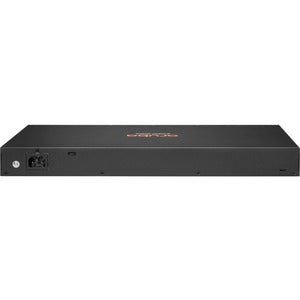

HPE Aruba 6100 24G Class4 PoE 4SFP+ 370W Switch (JL677A) (Lifetime Warranty)

HPESKU: JL677A
No reviews

Price:
Sale price$ 2,752.00 SGD

Description

HPE Aruba 6100 24G Class4 PoE 4SFP+ 370W Switch (JL677A) (Lifetime Warranty)

  • Simplify IT operations with next-gen Layer 2 switch series that provides entry level, reliable, and convenient wired access connectivity.
  • Right size with 12, 24, and 48 port 1U models with convenient built-in 1/10 GbE uplinks and up to 740W of Class 4 PoE.
  • Silent deployment with compact and fanless 12 port PoE model.
  • Flexibility to manage and simplify configurations with Aruba Central, Aruba NetEdit, easy to use Web GUI, or industry standard CLI.
  • Software defined ready with REST APIs.
  • Layer 2 feature set with static routing and switch software embedded with no subscription required to enable.

Key Features

Entry Level Aruba CX Access Layer Switches

The Aruba CX 6100 Switch Series offers gigabit connectivity with high speed uplinks and optional PoE to provide entry level, reliable, and convenient wired access connectivity for enterprise branch office and SMB networks.

Using Aruba AOS-CX operating system across Aruba CX switching platforms and deployment domains provides a simpler, more consistent operator experience.

Fully-managed enterprise class switches deliver Layer 2 capabilities with support static routing, ACLs, robust QoS, traffic prioritization, sFlow, and IPv6 support.

Right size deployment with choice of 12, 24, and 48 port 1U models with convenient built-in 1/10 GbE uplinks and up to 740W of Class 4 PoE.

Simplifies ownership with no switch software licensing or subscriptions required.

Performance and Power

The Aruba CX 6100 Switch Series is designed with Aruba ASICs that deliver very low latency, increased packet buffering, and adaptive power consumption.

Deploy wireless access points and IoT devices with Aruba CX 6100 switch models that support up to740W IEEE 802.3at Class 4 Power over Ethernet for up to 30W per port.

Four built-in wire speed 1/10GbE uplinks eliminate bottlenecks at the access layer where users and devices connect.

Simplified Configuration and Management

The Aruba CX 6100 Switch Series provides flexibility to manage and simplify configurations with Aruba Central, Aruba NetEdit, easy to use Web GUI, or industry standard CLI.

Aruba NetEdit introduces automation that allows for rapid network-wide changes and verifies policy conformance post network updates.

Manage via single pane of glass with Aruba Central across wired, wireless, and WAN.

Reduce manual IT operation tasks around initial deployment or on-going configuration changes to accommodate adds, moves, and changes with colorless ports using local user roles and local-MAC-Authentication (LMA).

Software-defined ready with REST APIs for fine-grained programmability of network tasks.

Specification

Differentiator

The Aruba CX 6100 Switch Series delivers entry level, reliable, and convenient Layer 2 wired access connectivity ideal for branch offices, mid-market enterprise, and SMBs. This model has 24x 10/100/1000BASE-T and 4x 1G/10G SFP ports. 370W Class 4 PoE/PoE+ power.

Power consumption

Max Power (w/o PoE): 32.7W
Max Power (w/ PoE): 455W

Input voltage

100-127 VAC / 200-240 VAC

Ports

24x ports 10/100/1000BASE-T ports
4x 1G/10G SFP ports

Latency

1 Gbps: 1.5 μSec , 10 Gbps: 1.8 μSec

Switching capacity

128 Gbps

Throughput

95.2 Mpps

Memory and processor

Dual Core ARM Cortex A9 @ 1016 Mhz
4 GB DDR3, maximum, depending on model
16 GB eMMC

PoE capability

370W Class 4 PoE/PoE+

Warranty

Limited Lifetime Warranty, see https://www.arubanetworks.com/support-services/ productwarranties/ for warranty and support information included with your product purchase

Weight

9.24 lbs

Weight

4.2 kg

Dimensions

1.73 x 17.4 x 10.56 in

Dimensions

4.4 x 44.2 x 26.8 cm
