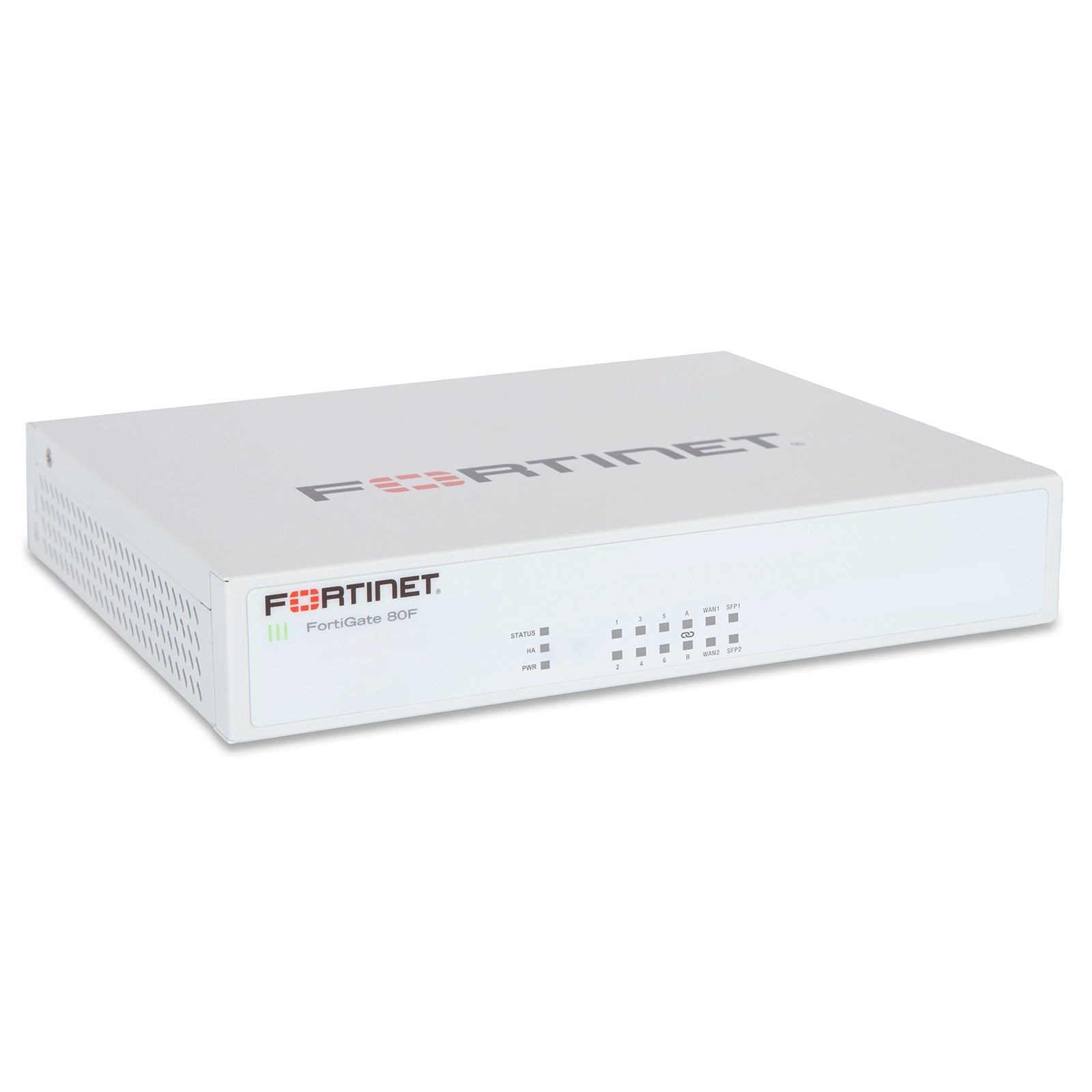

Fortinet FortiGate 80F UTP Firewall with Bundled Subscription (Local Warranty in Singapore)- Promo Price While Stock Last

FortinetSKU: FG-80F-1Y

No reviews

Subcription: 1 Years

Variant

Price:

$ 2,032.00 SGD

Quantity:

Share this product

Fortinet FortiGate 80F UTP Firewall with Bundled Subscription (Local Warranty in Singapore) -Promo Price While Stock Last

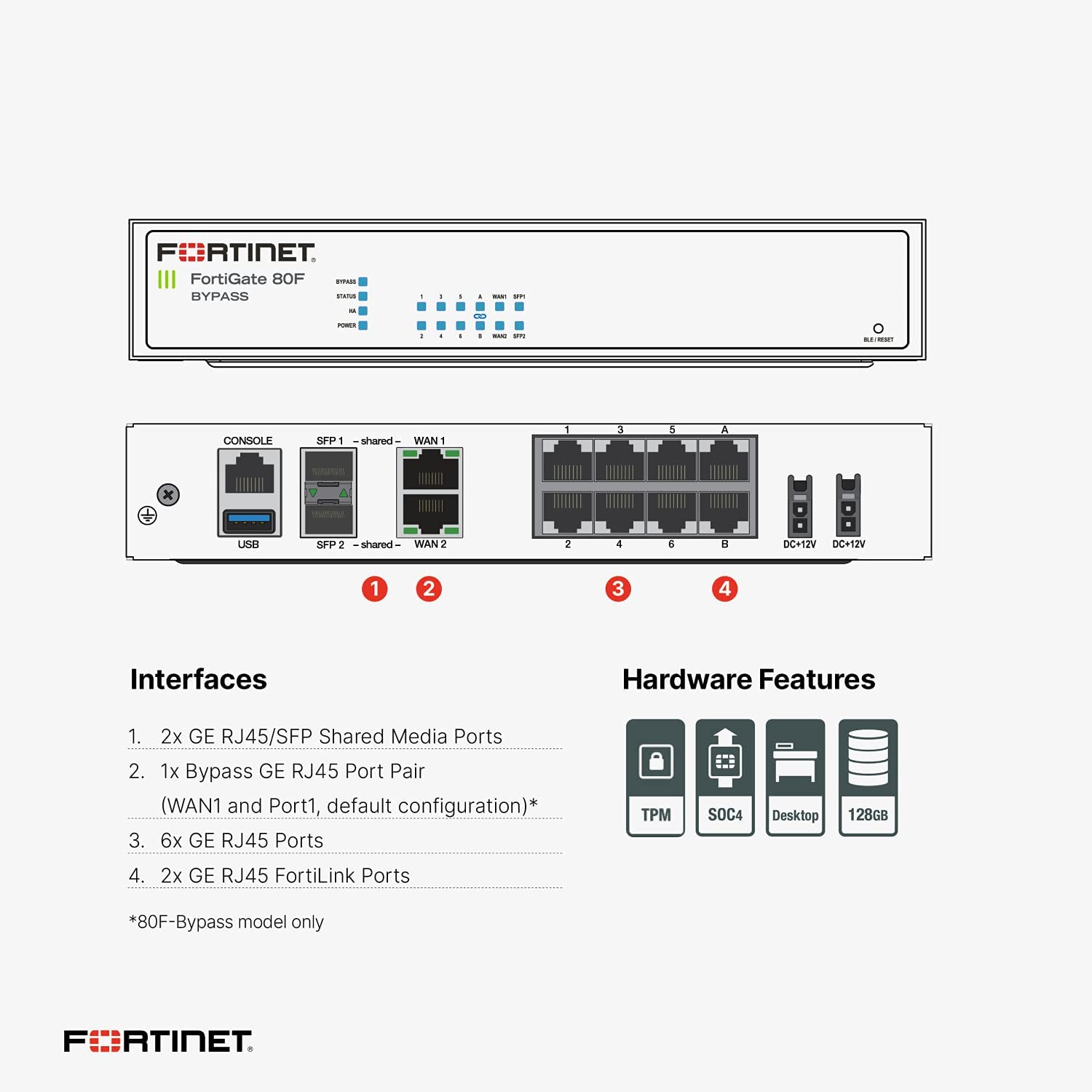

-FortiGate-80F 8 x GE RJ45 ports , 2 x RJ45/SFP shared media WAN ports.

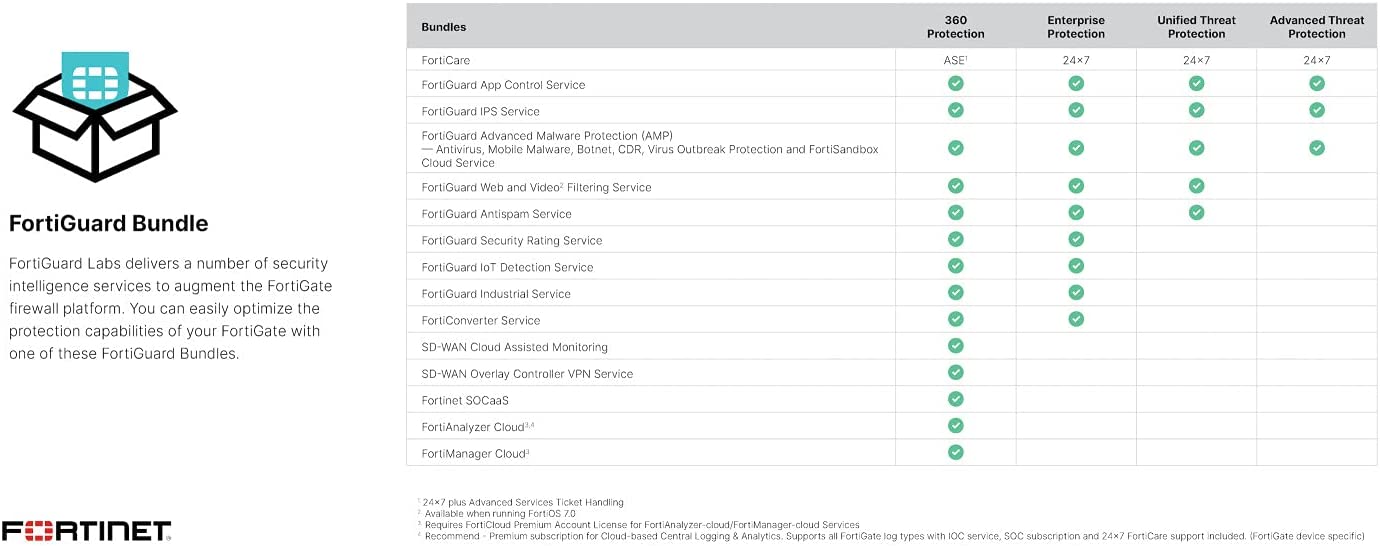

-Includes: ONE (1) Year or THREE (3) Year- Unified Threat Protection (UTP)
(IPS, Advanced Malware Protection, Application Control, Web Filtering, Antispam Service, and 24x7 FortiCare)

Win-Pro x Fortinet Promotion Terms & Conditions

Campaign validity is from 19 August 2024 to 31 December 2024.
All orders must be completed and invoiced by 31 December 2024.
This promotion applies only to run-rate stock for filling new, non-project-based requirements.
Not valid for government end-users.
Promotion is subject to stock availability.
Win-Pro reserves the right to amend the promotion and these Terms & Conditions without prior notice.

Hardware Loaner Swapping Only (OPTIONAL)

• Valid only in Singapore
• 24x7x4 24 hours, 7 days, 4 hours response (Email and phone), 4 hours onsite.
• Unlimited email, phone and remote support
• Replacement of faulty device with permanent/temporary loaner unit upon vendor approval of RMA
• Config restoration to the loaner/ replacement unit
• RMA processing and shipping to and from vendor
• Assist in transferring of FortiGuard licenses and subscription.

Fortinet is a global leader in cybersecurity, delivering a broad, integrated and automated security fabric to enable customers to accelerate their digital journey.

Fortinet is the pioneer of secure networking, delivering flawless convergence that can scale to any location: remote office, branch, campus, data center and cloud.

FortiGate is the heart of FortiOS Everywhere, providing deep visibility and security in a variety of form factors, including container firewalls, virtual firewalls, and appliances.

FortiGate/FortiWiFi® 80F Series

The FortiGate 80F series provides an application-centric, scalable, and secure SD-WAN solution in a compact, fanless, desktop form factor for enterprise branch offices and mid-sized businesses. Protects against cyber threats with system-on-a-chip acceleration and industryleading secure SD-WAN in a simple, affordable, and easy to deploy solution. Fortinet’s SecurityDriven Networking approach provides tight integration of the network to the new generation of security.

Security

Identifies thousands of applications inside network traffic for deep inspection and granular policy enforcement
Protects against malware, exploits, and malicious websites in both encrypted and non-encrypted traffic
Prevent and detect against known and unknown attacks using continuous threat intelligence from AI-powered FortiGuard Labs security services

Performance

Delivers industry’s best threat protection performance and ultra-low latency using purpose-built security processor (SPU) technology
Provides industry-leading performance and protection for SSL encrypted traffic

Certification

Independently tested and validated for best-in-class security effectiveness and performance
Received unparalleled third-party certifications from NSS Labs

Networking

Delivers advanced networking capabilities that seamlessly integrate with advanced layer 7 security and virtual domains (VDOMs) to offer extensive deployment flexibility, multi-tenancy and effective utilization of resources
Delivers high-density, flexible combination of various high-speed interfaces to enable best TCO for customers for data center and WAN deployments

Management

Includes a management console that is effective, simple to use, and provides comprehensive network automation and visibility
Provides Zero Touch Integration with Fortinet’s Security Fabric’s Single Pane of Glass Management
Predefined compliance checklist analyzes the deployment and highlights best practices to improve overall security posture

Security Fabric

Enables Fortinet and Fabric-ready partners’ products to provide broader visibility, integrated end-to-end detection, threat intelligence sharing, and automated remediation

FG-80F Specification

FG-80F Specification
Type	FORTIGATE 80F
Hardware Specifications
Interface	8 x GE RJ45 ports , 2 x RJ45/Shared media WAN ports

USB port	1
Console (RJ45)	1
Wireless Interface	-
Internal Storage	-
System Performance and Capacity
Firewall Throughput	10/10/7 Gbps
Firewall Latency (64 byte UDP Packets)	3.23 μs
Firewall Throughput (Packet per Second)	10.5 Mpps
Concurrent Sessions (TCP)	1.5M
New Sessions/Second (TCP)	45,000
Firewall Policies	5,000
IPsec VPN Throughput (512 byte)	6.5 Gbps
Gateway-to-Gateway IPsec VPN Tunnels	200
Client-to-Gateway IPsec VPN Tunnels	2500
SSL-VPN Throughput	950 Mbps
Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode)	200
SSL Inspection Throughput (IPS, avg. HTTPS)	715 Mbps
SSL Inspection CPS (IPS, avg. HTTPS)	700
SSL Inspection Concurrent Session (IPS, avg. HTTPS)	100,000
Application Control Throughput (HTTP 64K)	1.8 Gbps
CAPWAP Throughput (HTTP 64K)	9Gbps
Virtual Domains (Default / Maximum)	10 / 10
Maximum Number of FortiSwitches Supported	16
Maximum Number of FortiAPs (Total / Tunnel Mode)	96 / 48
Maximum Number of FortiTokens	500
High Availability Configurations	Active/Active, Active/Passive, Clustering
System Performance
IPS Throughput	1.4 Gbps
NGFW Throughput	1 Gbps
Threat Protection Throughput	900 Mbps
Dimensions and Power
Height x Width x Length	1.6 x 8.5 x 7.0 inches 40 x 216 x 178 mm
Form Factor	Desktop
Power Required	Powered by up to 2 External DC Power Adapter, 100–240V AC, 50–60 Hz
Maximum Current	115V AC / 0.4A, 230V AC / 0.2A
Power Consumption (Average / Maximum)	12.69W / 15.51W
Heat Dissipation	52.55 BTU/hr
Operating Environment and Certifications
Operating Temperature	32–104°F (0–40°C)
Storage Temperature	-31–158°F (-35–70°C)
Humidity	10–90% non-condensing
Noise Level	Fanless 0 dBA
Operating Altitude	Up to 7,400 ft (2,250 m)
Compliance	FCC, ICES, CE, RCM, VCCI, BSMI, UL/cUL, CB
Certifications	ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN

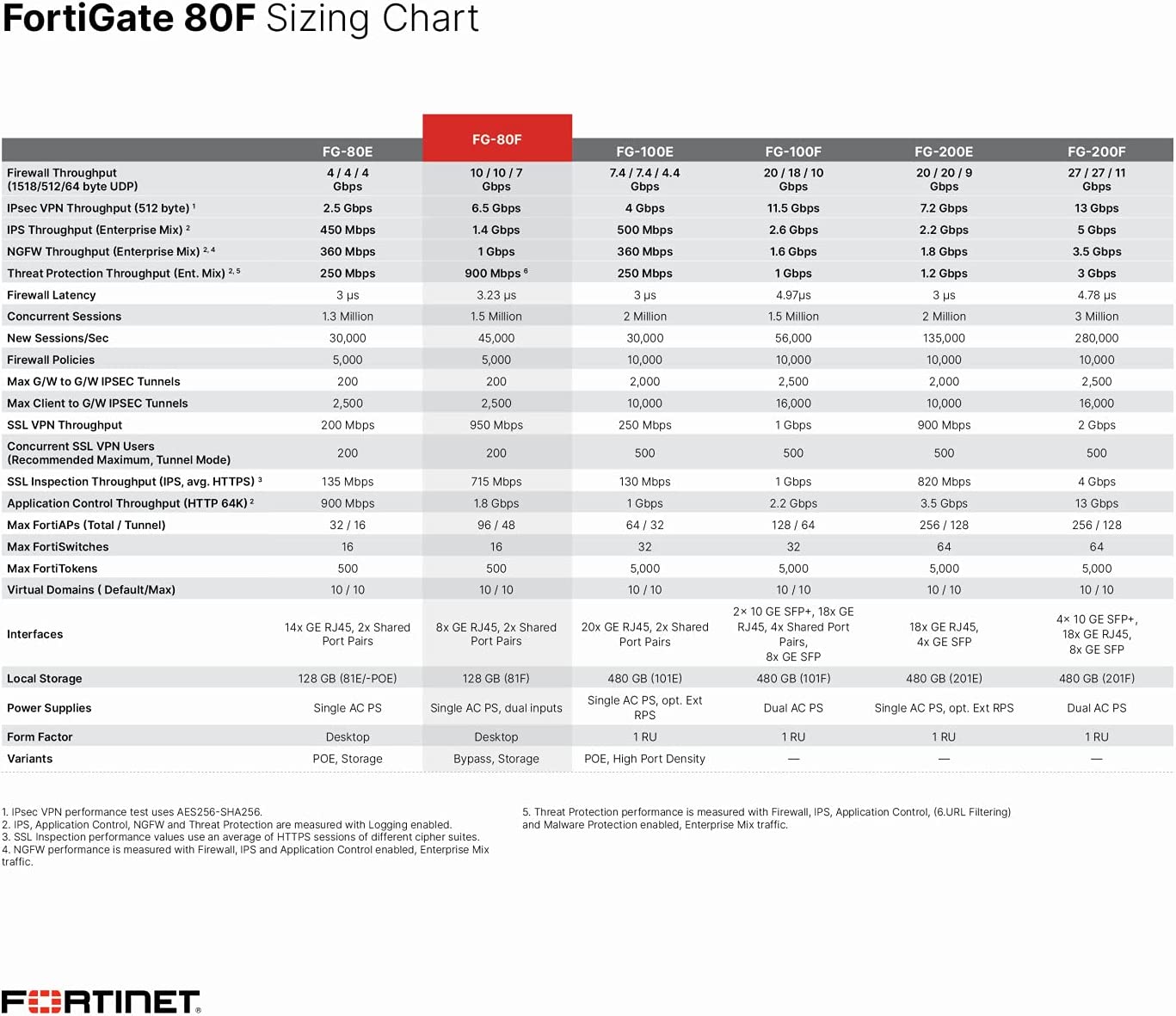

Comparison

System Specs	FortiGate 40F	FortiGate 60F	FortiGate 80F
Operating System	FortiOS	FortiOS	FortiOS
Interfaces	1xGE RJ45 WAN / DMZ Ports, 3xGE RJ45 Internal Ports, 1xGE RJ45 FortiLink Ports, 1xUSB Ports, 1xConsole (RJ45)	2xGE RJ45 WAN / DMZ Ports, 5xGE RJ45 Internal Ports, 2xGE RJ45 FortiLink Ports, 1xUSB Ports, 1xConsole (RJ45)	2xGE RJ45/SFP Shared Media Pairs, 8xGE RJ45 Internal Ports, 1xUSB Ports, 1xConsole (RJ45)
Firewall Throughput	5 Gbps	10 Gbps	10 Gbps
IPS Throughput	1 Gbps	1.4 Gbps	1.4 Gbps
NGFW Throughput	800 Mbps	1 Gbps	1 Gbps
Threat Protection Throughput	600 Mbps	700 Mbps	900 Mbps
IPSec VPN Throughput	4.4 Gbps	6.5 Gbps	6.5 Gbps
SSL VPN Throughput	490 Mbps	900 Mbps	950 Mbps
Concurrent Connections (TCP)	700,000	700,000	1.5 Million
New Connections per Sec (TCP)	35,000	35,000	45,000
Max FortiAPs	5-Oct	30 / 10	32 / 16
Max FortiSwitches	8	16	16
Max FortiTokens	500	500	500
Recommended Max SSL-VPN Users	200	200	200
Form Factor	Desktop	Desktop	Desktop
Power Supply	100–240V AC, 60–50 Hz (External DC Power Adapter, 12 VDC)	INPUT: 12VDC (powered by External DC Power Adapter, 100–240V AC, 50–60 Hz)	INPUT: 12.6W / 15.4W, (powered by 2 External DC Power Adapters, 100–240V AC, 50/60 Hz)
