Description
Apc Smart-UPS, Line Interactive, 750VA, Rackmount 2U, 230V, 4x IEC C13 outlets, SmartConnect Port+SmartSlot, AVR, LCD (SMT750RMI2UC)

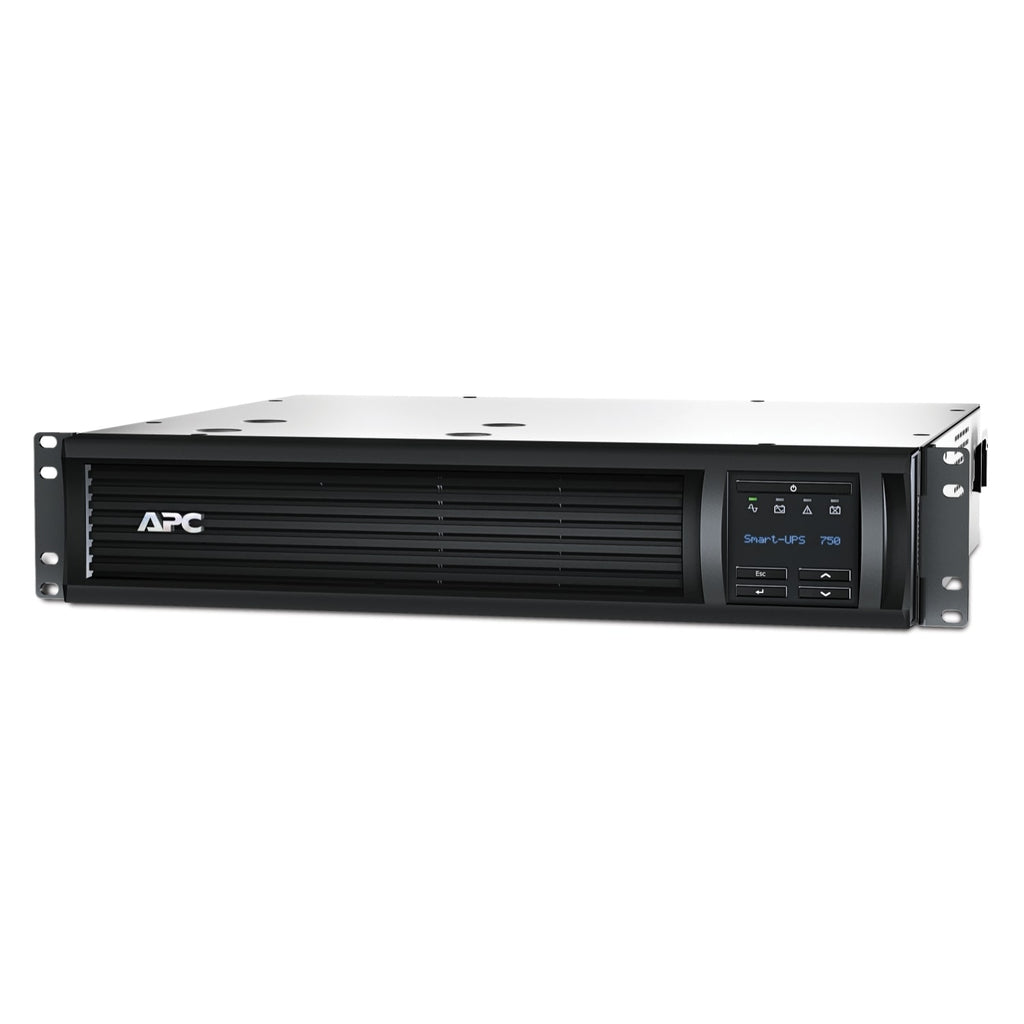

APC Smart-UPS SMT750RMI2UC is a 750VA/500W line-interactive, pure sine wave UPS in a 2U rackmount format. It provides four IEC C13 outlets, automatic voltage regulation and SmartConnect Ethernet monitoring.
Key features
- 750VA rackmount UPS — This is a 750VA/500W line-interactive pure sine wave UPS for 2U rackmount installation.

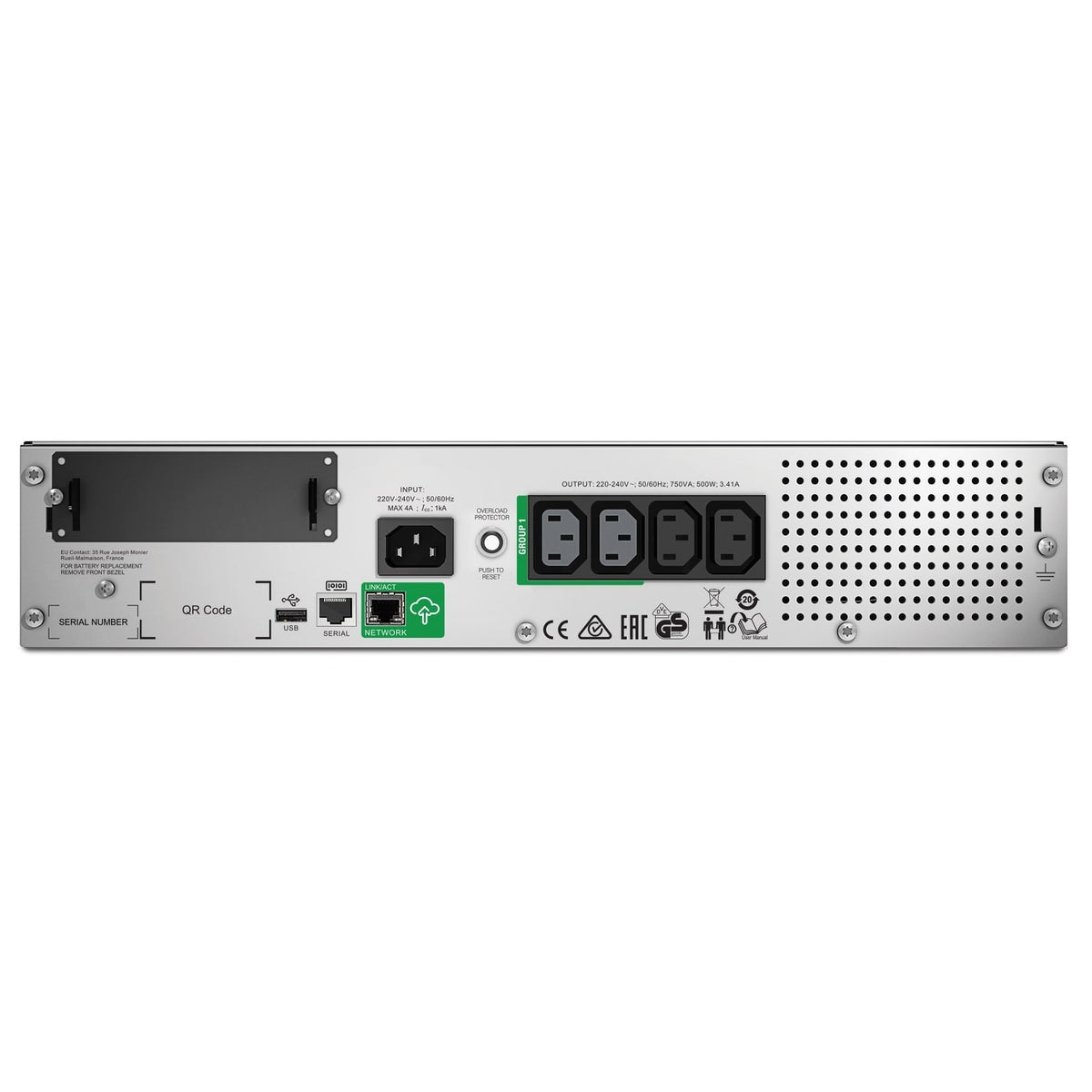

- Four IEC C13 outlets — The unit has four IEC C13 outlets.
- Automatic voltage regulation — Automatic Voltage Regulation helps correct utility voltage.
- SmartConnect monitoring — Remote power monitoring is available through the SmartConnect Ethernet port.
Specifications
| Part number | SMT750RMI2UC |
|---|---|
| Brand | Apc |
| Main input voltage | 230 V AC 1 phase |
| Output voltage | 230 V AC 1 phase |
| Rated power in W | 500 W |
| Rated power in VA | 750 VA |
| Output connection | 4 IEC 60320 C13; 2 IEC Jumpers |
| UPS topology | Line interactive |
| Battery type | Lead-acid internal included |
| Number of rack unit | 2U |
| Height | 86 mm |
| Width | 432 mm |
| Depth | 409 mm |
| Product weight | 16.6 kg |
| Input connection | IEC 60320 C14 |
| Input frequency | 50/60 Hz +/- 3 Hz auto-sensing |
| Harmonic distortion | Less than 5 % |
| Maximum configurable power in VA | 750 VA |
| Maximum configurable power in W | 500 W |
| Transfer time | 6 ms typical : 10 ms maximum |
| Waveform type | Sine wave |
| Output frequency | 50/60 Hz +/- 3 Hz sync to mains |
Frequently asked questions
How can it be monitored remotely?
It supports cloud-based remote power monitoring through the SmartConnect Ethernet port.
How is graceful shutdown performed?
Graceful shutdown uses serial or USB cables with PowerChute Serial Shutdown.
What warranty does it come with?
2-year manufacturer warranty in Singapore.
Are prices inclusive of GST?
No. All prices are shown exclusive of GST.
