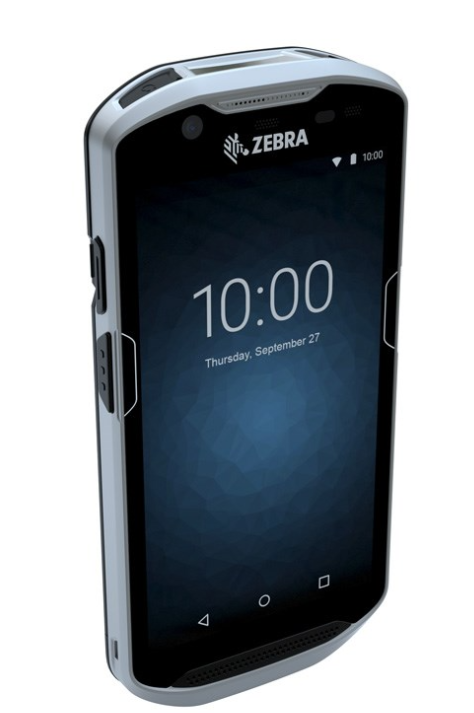

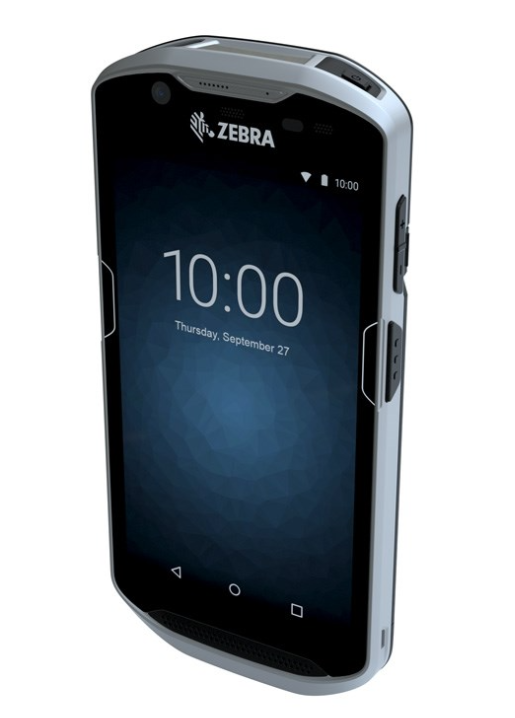

Zebra TC52ax ROW Wi-Fi 6 SE5500 4/64GB PowerPrecision Plus+ Battery 4150 mAh (1 Year Manufacture Local Warranty In Singapore)
THE ULTIMATE IN RUGGED DESIGN, PERFORMANCE, PRODUCTIVITY AND EASE OF USE
The TC5X Series builds on the best-selling TC52 and TC57 rugged handheld mobile computers, with three models that deliver the ultimate in rugged, all-touch mobile computing. The Wi-Fi only TC52x and the Wi-Fi/cellular TC57x add support for the latest mobile innovations, paving the way for new apps that deliver more value and superior future-proofing — such as payment solutions. Support for more Mobility DNA tools makes everything easier — from the user interface to device management, integration and app development. The Wi-Fi only TC52ax adds Wi-Fi 6, a new scanner option with intelligent focusing, double the memory to boost application performance and the new Workstation Connect solution that allows the TC52ax to function simultaneously as a workstation and a mobile computer. And with LifeGuard 3, keeping all TC5X devices and data secure has never been easier.1 The TC5X Series — the ultimate rugged mobile computers, redefined.
A USER EXPERIENCE IN A CLASS OF ITS OWN
Powerful advanced scanning for the fastest, easiest data capture
Available in all models, the SE4720 delivers point-and-shoot simplicity with a large ‘sweet spot’ of up to 24 in./60 cm away, and easy capture of large barcodes at close range. Available in the TC52ax, the SE55 Advanced Range Scan Engine with IntelliFocus™ technology intelligently adjusts to quickly capture barcodes in hand or over 40 ft./12 m2 away — ideal for dark stores and front-of-store micro-fulfillment centers.
The best-in-class green laser aimer is designed for the extended scanning range. It’s up to seven times more visible than a red laser. And instead of the typical aiming dot, the aiming pattern spreads out over several feet. The result? Easy and accurate point-and-shoot aiming throughout the entire scan range — even in bright sunlight. And no matter which engine you choose, with Zebra’s PRZM Intelligent Imaging Technology, you get the performance that has made Zebra the worldwide leader in barcode scanning — dependably fast first-time every-time barcode capture.
Maximize productivity with enterprise accessories
Backwards compatibility with all TC52/TC57 accessories allows you to cost-effectively upgrade to the latest technology. Support is built in for the new generation of payment solutions. And Zebra’s HD4000 head-mounted display enables new cutting edge hands-free directed-action workflows.
Easily find misplaced devices
An integrated Bluetooth beacon and support for Device Tracker allows users to quickly and easily locate misplaced or missing devices. And with support for the latest version of Device Tracker, the TC52ax can be located — even if the device is turned off or the battery is dead.
Full shift power your workers can count on
The PowerPrecision+ high capacity battery delivers up to an impressive 14 hours of power3 — plenty for the longest shift. With a two-minute Warm Swap mode, swapping batteries is fast and easy — there’s no need to turn off the device or close active apps. And with fast charging, batteries are fully charged and ready to go in record time.
SPECIFICATIONS
Physical Characteristics
|
Dimensions |
TC52x/TC52ax/TC57x with SE4720: 6.10 in. L x 2.9 in. W x 0.73 in. H 155 mm L x 75.5 mm W x 18.6 mm H TC52ax with SE55: 6.26 in. L x 2.9 in. W x 0.73 in. H 159 mm L x 75.5 mm W x 18.6 mm H |
| Weight (with battery) |
TC52x/TC57x: 8.8 oz./249 g TC5ax: (SE4720) 9.2 oz. /260 g TC5ax: (SE55) 9.4 oz./266 g |
| Display | 5.0 in. Full High Definition (1920 x 1080); LED backlight, optically bonded to touch panel |
| Imager Window | Corning® Gorilla® Glass |
| Touchpanel | Dual mode capacitive touch with stylus, bare or gloved fingertip input (stylus sold separately); Corning Gorilla Glass; water droplet rejection; fingerprint resistant anti-smudge coating |
| Power | Rechargeable Li-Ion, PowerPrecision+; > 15.48 Watt hours; > 4150 mAh, improved battery metrics for better battery management; fast charging (up to 2.4 A); Warm Swap battery mode up to two minutes (120 seconds); BLE battery optional |
| Expansion Slot | Accessible MicroSD supports up to 256 GB SDXC |
| SIM | TC57x only: 1 nano SIM; 1 eSIM |
| Network Connections | WLAN, WPAN (Bluetooth), USB 2.0, High Speed (Host and Client) |
| Notifications | Audible tone; multi-color LEDs; haptic feedback |
| Keypad | On-screen keypad and enterprise keyboard |
| Voice and Audio | Three microphones with noise cancellation; vibrate alert; front facing speaker; Bluetooth wireless headset support; high quality speaker phone; PTT headset support; cellular circuit switch voice; HD voice; Super-wideband (SWB) and Fullband (FB) audio; 3.5mm audio jack |
| Buttons | Four programmable buttons: dual dedicated scan buttons, dedicated push-to-talk button and volume up/down buttons |
Performance Characteristics
| CPU |
TC52ax: Qualcomm Snapdragon™ 660 octa-core, 2.45 GHz |
| Operating System |
TC52ax: Upgradeable to Android 14 |
| Memory | TC52ax: 4GB RAM/64GB UFS Flash |
| Security | FIPS 140-2 Validated (ISO 19790) and Common Criteria certified (ISO 15408); FIPS 140-2 cryptography can be enabled on select configurations through a custom SKU request; Supports Secure Boot and Verified Boot. |
General Certifications
| TAA compliant; ARCore Google certification sustained; Android Enterprise Recommended |
User Environment
| Operating Temp. | -4°F to 122°F/-20°C to 50°C |
| Storage Temp. | -40°F to 158°F/-40°C to 70°C |
| Humidity | 5% to 95% non-condensing |
| Drop Specifications | Multiple 6 ft./1.8 m drops to concrete with the rugged boot accessory per Mil STD 810 G; multiple 4 ft./1.2 m drops to tile over concrete -10°C to 50°C/14°F to 122°F |
| Tumble Specification | 500 1.6 ft./0.5 m tumbles, meets or exceeds IEC tumble specification |
| Sealing | IP68 and IP65 with battery per applicable IEC sealing specifications |
| Electrostatic Discharge (ESD) | +/- 15 kV air discharge; +/- 8 kV direct discharge; +/- 8 kV indirect discharge |
Interactive Sensor Technology (IST)
| Light Sensor | Automatically adjusts display backlight brightness |
| Magnetometer | eCompass automatically detects direction and orientation |
| Motion Sensor | 3-axis Accelerometer with MEMS Gyro |
| Pressure Sensor | Automatically detects altitude information for locating (TC57x only) |
| Proximity Sensor | Automatically detects when the user places the handset against head during a phone call to disable display output and touch input |
Data Capture
| Scanning |
All models: SE4720 1D/2D Scan Engine TC52ax only: SE55 Advanced Range 1D/2D Scan Engine with IntelliFocus |
| Camera | Front — 5 MP; Rear — 13 MP Phase Detection Autofocus (PDAF); flash LED generates balanced white light; Torch mode |
| NFC | ISO 14443 Type A and B; FeliCa and ISO 15693 cards; P2P mode (up to A10 only) and Card Emulation via Host; Card Emulation via UICC (WWAN terminals only) |
Wireless LAN
|
Radio |
IEEE 802.11 a/b/g/n/ac/d/h/i/r/k/v/w/mc/ax4; 2x2 MU-MIMO; Wi-Fi™ certified; Dual Band Simultaneous; IPv4, IPv6 |
| Data Rates | 5GHz: 802.11a/n/ac/ax4 — 20MHz, 40MHz, 80MHz - up to 1201 Mbps; 2.4GHz: 802.11b/g/n/ax4 — 20MHz up to 286.8 Mbps |
| Operating Channels | Channel 1-13 (2412-2472 MHz): 1,2,3,4,5,6,7,8,9,10,11,12,13 Channel 36-165 (5180-5825 MHz): 36,40,44,48,52 56,60,64,100,104,108,112,116,120,124,128,132,136, 140,144,149,153,157,161,165 Channel Bandwidth: 20, 40, 80 MHz Actual operating channels/ frequencies and bandwidths depend on regulatory rules and certification agency. |
| Security and Encryption | WEP (40 or 104 bit); WPA/WPA2 Personal (TKIP, and AES); WPA3 Personal (SAE); WPA/WPA2 Enterprise (TKIP and AES); WPA3 Enterprise (AES) — EAP-TTLS (PAP, MSCHAP, MSCHAPv2); EAP-TLS, PEAPv0-MSCHAPv2, PEAPv1-EAP-GTC, LEAP and EAP-PWD; WPA3 Enterprise 192-bit mode (GCMP-256) — EAP-TLS; Enhanced Open (OWE) |
| Certifications | Wi-Fi Alliance Certifications: Wi-Fi CERTIFIED n; Wi-Fi CERTIFIED ac; Wi-Fi CERTIFIED 6 (TC52ax only); Wi-Fi Enhanced Open; WPA2-Personal; WPA2-Enterprise; WPA3-Personal; WPA3-Enterprise (includes 192-bit mode); Protected Management Frames; Wi-Fi Agile Multiband; WMM; WMM-Power Save; WMM-Admission Control; Voice-Enterprise; Wi-Fi Direct |
| Fast Roam | PMKID caching; Cisco CCKM; 802.11r (OTA); OKC |
Wireless PAN
|
Bluetooth |
Class 2, Bluetooth v5.0 (TC52x/TC57x) and Bluetooth v5.1 (TC52ax); Bluetooth Low Energy |
Environmental Compliance
| RoHS Directive 2011/65/EU; Amendment 2015/863; REACH SVHC 1907/2006 For a complete list of product and materials compliance, please visit www.zebra.com/environment |
Warranty
|
Subject to the terms of Zebra’s hardware warranty statement, the TC52x/TC52ax/57x Series is warranted against defects in workmanship and materials for a period of 1 (one) year from the date of shipment. For complete warranty statement, please visit: |
