Description

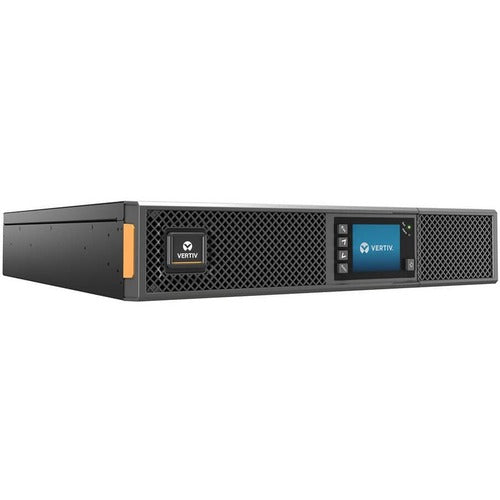

Vertiv LIEBERT GXT5 ON-LINE 1000VA 230V LCD PF1.0 2U EXTENDED RUN RACK/TOWER RAIL KIT BUNDLED GXT5-1000IRT2UXL (3 Years Manufacture Local Warranty In Singapore)
Description
Get detailed runtime information for various load levels
The Liebert® GXT5™ UPS is a single phase, online double conversion UPS solution which offers premium power outage protection and continuous power conditioning in a compact and flexible deployment system. The new Liebert® GXT5™ from Vertiv™ is an advanced version of the widely-regarded GXT UPS Series. GXT5 is ideally suited to protect critical infrastructure in both centralized and edge network applications.
Best Suited For:
- Banking, Financial and Insurance
- Data Center/Colocation/Hosting
- Education
- Government
- Healthcare
- Manufacturing
- Retail and Wholesale
- Telecom
- Transportation
Features
Available in 750VA/1/1.5/2/3kVA
Top-level on-line double conversion UPS for mission-critical application
Unity output power factor

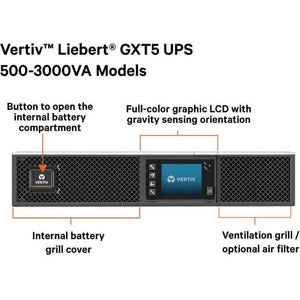

LCD multi-language color display (gravity sensing)
On-line (VFI) mode efficiency up to 94% at full load
Active ECO mode efficiency up to 98%
Energy Star 2.0 certified
Controllable and programmable output sockets
Integrated solution with batteries and electronics
External battery cabinets auto-detection
Operates at full power up to 40°C (up to 50°C with derating)
Intelligent Communication ready
Safety Agency Approved Category B IEC 61000-4-5 Surges/Lightning protection capability
Specifications
Brand Name: Vertiv
Model Name: GXT5-1000IRT2UXLActive Output Power Rating Minimum
Configuration (W) 1000
Apparent Output Power Rating Minimum
Configuration (VA): 1000
Topology (ac): Multi-Mode Double Conversion
Topology and Product Type Combined: ac – Other
Application: Commercial,Consumer,Data Center
Rated Input Voltage (V rms): 200-240
Rated Input Frequency (Hz): 50-60
Rated Output Voltage (V): 200-240
Rated Output Frequency (Hz): 50-60
Rack Mountable: Yes
Height (mm): 85
Width (mm): 430
Depth (mm): 400
Normal Mode(s) Input Dependency
Characteristic (ac):
Voltage and Frequency Dependent,Voltage and Frequency
Independent
Modular UPS: No
Number of Normal Modes: Multiple-normal-mode
Default Normal Mode (ac): Voltage and Frequency Independent
Test Input Voltage (V rms): 230
Test Input Frequency (Hz): 50
Test Output Voltage (V): 230
Test Output Frequency (Hz): 50
Total Input Power in W at 0% Load Min
Config Lowest Dependency (ac): 22.7
Efficiency at 25%
Model Name: GXT5-1000IRT2UXLActive Output Power Rating Minimum
Configuration (W) 1000
Apparent Output Power Rating Minimum
Configuration (VA): 1000
Topology (ac): Multi-Mode Double Conversion
Topology and Product Type Combined: ac – Other
Application: Commercial,Consumer,Data Center
Rated Input Voltage (V rms): 200-240
Rated Input Frequency (Hz): 50-60
Rated Output Voltage (V): 200-240
Rated Output Frequency (Hz): 50-60
Rack Mountable: Yes
Height (mm): 85
Width (mm): 430
Depth (mm): 400
Normal Mode(s) Input Dependency
Characteristic (ac):
Voltage and Frequency Dependent,Voltage and Frequency
Independent
Modular UPS: No
Number of Normal Modes: Multiple-normal-mode
Default Normal Mode (ac): Voltage and Frequency Independent
Test Input Voltage (V rms): 230
Test Input Frequency (Hz): 50
Test Output Voltage (V): 230
Test Output Frequency (Hz): 50
Total Input Power in W at 0% Load Min
Config Lowest Dependency (ac): 22.7
Efficiency at 25%
Load Min Config Lowest
Dependency (ac): 87.8
Efficiency at 50% Load Min Config Lowest
Dependency (ac): 91.4
Efficiency at 75% Load Min Config Lowest
Dependency (ac): 92.3
Efficiency at 100% Load Min Config Lowest
Dependency (ac): 92.7
Weighted Efficiency Calc Min Config Lowest
Dependency: 92.1
Efficiency (%): 92.1
Energy Storage Mechanism: Battery
Energy Storage System Technology: Valve Regulated Lead-acid Battery
Energy Storage System Configuration: Separate Enclosure
Energy Storage System Runtime at 100%
Load (min.): 6
Energy Storage System Runtime at 50%
Load (min.): 15
Energy Storage System Warranty (yrs): 3
Network Connections Available: USB Port,Ethernet
Communication Protocols: Other
Dependency (ac): 87.8
Efficiency at 50% Load Min Config Lowest
Dependency (ac): 91.4
Efficiency at 75% Load Min Config Lowest
Dependency (ac): 92.3
Efficiency at 100% Load Min Config Lowest
Dependency (ac): 92.7
Weighted Efficiency Calc Min Config Lowest
Dependency: 92.1
Efficiency (%): 92.1
Energy Storage Mechanism: Battery
Energy Storage System Technology: Valve Regulated Lead-acid Battery
Energy Storage System Configuration: Separate Enclosure
Energy Storage System Runtime at 100%
Load (min.): 6
Energy Storage System Runtime at 50%
Load (min.): 15
Energy Storage System Warranty (yrs): 3
Network Connections Available: USB Port,Ethernet
Communication Protocols: Other
