Description

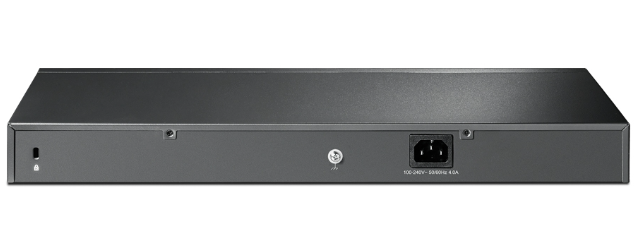

TP-LINK JetStream 24-Port 10/100Mbps + 4-Port Gigabit Smart Switch with 24-Port PoE+ (TL-SL2428P) (5 Years Manufacture Local Warranty In Singapore)
- 250 W PoE Budget: 24× 802.3at/af-compliant PoE+ ports with a total power supply of 250 W*.
- Gigabit Ports: 2× Gigabit RJ45 ports and 2× Combo Gigabit RJ45/SFP Ports provide high-speed connections.
- Integrated into Omada SDN: Zero-Touch Provisioning**, Centralized Cloud Management, and Intelligent Monitoring.
- Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
- Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.
Learn more about TP-LINK PoE technology >
Learn more about Omada Cloud SDN>
Dedicated 24 PoE+ Ports (250 W Budget) for Numerous Applications
Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 250 W PoE power budget* for the 24× 10/100Mbps PoE+ ports makes it has a wide range of applications, such as surveillance, offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, etc.
Software Defined Networking (SDN) with Cloud Access
Omada’s Software Defined Networking (SDN) platform integrates network devices, including access points, switches and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network—all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.
Hardware Specification
| Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3az, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x |
|---|---|
| Interface | • 24× 10/100/1000 Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) • 4× Gigabit SFP Slots |
| Network Media | • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m) • 1000BASE-X: MMF, SMF |
| Fan Quantity | 2 |
| Power Supply | 100-240V AC, 50/60Hz |
| PoE+ Ports(RJ45) | • Standard: 802.3at/af compliant • PoE+ Ports: 24 Ports • Power Supply: 250 W |
| PoE Ports (RJ45) | • Standard: 802.3at/af compliant • PoE+ Ports: 24 Ports • PoE Power Budget: 250 W* |
| Dimensions ( W x D x H ) | 17.3 × 8.7 × 1.73 in (440 × 220 × 44 mm) |
| Mounting | Rack Mountable |
| Max Power Consumption | • 32.1 W (110 V/ 60 Hz with no PD connected) • 308.6 W (110 V/ 60 Hz with 250 W PD connected) |
| Max Heat Dissipation | 109.53 BTU/h (with no PD connected) • 1052.94 BTU/h (with 250 W PD connected) |
| PERFORMANCE | |
|---|---|
| Switching Capacity | 56 Gbps |
| Bandwidth/Backplane | 56 Gbps |
| Packet Forwarding Rate | 41.7 Mpps |
| MAC Address Table | 8K |
| Packet Buffer Memory | 4.1 Mbit |
| Jumbo Frame | 9KB |
Software Specification
| Quality of Service | • Support 802.1p CoS/DSCP priority • Support 8 priority queues • Queue scheduling: SP, WRR, SP+WRR • Port/Flow- based Rate Limiting • IPv6 QoS • Voice VLAN |
|---|---|
| L2 and L2+ Features | • Static Routing • DHCP Relay • DHCP Server • IGMP Snooping V1/V2/V3 • 802.3ad LACP (Up to 8 aggregation groups, containing 8 ports per group) • Spanning Tree STP/RSTP/MSTP • BPDU Filtering/Guard • TC/Root Protect • Loopback detection • 802.3x Flow Control • LLDP, LLDP-MED |
| Advanced Features | • Automatic Device Discovery • Batch Configuration • Batch Firmware Upgrading • Intelligent Network Monitoring • Abnormal Event Warnings • Unified Configuration • Reboot Schedule |
| VLAN | • Supports up to 4K VLANs simultaneously (out of 4K VLAN IDs) • MAC/Protocol-based VLAN |
| Access Control List | • L2–L4 package filtering • MAC ACL • IP ACL • Combined ACL • IPv6 ACL |
| Security | • AAA • Port Security • DHCP Snooping • IP-MAC-Port Binding • IPv6-MAC-Port Binding • ARP Inspection • 802.1x and Radius Authentication • SSH v1/v2 • SSL v3/TLSv1.2 • Broadcast/Multicast/Unknown-unicast Storm Control • Dos Defend |
| IPv6 | • Dual IPv4/IPv6 stack • Multicast Listener Discovery (MLD) Snooping • IPv6 neighbor discovery (ND) • Path maximum transmission unit (MTU) discovery • Internet Control Message Protocol (ICMP) version 6 • TCPv6/UDPv6 |
| IPv6 Applications | • DHCPv6 Client • Ping6 • Tracert6 • Telnet (v6) • IPv6 SNMP • IPv6 SSH • IPv6 SSL • Http/Https • IPv6 TFTP |
| MIBs | • MIB II (RFC1213) • Bridge MIB (RFC1493) • P/Q-Bridge MIB (RFC2674) • Radius Accounting Client MIB (RFC2620) • Radius Authentication Client MIB (RFC2618) • Remote Ping, Traceroute MIB (RFC2925) • Support TP-Link private MIBs • RMON MIB(RFC1757, rmon 1,2,3,9) |
| MANAGEMENT | |
|---|---|
| Omada App | Yes |
| Centralized Management | • Omada Cloud-Based Controller • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller |
| Cloud Access | Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller) |
| Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller (Supported by TL-SG2428P v1, v3 and above, while is not supported by TL-SG2428P v2) |
| Management Features | • Web-based GUI and CLI management • SNMP v1/v2c/v3,compatible with public MIBs and TP-Link private MIBs • RMON (1, 2, 3, 9 groups) • CPU Monitoring • Port Mirroring • Firmware Upgrade: TFTP & Web • System Diagnose: VCT • SYSLOG & Public MIBS • Dual Image • EEE |
| OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS |
| Package Contents | TL-SG2428P • Power Cord • Installation Guide • Rackmount Kit • Rubber Feet |
| System Requirements | Microsoft® Windows® XP, Vista™ or Windows 7, Windows 8, Windows 10, MAC® OS, NetWare®, UNIX® or Linux. |
| Environment | • Operating Temperature: 0–50 ℃ (32–122 ℉); • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
