Synology RS422+ 4Bay RackStation (3 Years Manufacture Local Warranty In Singapore)

SynologySKU: RS422+
No reviews

Price:
Sale price$ 1,190.00 SGD

Description

Synology RS422+ 4Bay RackStation (3 Years Manufacture Local Warranty In Singapore)

Streamline your data management

With its compact 1U form factor and powerful Synology DiskStation Manager (DSM) operating system, the 4-bay Synology RackStation RS422+ is an affordable all-in-one solution for small businesses and home lab owners looking to meet their daily data management, sharing, synchronization, and backup needs.

Datasheet

Performance

601/516 MB/s sequential read/write throughput1

Form Factor

Depth of just 327.5 mm with handles

Connectivity

Built-in dual 1GbE ports with easy 10GbE option

File Integrity

ECC memory prevents data corruption

Space-saving design for flexible deployment

Thanks to its compact 1U chassis, the RS422+ fits perfectly in a 2-post or wall mount rack. Deploy it in space-limited environments or anywhere else without investing in costly railkits or other server equipment.


Flexible networking options

Leverage built-in connectivity to integrate the RS422+ into any IT environment, or expand its capabilities by adding plug-and-play modules.

Built-in connectivity

Dual Gigabit ports with support for network failover and load balancing deliver fast and dependable performance out of the box.

Easy upgrade to 10GbE

Add an E10G22-T1-Mini Network Upgrade Module through the easily accessible slot to instantly enable faster networking.

All-in-one data management platform

The RS422+ is designed to support small deployments in tackling common applications such as file management, data backup, and surveillance.

The RS422+ is designed to support small deployments in tackling common applications such as file management, data backup, and surveillance.

Edge storage for distributed teams

Provide secure and convenient multi-platform file access, sharing, and synchronization across different locations.

Private file cloud

Enable effective collaboration with Synology Drive

Synology Drive provides remote data access, synchronization, on-demand file restoration, and backup via handy desktop and mobile applications. Learn more

Synology Drive provides remote data access, synchronization, on-demand file restoration, and backup via handy desktop and mobile applications. Learn more

Multi-platform support

Access personal and shared data from mobile app, desktop client, web browser, or another Synology system: Any changes you make are automatically synced to other devices as soon as they are connected.

Collaborate in real time

Integrate with Synology Office to enable concurrent editing on documents, spreadsheets, and slides, with support for conversion to and from Microsoft Word, Excel, PowerPoint, and OpenDocument files. Learn more



Efficient multi-site synchronization

Connect teams with Hybrid Share

Utilize Hybrid Share to store large sets of data in the cloud, leveraging the powerful bandwidth of our data centers to stream requested files to local NAS deployed at the branch offices. Learn more

Data on demand

With Hybrid Share-enabled folders, remote teams retain full access to the most up-to-date files while benefiting from reduced local storage footprint and bandwidth usage.

Cache data used locally

Frequently accessed files are kept on the local NAS, allowing users to access them at LAN speeds. Files and folders can also be pinned manually to prevent them from being replaced when the cache is full.

Multi-endpoint data protection

Design an effective backup strategy to maximize system availability with a host of native and license-free solutions.


Consolidated backup server


Endpoint, VM, and NAS/SAN protection

Securely back up Windows and Linux endpoints, Synology servers, and VMware and Hyper-V virtual machines with Active Backup for Business. Learn more

Microsoft 365 and Google Workspace

Centralize backups of Microsoft 365 and Google Workspace data to protect it from accidents and simplify compliance with data retention policies. Schedulable backups, flexible file versioning, and block-level deduplication ensure flexibility and savings in terms of storage and bandwidth consumption. Learn more




Data protection and recovery

Hyper Backup

Back up files, LUNs, installed applications, and system configurations to destinations including Synology C2 Storage, public cloud platforms, USB devices, file servers, local folders, or other Synology systems.

Set and forget backup tasks with regular schedules, enhance security with fine-grained user permissions and encryption, keep backup sizes small with built-in deduplication, and restore data flexibly with multi-versioning. Learn more

Snapshot Replication

Snapshot Replication enables configurable point-in-time snapshots of shared folders and VM storage with an RPO as low as 5 minutes and recovery within seconds. Learn more

Smart surveillance for small deployments

Leverage flexible deployment options, intuitive management capabilities, and advanced video analytics to secure your premises.


Simple-to-deploy local surveillance


Wide compatibility

Connect up to 40 IP cameras from a selection of over 8,300 validated models thanks to Synology Surveillance Station's wide camera compatibility.

Multi-platform convenience

Monitor live streams or watch recordings from web browser, desktop client, or the DS cam mobile app.

Secure and private

Footage is stored locally for easier compliance with data protection regulations and further protected from unauthorized access with industry-standard AES-256 encryption.

Flexible monitoring of multiple locations


Assisted mass deployment

Automatically locate new cameras within a set IP range, and configure units in batch by importing spreadsheets or replicating settings to new cameras.

Centralized management and monitoring

Stay on top of your deployment by previewing triggered events directly on multi-floor or multi-location maps, with online map integration for Google Maps and OpenStreetMap.

Video analytics

Take advantage of intelligent monitoring features such as motion detection, no idle zone, foreign object detection, and anomaly detection to cater the most common surveillance scenarios.


Hardware Specifications
CPU
CPU Model AMD Ryzen R1600
CPU Quantity 1
CPU Core 2
CPU Architecture 64-bit
CPU Frequency 2.6 (base) / 3.1 (turbo) GHz
Hardware Encryption Engine Yes
Memory
System Memory 2 GB DDR4 ECC
Notes Synology reserves the right to replace memory modules with the same or higher frequency based on supplier's product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance.
Storage
Drive Bays 4
Compatible Drive Type* (See all supported drives)
  • 3.5" SATA HDD
  • 2.5" SATA SSD
Hot Swappable Drive* Yes
Notes "Compatible drive type" indicates drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.

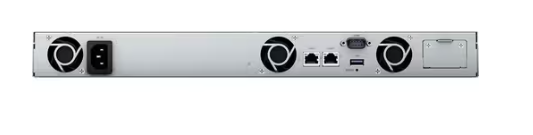

External Ports
RJ-45 1GbE LAN Port 2
USB 3.2 Gen 1 Port* 1
Notes
  • This device's 1GbE LAN ports have a maximum transmission unit (MTU) size of 1,500 bytes.
  • The USB 3.0 standard was renamed to USB 3.2 Gen 1 by the USB Implementers Forum (USB-IF) in 2019.
PCIe
PCIe Expansion 1 x Gen3 x2 network upgrade slot
Appearance
Form Factor (RU) 1U
Size (Height x Width x Depth) 44 mm x 478 mm x 327.5 mm
Weight 4.38 kg
Rack Installation Support*
  • 4-post 19" rack (Synology Rail Kit - RKM114/RKS-02)
  • 2-post 19" rack (direct mounting)
Notes The rail kit is sold separately
Others
System Fan 40 mm x 40 mm x 3 pcs
Fan Speed Mode
  • Full-Speed Mode
  • Cool Mode
  • Quiet Mode
Power Recovery Yes
Noise Level* 28.5 dB(A)
Scheduled Power On / Off Yes
Wake on LAN / WAN Yes
Power Supply Unit / Adapter 100 watts
AC Input Power Voltage 100V to 240V AC
Power Frequency 50/60 Hz, Single Phase
Power Consumption 37.93 watts (Access)
13.43 watts (HDD Hibernation)
British Thermal Unit 129.42 BTU/hr (Access)
45.83 BTU/hr (HDD Hibernation)
Notes
  • For more information on how power consumption is measured, refer to this article.
  • Noise testing was conducted with the Synology system fully installed with Synology SATA HDDs and in an idle stae. Two G.R.A.S. Type 40AE microphones are placed at a 1 m distance from the front and rear of the device. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%
Temperature
Operating Temperature 0°C to 35°C (32°F to 95°F)
Storage Temperature -20°C to 60°C (-5°F to 140°F)
Relative Humidity 5% to 95% RH
Certification
  • FCC
  • CE
  • BSMI
  • VCCI
  • RCM
  • UKCA
  • EAC
  • CCC
  • KC
  • BIS
Warranty
3-year hardware warranty, extendable to 5 years with EW201
Notes
  • The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more)
  • EW201/EW202 is only available in Asia, Africa, and Oceania. Refer to the Extended Warranty website for details on supported countries/regions. (Learn more)
Environment
RoHS Compliant
Packaging Content
  • Main Unit X 1
  • Accessory Pack X 1
  • AC Power Cord X 1
  • Quick Installation Guide X 1
Optional Accessories
Notes Certain items may not be available in your location. Please contact your local distributors for more information.

DSM Specifications
Maximum Single Volume Size 108 TB
Maximum Internal Volume Number 64
SSD Read/Write Cache (Determining cache size) Yes
SSD TRIM Yes
Supported RAID Type
  • Synology Hybrid RAID
  • Basic
  • JBOD
  • RAID 0
  • RAID 1
  • RAID 5
  • RAID 6
  • RAID 10
RAID Migration
  • Basic to RAID 1
  • Basic to RAID 5
  • RAID 1 to RAID 5
  • RAID 5 to RAID 6
Volume Expansion with Larger HDDs
  • Synology Hybrid RAID
  • RAID 1
  • RAID 5
  • RAID 6
  • RAID 10
Volume Expansion by Adding a HDD
  • Synology Hybrid RAID
  • JBOD
  • RAID 5
Global Hot Spare Supported RAID Type
  • Synology Hybrid RAID
  • RAID 1
  • RAID 5
Notes
  • Usable capacity for each volume will be lower than the maximum volume size and is dependent on the filesystem and the amount of system metadata stored.
  • Actual maximum storage pool and volume sizes depend on drive sizes used, the number of drive bays available, and the RAID configuration.
Internal Drives
  • Btrfs
  • ext4
External Drives
  • Btrfs
  • ext4
  • ext3
  • FAT
  • NTFS
  • HFS+
  • exFAT
File Protocol
  • SMB
  • AFP
  • NFS
  • FTP
  • WebDAV
  • Rsync
Maximum Concurrent SMB/AFP/FTP Connections 500
Windows Access Control List (ACL) Integration Yes
NFS Kerberos Authentication Yes
Notes The testing standard was based on the maximum number of concurrent connections supported by this model. During the testing, 25% of the connections were used to transfer files concurrently. The transfer process guaranteed that the connections were not interrupted; the minimum transfer speed was not guaranteed.
Maximum Local User Accounts 2,048
Maximum Local Groups 256
Maximum Shared Folder 512
Maximum Shared Folder Sync Tasks 8
Hybrid Share Folder Number 10
Data & Folder Backup Yes
Entire System Backup Yes
Notes Full-system backup requires DSM 7.2 or later.
Synology High Availability Yes
Syslog Events per Second 800
Supported Protocols SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV
Supported Browsers
  • Chrome
  • Firefox
  • Edge
  • Safari
Supported Language English, Deutsch, Français, Italiano, Español, Dansk, Norsk, Svenska, Nederlands, Русский, Polski, Magyar, Português do Brasil, Português Europeu, Türkçe, Český, ภาษาไทย, 日本語, 한국어, 繁體中文, 简体中文
Notes For an updated list of supported browser versions, check the DSM Technical Specifications.
Yes
Suggested Users 100
Notes
  • Measured with simulated users, each with an average record of 20,000 messages, emojis, or stickers. The required server response time is below ten seconds.
  • Models with expandable memory are tested with their maximum supported memory.
Download Station
Maximum Concurrent Download Tasks 80
Maximum iSCSI Target Number 128
Maximum LUN 256
LUN Clone/Snapshot, Windows ODX
DLNA Compliance
Facial Recognition
Maximum Snapshots per Shared Folder 1,024
Maximum of System Snapshots 65,536
Default Licenses 2 (Additional cameras require purchase of licenses)
Suggested Maximum IP Cameras and Total FPS (H.264)
  • 1080p: 40 channels, 800 FPS
  • 3M: 35 channels, 350 FPS
  • 5M: 28 channels, 280 FPS
  • 4K: 17 channels, 170 FPS
Suggested Maximum IP Cameras and Total FPS (H.265)
  • 1080p: 40 channels, 1200 FPS
  • 3M: 40 channels, 600 FPS
  • 5M: 40 channels, 480 FPS
  • 4K: 20 channels, 200 FPS
Notes
  • Performance figures are obtained from testing conducted with the device fully populated with drives, with their default memory configuration, and under a continuous recording setup. Actual system capabilities may vary based on configuration, drive performance, enabled features, and the presence of additional workloads.
  • Use NVR Selector to quickly find a suitable model based on your requirements.
  • The number of streams that can be viewed simultaneously is twice the suggested maximum number of cameras. For example, if the suggested maximum number of cameras for a model is 10 under H.264, 1080p, the model can support up to 20 streams of the same specification at the same time.
Recommended Number of Concurrent Sync Clients 350 (the number of connections that can be maintained when the recommended number of hosted files was reached)
Recommended Number of Hosted Files 5,000,000 (applies to files indexed or hosted by Synology Drive. For file access through other standard protocols, refer to the File Services section above)
Notes
  • Exceeding the recommended numbers above will not block application operations, but may result in longer response time.
  • Utilizing SSD cache can significantly improve performance.
  • Btrfs file system and non-encrypted shared folders were used during the aforementioned testing.
Suggested Users 3,000
Notes
  • Suggested users is derived from testing in an environment with 60% idle users (each logging in and viewing documents) and 40% active users (each executing random actions at intervals of 20 to 40 seconds) operating within documents, each document having 30 users. Learn more
  • Client performance may affect maximum simultaneous editing users. Client PCs used for testing: Intel Core i3-3220 / 8GB RAM
Maximum Connections 40
