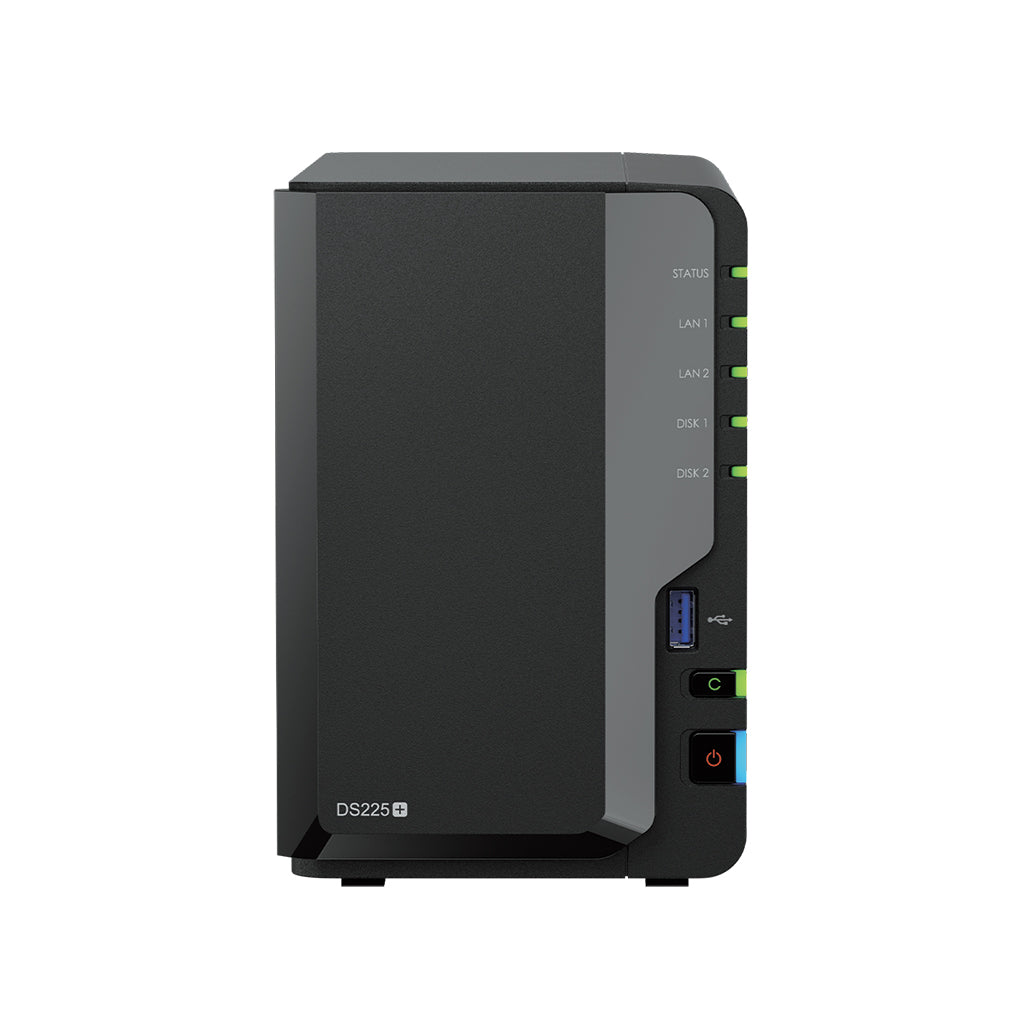

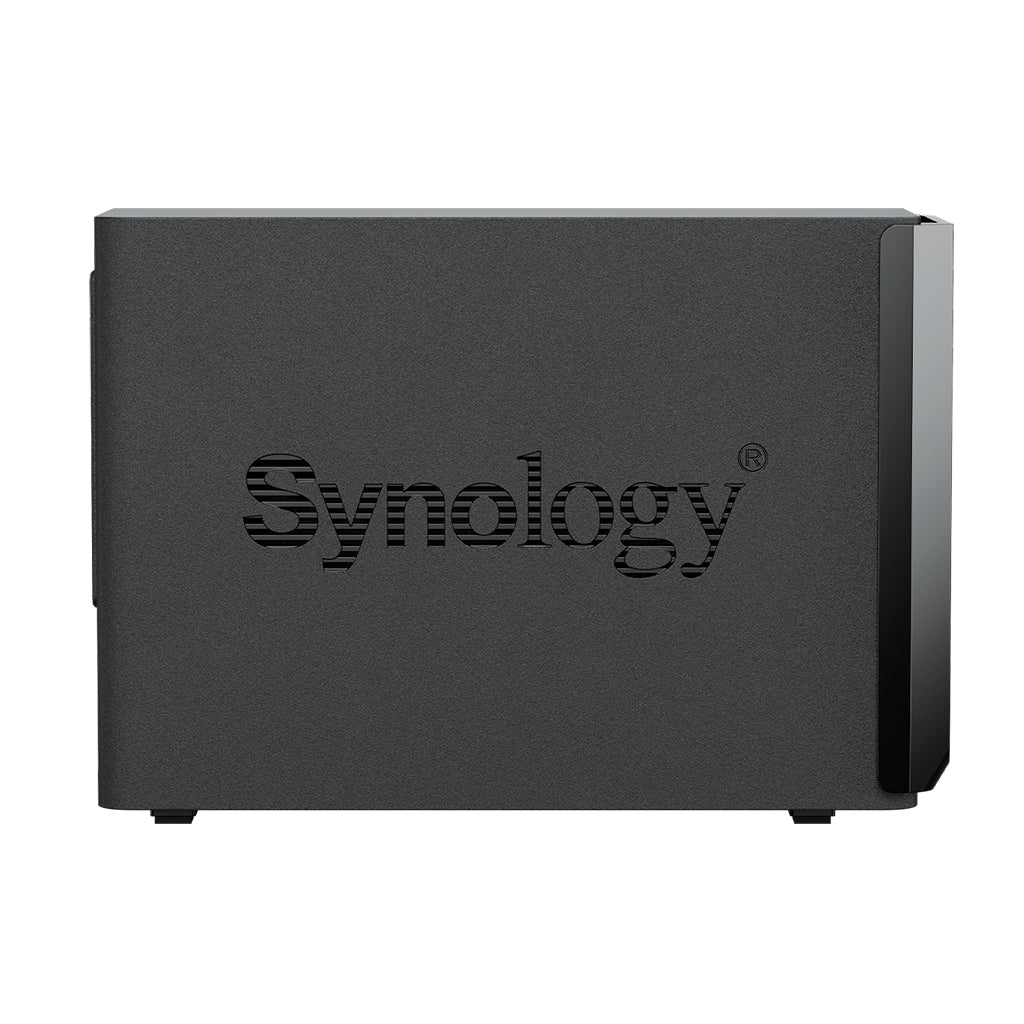

Synology DS225+ 2 Bay NAS (2 Years Manufacture Local Warranty In Singapore)

Roll over image to zoom in Click on image to zoom

Synology DS225+ 2 Bay NAS (2 Years Manufacture Local Warranty In Singapore)

Name: Synology DS225+ 2 Bay NAS (2 Years Manufacture Local Warranty In Singapore)
Brand: Synology
SKU: DS225+
Price: 567.84 SGD
Availability: OutOfStock

Consolidate and safeguard

Up to 40 TB of raw storage

Download Datasheet

Capable storage

Built-in 2.5GbE port and over 282/217 MB/s sequential read/write

Versatile applications

Back up multiple endpoints, manage 25 IP cameras, or safely sync and share files across sites

Hardware Specifications
CPU	CPU Model	Intel Celeron J4125
	CPU Quantity	1
	CPU Core	4
	CPU Architecture	64-bit
	CPU Frequency	2.0 (base) / 2.7 (turbo) GHz
	Hardware Encryption Engine	✔
Memory	System Memory	2 GB DDR4 non-ECC
	Total Memory Slots	1
	Maximum Memory Capacity	6 GB (2 GB + 4 GB)
	Notes	Synology reserves the right to replace memory modules with the same or higher frequency based on supplier's product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance. Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion.
Storage	Drive Bays	2
	Drive Type (See all supported drives)	3.5" SATA HDD 2.5" SATA SSD
	Hot Swappable Drive*	✔
	Notes	Compatible drives are mandatory. Please consult our compatibility list before purchasing hard drives. For more details, please refer to this article.

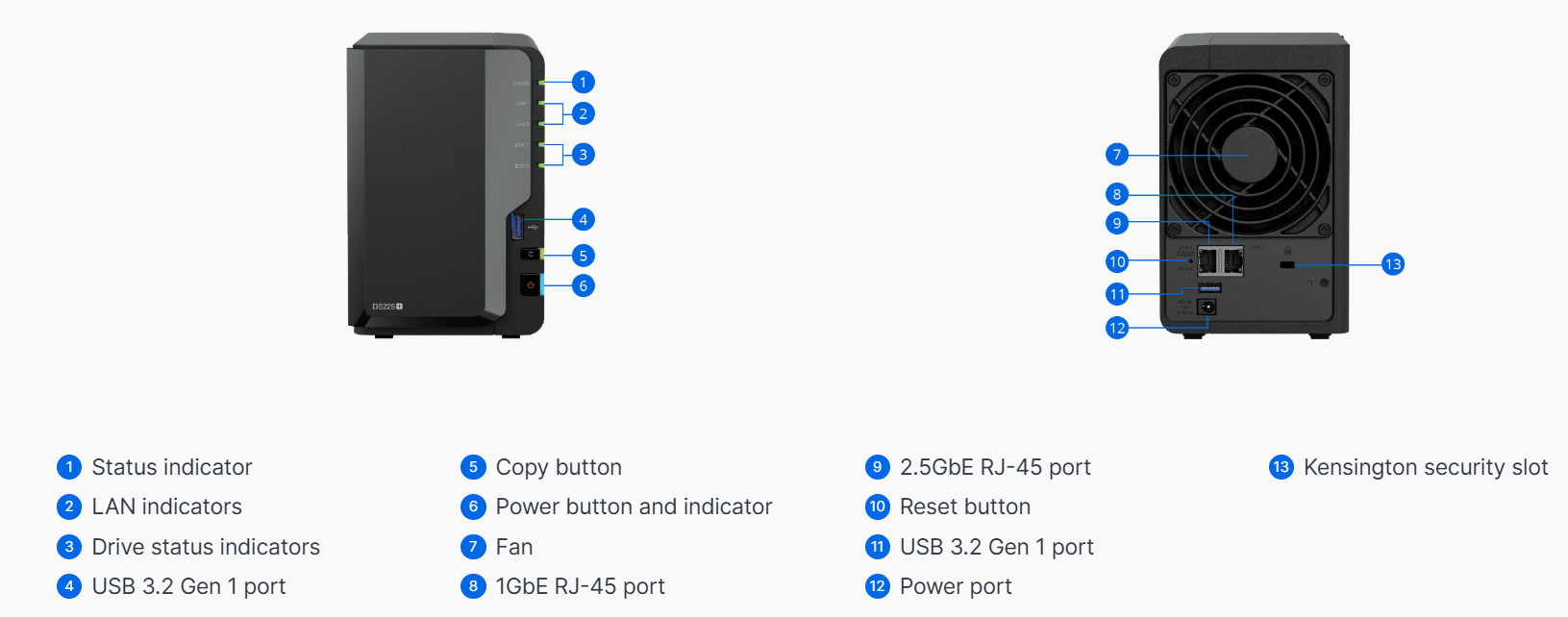

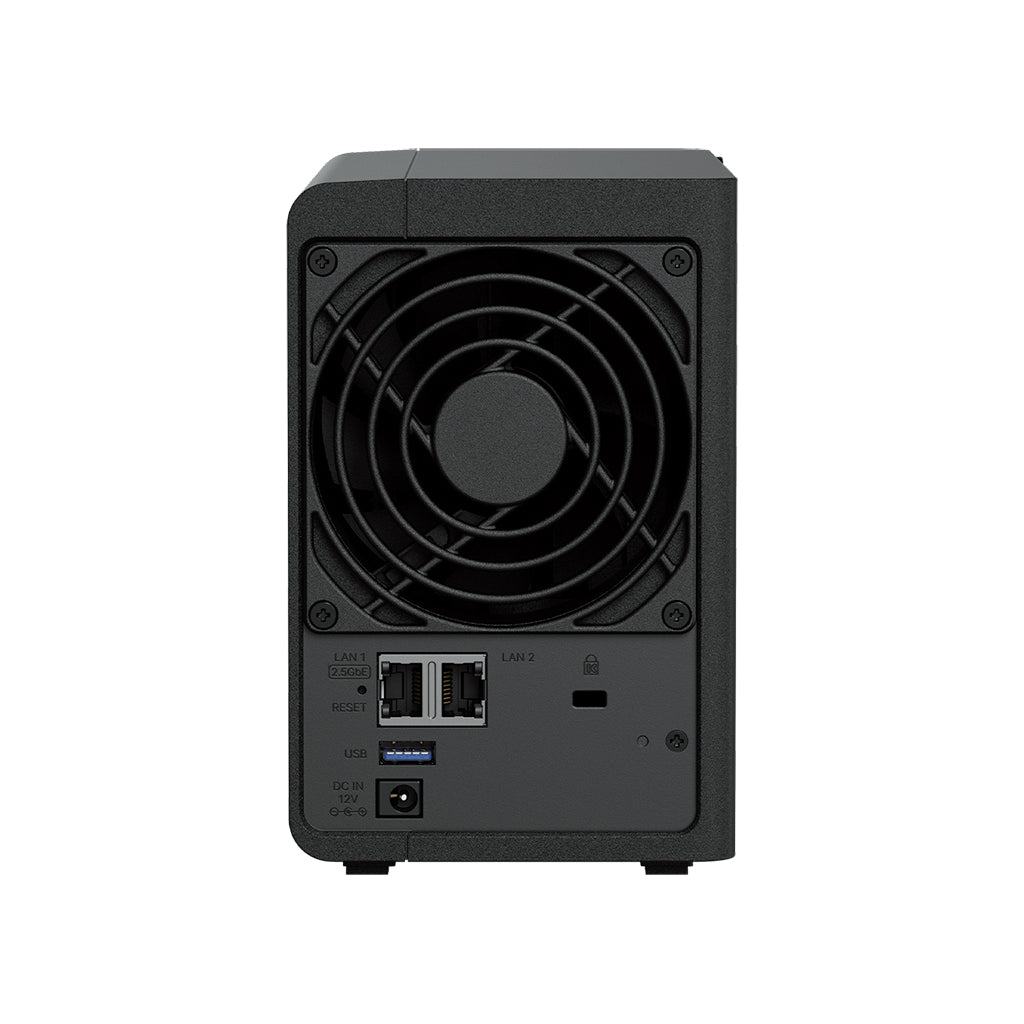

External Ports	RJ-45 1GbE LAN Port	1
	RJ-45 2.5GbE LAN Port	1
	USB 3.2 Gen 1 Port	2
	USB Copy	✔
	Notes	This device's 1GbE LAN ports have a maximum transmission unit (MTU) size of 1,500 bytes.
Appearance	Size (Height x Width x Depth)	165 mm x 108 mm x 232.2 mm
	Weight	1.3 kg
Others	System Fan	92 mm x 92 mm x 1 pcs
	Fan Speed Mode	Full-Speed Mode Cool Mode Quiet Mode
	Brightness Adjustable Front LED Indicators	✔
	Power Recovery	✔
	Noise Level*	19.6 dB(A)
	Scheduled Power On / Off	✔
	Wake on LAN / WAN	✔
	Power Supply Unit / Adapter	60 watts
	AC Input Power Voltage	100V to 240V AC
	Power Frequency	50/60 Hz, Single Phase
	Power Consumption*	16.98 watts (Access) 6.08 watts (HDD Hibernation)
	British Thermal Unit	57.90 BTU/hr (Access) 20.73 BTU/hr (HDD Hibernation)
	Notes	For more information on how power consumption is measured, refer to this article. Noise testing was conducted with the Synology system fully installed with Synology SATA HDDs and in an idle state. Two G.R.A.S. Type 40AE microphones are placed at a 1 m distance from the front and rear of the device. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%
Temperature	Operating Temperature	0°C to 40°C (32°F to 104°F)
	Storage Temperature	-20°C to 60°C (-5°F to 140°F)
	Relative Humidity	5% to 95% RH
Certification	FCC CE BSMI VCCI RCM UKCA EAC CCC KC BIS
Warranty	3-year hardware warranty, extendable to 5 years with EW201 or Extended Warranty Plus
	Notes	The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more) Extended Warranty Plus is only available in Europe and North America. EW201/EW202 is only available in Asia, Africa, and Oceania. For exact availability information please visit their respective websites.
Environment	RoHS Compliant
Packaging Content	Main Unit X 1 Accessory Pack X 1 AC Power Adapter X 1 AC Power Cord X 1 RJ-45 LAN Cable X 2

DSM Specifications
Storage Management	Maximum Single Volume Size	108 TB
	Maximum Internal Volume Number	32
	SSD TRIM	✔
	Supported RAID Type	Synology Hybrid RAID Basic JBOD RAID 0 RAID 1
	RAID Migration	Basic to RAID 1
	Volume Expansion with Larger HDDs	Synology Hybrid RAID RAID 1
	Notes	Each internal volume (may consist of multiple drives) is expandable up to 108TB. Actual maximum storage pool and volume sizes depend on drive sizes used, the number of drive bays available, and the RAID configuration. Usable capacity for each volume will be lower than the maximum volume size and is dependent on the filesystem and the amount of system metadata stored.
File System	Internal Drives	Btrfs ext4
	External Drives	Btrfs ext4 ext3 FAT32 NTFS HFS+ exFAT
File Services	File Protocol	SMB AFP NFS FTP WebDAV Rsync
	Maximum Number of SMB Connections (FSCT-Based)	5
	Windows Access Control List (ACL) Integration	✔
	NFS Kerberos Authentication	✔
	Notes	Connection value of this model is tested with Synology SATA HDD fully populated and all onboard network ports Models with expandable memory are tested with the maximum supported quantity installed. SMB performance was evaluated using Microsoft File Server Capacity Tool (FSCT) version 1.3, with the following configuration: Test workload: HomeFolder scenario provided by the FSCT tool Test duration: 600 seconds Domain controller & FSCT controller: Windows Server 2022 FSCT clients: 8 × Windows 10 machines SMB feature: Directory leasing enabled
Account & Shared Folder	Maximum Local User Accounts	512
	Maximum Local Groups	128
	Maximum Shared Folder	128
	Maximum Shared Folder Sync Tasks	4
Hybrid Share	Maximum Hybrid Share Folders	10
Hyper Backup	Folder and Package Backup	✔
	Entire System Backup	✔
High Availability	Synology High Availability	✔
Log Center	Syslog Events per Second	800
General Specifications	Supported Protocols	SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV
	Supported Browsers	Chrome Firefox Edge Safari
	Supported Language	English, Deutsch, Français, Italiano, Español, Dansk, Norsk, Svenska, Nederlands, Русский, Polski, Magyar, Português do Brasil, Português Europeu, Türkçe, Český, ภาษาไทย, 日本語, 한국어, 繁體中文, 简体中文
