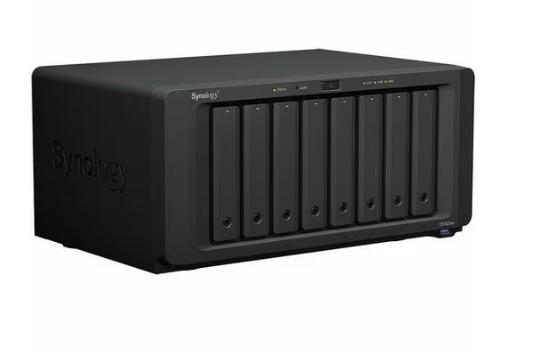

Synology DS1823xs+ 8 Bay DiskStation (3 Years Manufacture Local Warranty In Singapore)

Roll over image to zoom in Click on image to zoom

Synology DS1823xs+ 8 Bay DiskStation (3 Years Manufacture Local Warranty In Singapore)

Name: Synology DS1823xs+ 8 Bay DiskStation (3 Years Manufacture Local Warranty In Singapore)
Brand: Synology
SKU: DS1823xs+
Price: 2530.00 SGD
Availability: InStock

SynologySKU: DS1823xs+

No reviews

Price:

$ 2,530.00 SGD

Quantity:

Share this product

Synology DS1823xs+ 8 Bay DiskStation (3 Years Manufacture Local Warranty In Singapore)

Private data center on your desk

The DS1823xs+ is a powerful central storage server that can easily be deployed anywhere to provide secure data storage and sharing, endpoint and server backup, VM storage, surveillance management, and other business applications. It is perfect in environments where no dedicated server rack or data center is available.

Download Datasheet

Datasheet

Desktop-sized powerhouse

Desktop-sized powerhouse

Over 3,100/2,600 MB/s seq. read/write, built-in 10GbE, and up to 160 TB raw storage before expansion.

Flexible configuration

Add up to 10 extra drive bays, 25GbE or Fibre Channel, and SSD cache volumes when needed

Over 3,100/2,600 MB/s seq. read/write,¹ built-in 10GbE, and up to 160 TB raw storage² before expansion.

Versatile applications

Back up 300 endpoints, manage 75 IP cameras, or safely sync and share files between devices and sites.

Versatile applications

Safe, dependable, and scalable

Built-in data integrity protection, remote management options, and easy hardware expansion make the DS1823xs+ dependable, easy to maintain, and cost efficient.

The Btrfs file system helps prevent data corruption and loss through metadata mirroring, file self-healing, and efficient point-in-time snapshots. ECC memory provides additional integrity safeguards.

Efficient remote management

Monitor, manage, and replace drives and storage online in Synology DiskStation Manager (DSM). Remotely reboot, reset, or view logs while the system is down thanks to out-of-band management (OOB).

Plug-and-play expansion

The DS1823xs+ can be scaled to up to 18 bays by adding two DX517 expansion units without system downtime, thanks to online storage and volume expansion.

The performance you need

Up to 25GbE networking

2 x M.2NVMe SSD cache & storage pool

Store, share, and protect

Manage all your documents, photos, and other files, back up applications and devices, and protect your physical assets with professional video surveillance.

Flexible file server

Use the DS1823xs+ as a central file repository and data sharing hub. Provide easy access to business data from PCs, phones, and other devices, and set up powerful cross-site syncing to empower collaboration between offices or branches.

Private cloud

A private cloud suite for file sharing

Empower your entire organization with streamlined ability to access, share, and sync data from anywhere. Provide employees with access to corporate files through mobile apps, desktop clients, and a browser-based interface. Set granular file and folder access and sharing permissions. Maintain a full overview of file activities and track changes to file share settings with detailed records in the Synology Drive Admin Console.

Dependable and secure network storage

Use shared folders on your Synology device as reliable storage available from anywhere on your local network over all common protocols (SMB/NFS/WebDAV/FTP). Protect your files against accidental changes, removal, or even malware attacks with built-in snapshot technology and other backup options.

Cross-site syncing

Secure site-to site file and folder syncing

Make sure branches always have up-to-date copies of crucial documents and data available locally by syncing Synology systems one or two ways using Synology Drive ShareSync. Keep files updated across locations each time there is a change to efficiently keep all stakeholders on the same page.

Efficient cross-site syncing through the cloud

Boost syncing speeds, cut bandwidth use, and reduce your storage footprint by leveraging the powerful connectivity of our data centers. Synology Hybrid Share intelligently synchronizes data to Synology devices.Large or less frequently accessed files are stored on the cloud to reduce local storage requirements, while frequently used files are stored on local devices to provide users access at LAN speeds.

Backup repository

Back up files, folders, physical devices, VMs, and SaaS applications with free solutions, and protect your NAS with built-in technologies.

Back up all your devices

Centralize your backup and recovery solution

Consolidate and automate backup tasks for PCs, file servers, VMs, SaaS applications, and more with Active Backup Suite. Administer device backups remotely through a centralized portal and quickly restore specific files or entire devices to keep your business up and running. Take advantage of built-in remote backup solutions designed to protect your data with seamless 3-2-1 backup configurations.

Protect your Synology system

Perform full system backups with Synology

Protect all data, applications, and configurations on your Synology systems with comprehensive scheduled backups to local and remote servers, external drives, or cloud storage destinations including Synology C2 Storage.

Protect folders and LUNs with snapshots

Configure efficient point-in-time snapshots of shared folders and LUNs at intervals as short as five minutes. Allow users to easily restore previous versions of files unassisted, quickly recover VMs, and copy snapshots to another server to benefit from rapid storage failover.

Business application platform

Host cost-efficient business solutions, either through containers, virtual machines, or Synology DSM's own solutions, including a powerful free backup suite, a versatile mail server, and a surveillance VMS with transparent licensing.

Synology productivity solutions

Collaboration in a secure cloud

Create and edit documents, spreadsheets, and slides together with your whole team in real time. Easily migrate existing documents from other platforms and take ownership of your files in a secure private cloud.

Synology’s private cloud mail solution provides ease of use, full data ownership, and robust data security with a low total cost of ownership thanks to its perpetual licensing model.

Keep teams connected through encrypted one-on-one private chats, public channels, and group conversations. Efficiently organize discussions with bookmarks, searchable hashtags, and chatbots.

Containerization and virtualization-ready

Application test environment

Run Docker containers and VMs on DS1823xs+ using Docker and Synology Virtual Machine Manager (VMM) — a hypervisor for virtualized versions of Windows, Linux, and DSM — to safely test and evaluate applications.

Virtual DSM serves as a test environment for package updates or to add an additional layer of security between applications, systems, and data.

Hardware Specifications
CPU	CPU Model	AMD Ryzen V1780B
	CPU Quantity	1
	CPU Core	4
	CPU Architecture	64-bit
	CPU Frequency	3.35 (base) / 3.6 (turbo) GHz
	Hardware Encryption Engine	Yes
Memory	System Memory	8 GB DDR4 ECC SODIMM
	Memory Module Pre-installed	8 GB (8 GB x 1)
	Total Memory Slots	2
	Maximum Memory Capacity	32 GB (16 GB x 2)
	Notes	Synology reserves the right to replace memory modules with the same or higher frequency based on supplier's product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance. Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion. For more information about the recommended memory configurations, please check the Hardware Installation Guide of your Synology product.
Storage	Drive Bays	8
	Maximum Drive Bays with Expansion Unit	18 (DX517 x 2)
	M.2 Drive Slots	2 (NVMe)
	Compatible Drive Type* (See all supported drives)	3.5" SATA HDD 2.5" SATA SSD M.2 2280 NVMe SSD
	Hot Swappable Drive*	Yes
	Notes	The hot swappable drive feature is not supported by M.2 SSD slots. Synology only guarantees full functionality, reliability, and performance for Synology drives listed on the compatibility list. The use of non-validated components may limit certain functionality and result in data loss and system instability. "Compatible drive type" indicates drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.

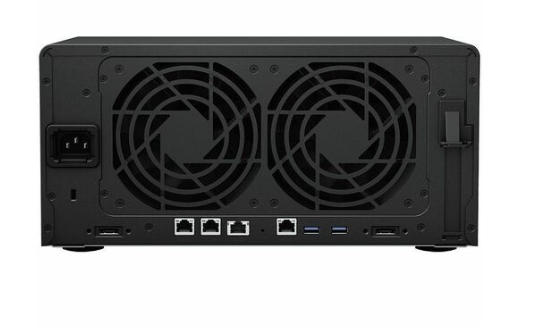

External Ports	RJ-45 1GbE LAN Port	2
	RJ-45 10GbE LAN Port	1
	Out-of-Band Management LAN Port	1
	USB 3.2 Gen 1 Port*	3
	Expansion Port	2
	Expansion Port Type	eSATA
	Notes	This device's 1GbE LAN ports have a maximum transmission unit (MTU) size of 1,500 bytes.
PCIe	PCIe Expansion	1 x Gen3 x8 slot (x4 link)
Appearance	Size (Height x Width x Depth)	166 mm x 343 mm x 243 mm
	Weight	6.2 kg
Others	System Fan	120 mm x 120 mm x 2 pcs
	Fan Speed Mode	Full-Speed Mode Cool Mode Quiet Mode
	Easy Replacement System Fan	Yes
	Brightness Adjustable Front LED Indicators	Yes
	Power Recovery	Yes
	Noise Level*	23.6 dB(A)
	Scheduled Power On / Off	Yes
	Wake on LAN / WAN	Yes
	Power Supply Unit / Adapter	250 watts
	AC Input Power Voltage	100V to 240V AC
	Power Frequency	50/60 Hz, Single Phase
	Power Consumption	87.93 watts (Access) 28.37 watts (HDD Hibernation)
	British Thermal Unit	300.23 BTU/hr (Access) 96.87 BTU/hr (HDD Hibernation)
	Notes	For more information on how power consumption is measured, refer to this article. Noise testing was conducted with the Synology system fully installed with Synology SATA HDDs and in an idle state. Two GRAS 40AE microphones are placed at a 1 m distance from the front and rear of the device. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%
Temperature	Operating Temperature	0°C to 40°C (32°F to 104°F)
	Storage Temperature	-20°C to 60°C (-5°F to 140°F)
	Relative Humidity	5% to 95% RH
Certification	FCC CE BSMI VCCI RCM EAC CCC KC BIS
Warranty	5 Years
	Notes	The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more)
Environment	RoHS Compliant
Packaging Content	Main Unit X 1 Accessory Pack X 1 AC Power Cord X 1 RJ-45 LAN Cable X 2 Quick Installation Guide X 1
Optional Accessories	DDR4 ECC SODIMM: D4ES02-8G/D4ES01-16G Expansion Units: DX517 Enterprise Series 3.5" SATA HDD: HAT5300 Series Plus Series 3.5" SATA HDD: HAT3300 Series Enterprise Series 2.5" SATA SSD: SAT5200 Series Enterprise Series M.2 2280 NVMe SSD: SNV3400 Series 25GbE Network Interface Card: E25G30-F2 10GbE Network Interface Card: E10G30-F2/E10G30-T2/E10G18-T1

DSM Specifications
Storage Management	Maximum Single Volume Size	200 TB (32 GB memory required) 108 TB
	Maximum Internal Volume Number	256
	M.2 SSD Storage Pool Support*	Yes
	SSD Read/Write Cache (Determining cache size)	Yes
	SSD TRIM	Yes
	RAID Group	Yes
	Supported RAID Type	RAID F1 Basic JBOD RAID 0 RAID 1 RAID 5 RAID 6 RAID 10
	RAID Migration	Basic to RAID 1 Basic to RAID 5 RAID 1 to RAID 5 RAID 5 to RAID 6
	Volume Expansion with Larger HDDs	RAID F1 RAID 1 RAID 5 RAID 6 RAID 10
	Volume Expansion by Adding a HDD	RAID F1 JBOD RAID 5 RAID 6
	Global Hot Spare Supported RAID Type	RAID F1 RAID 1 RAID 5 RAID 6 RAID 10
	Notes	Creating M.2 storage pools requires the use of Synology-verified SSDs, which are rigorously tested under extreme temperature conditions. Thermal parameters for SSDs and NAS units are fine-tuned to ensure optimal management of thermal conditions under I/O-intensive environments. (Learn more) Usable capacity for each volume will be lower than the maximum volume size and is dependent on the filesystem and the amount of system metadata stored. Volumes over 108 TB require 32 GB of memory or more.
File System	Internal Drives	Btrfs ext4
	External Drives	Btrfs ext4 ext3 FAT NTFS HFS+ exFAT
File Services	File Protocol	SMB AFP NFS FTP WebDAV Rsync
	Maximum Concurrent SMB/AFP/FTP Connections	2,000
	Maximum Concurrent SMB/AFP/FTP Connections (with RAM expansion)	8,000
	Windows Access Control List (ACL) Integration	Yes
	NFS Kerberos Authentication	Yes
	Notes	Regarding data concerning tests with RAM expansion, all memory slots are installed with the maximum capacity of supported RAM. During testing, the maximum number of SSDs supported by this model is installed in a RAID 5 configuration. The testing standard was based on the maximum number of concurrent connections supported by this model. During the testing, 25% of the connections were used to transfer files concurrently. The transfer process guaranteed that the connections were not interrupted; the minimum transfer speed was not guaranteed.
Account & Shared Folder	Maximum Local User Accounts	16,000
	Maximum Local Groups	512
	Maximum Shared Folder	512
	Maximum Shared Folder Sync Tasks	32
Hybrid Share	Hybrid Share Folder Number	15
Hyper Backup	Folder and Package Backup	Yes
	Entire System Backup	Yes
	Notes	Full-system backup requires DSM 7.2 or later.
High Availability	Synology High Availability	Yes
Log Center	Syslog Events per Second	3,000
Virtualization	VMware ESXi 6.5 and VAAI	Yes
	Windows Server 2022	Yes
	Citrix Ready	Yes
	OpenStack	Yes
General Specifications	Supported Protocols	SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, Fibre Channel, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV
	Supported Browsers	Chrome Firefox Edge Safari
	Supported Language	English, Deutsch, Français, Italiano, Español, Dansk, Norsk, Svenska, Nederlands, Русский, Polski, Magyar, Português do Brasil, Português Europeu, Türkçe, Český, ภาษาไทย, 日本語, 한국어, 繁體中文, 简体中文
	Notes	For an updated list of supported browser versions, check the DSM Technical Specifications.
Add-on Packages view the complete package list
Central Management System	Yes
Synology Chat	Suggested Users	400
	Notes	Measured with simulated users, each with an average record of 20,000 messages, emojis, or stickers. The required server response time is below ten seconds. Models with expandable memory are tested with their maximum supported memory.
Download Station	Maximum Concurrent Download Tasks	80
SAN Manager	Maximum iSCSI Target Number	256
	Maximum LUN	512
	LUN Clone/Snapshot, Windows ODX	Yes
Synology MailPlus / MailPlus Server	Free Email Accounts	5 (Additional accounts require purchase of licenses)
	Suggested Users	5,000
	Notes	Suggested users is derived from testing in an environment with 20% heavy users (each with 20,000 pre-populated emails and receiving 240 emails per day) and 80% light users (each receiving an average of 20 emails per day). Learn more Models with expandable memory are tested with their maximum supported memory. To estimate the RAM requirement for your NAS, please read this article. The performance of the mail system will slightly decrease in high-availability mode due to data synchronization between the two servers. Functions that were enabled in all of the tests above: anti-spam, anti-virus, DNSBL, greylist, content scan, full-text search (English only).
Media Server	DLNA Compliance	Yes
Synology Photos	Facial Recognition	Yes
	Object Recognition	Yes
Snapshot Replication	Maximum Snapshots per Shared Folder	1,024
	Maximum of System Snapshots	65,536
Surveillance Station	Default Licenses	2 (Additional cameras require purchase of licenses)
	Suggested Maximum IP Cameras and Total FPS (H.264)	1080p: 75 channels, 2100 FPS 3M: 75 channels, 1500 FPS 5M: 75 channels, 900 FPS 4K: 55 channels, 550 FPS
	Suggested Maximum IP Cameras and Total FPS (H.265)	1080p: 75 channels, 2250 FPS 3M: 75 channels, 2250 FPS 5M: 75 channels, 1500 FPS 4K: 75 channels, 900 FPS
	Notes	Performance figures are obtained from testing conducted with the device fully populated with drives, with their default memory configuration, and under a continuous recording setup. Actual system capabilities may vary based on configuration, drive performance, enabled features, and the presence of additional workloads. Use NVR Selector to quickly find a suitable model based on your requirements. The number of streams that can be viewed simultaneously is twice the suggested maximum number of cameras. For example, if the suggested maximum number of cameras for a model is 10 under H.264, 1080p, the model can support up to 20 streams of the same specification at the same time.
Synology Drive	Recommended Number of Concurrent Sync Clients	900 (the number of connections that can be maintained when the recommended number of hosted files was reached)
	Recommended Number of Hosted Files	50,000,000 (applies to files indexed or hosted by Synology Drive. For file access through other standard protocols, refer to the File Services section above)
	Notes	Exceeding the recommended numbers above will not block application operations, but may result in longer response time. Utilizing SSD cache can significantly improve performance. Models with expandable memory are tested with their maximum supported memory. Btrfs file system and non-encrypted shared folders were used during the aforementioned testing.
Synology Office	Suggested Users	12,500
	Notes	Suggested users is derived from testing in an environment with 60% idle users (each logging in and viewing documents) and 40% active users (each executing random actions at intervals of 20 to 40 seconds) operating within documents, each document having 30 users. Learn more Models with expandable memory are tested with their maximum supported memory. Client performance may affect maximum simultaneous editing users. Client PCs used for testing: Intel Core i3-3220 / 8GB RAM
Virtual Machine Manager	Recommended Virtual Machine Instances	8 (Learn more)
	Recommended Virtual DSM Number (Licenses required)	8 (including 1 Free License)
	Notes	The specifications vary depending on system configuration and memory size.
VPN Server	Maximum Connections	60
