Description

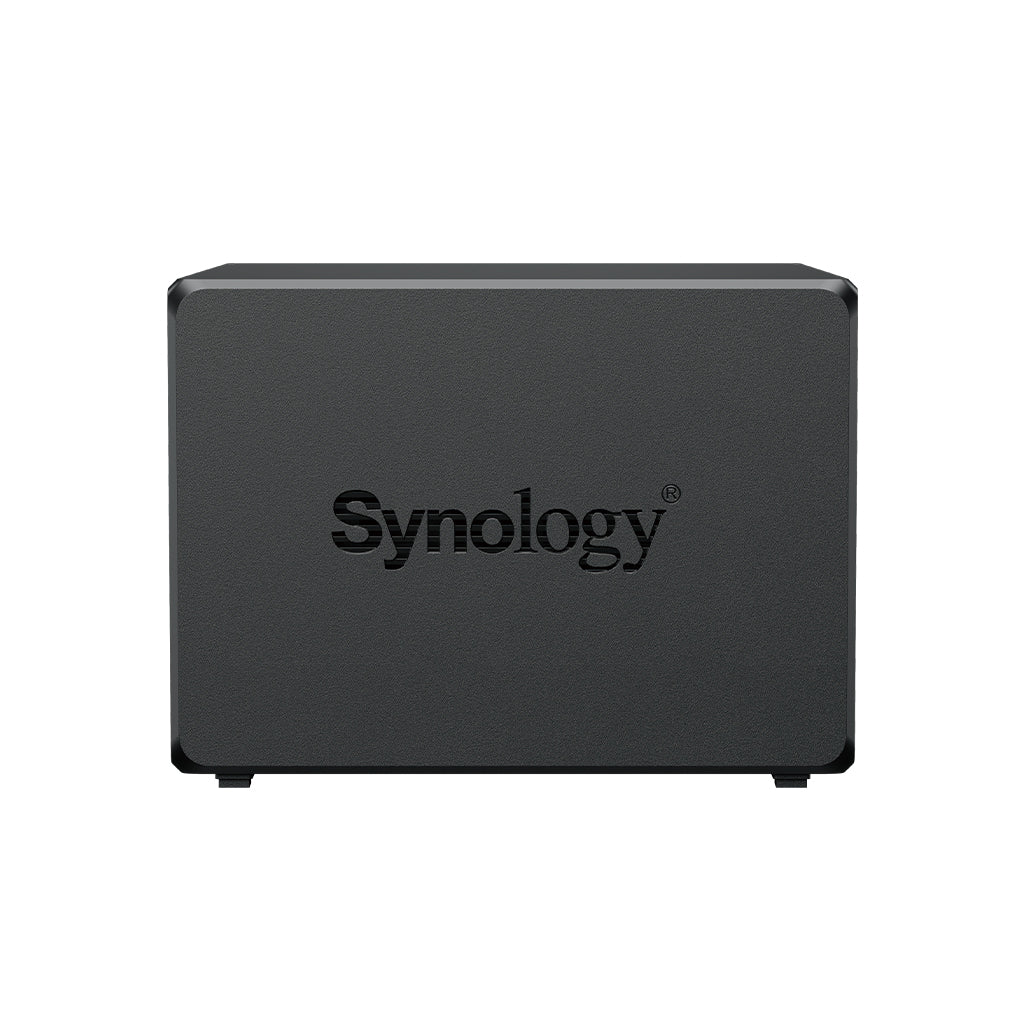

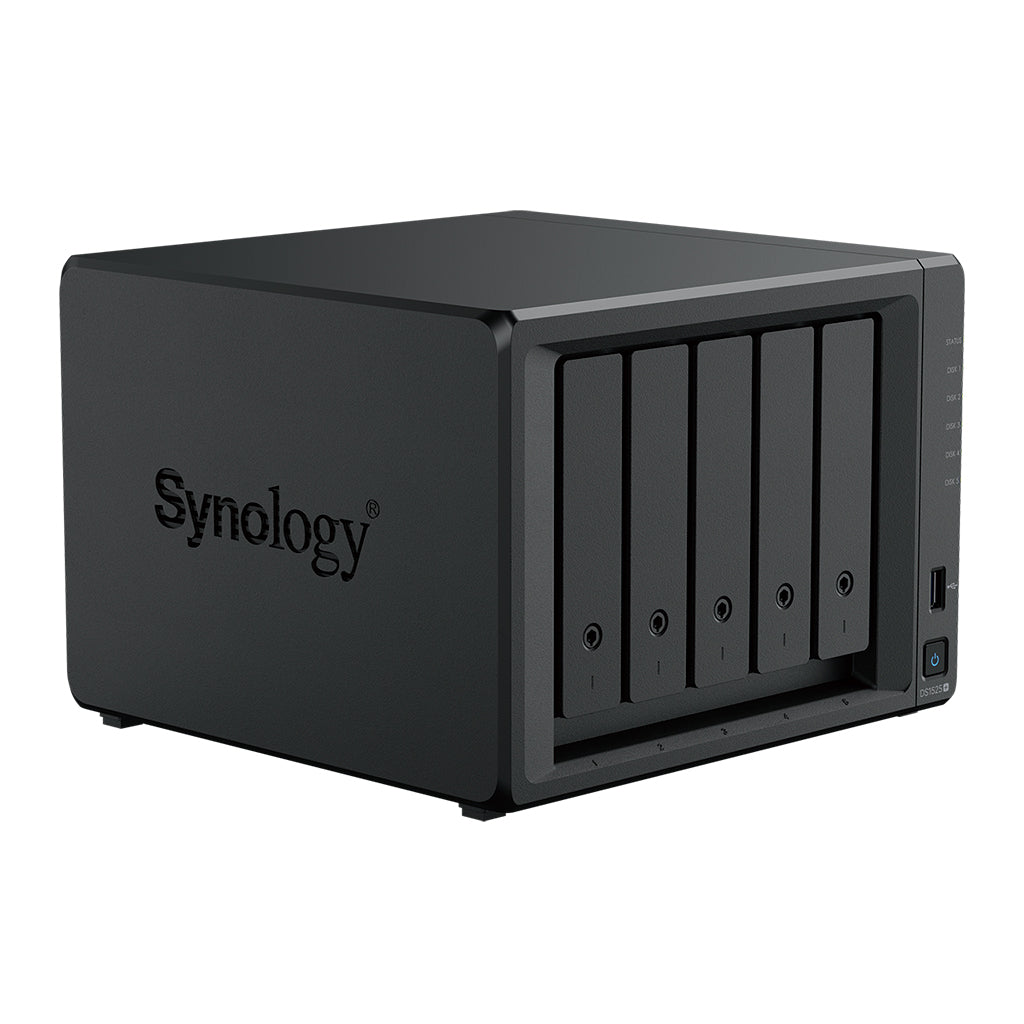

Synology DS1525+ 5 bay NAS (3 Years Manufacture Local Warranty In Singapore)
5-bay with expansion
Up to 300 TB of raw storage with expansion unit
High-speed storage
Two built-in 2.5GbE ports, over 1,181/1,180 MB/s sequential read/write, and 10GbE option
Versatile applications
|
Hardware Specifications
|
||
|---|---|---|
|
CPU
|
CPU Model | AMD Ryzen V1500B |
| CPU Quantity | 1 | |
| CPU Core | 4 | |
| CPU Architecture | 64-bit | |
| CPU Frequency | 2.2 GHz | |
| Hardware Encryption Engine | ✔ | |
|
Memory
|
System Memory | 8 GB DDR4 ECC SODIMM |
| Memory Module Pre-installed | 8 GB (8 GB x 1) | |
| Total Memory Slots | 2 | |
| Maximum Memory Capacity | 32 GB (16 GB x 2) | |
| Notes |
|
|
|
Storage
|
Drive Bays | 5 |
| Maximum Drive Bays with Expansion Unit | 15 (DX525 x 2) | |
| M.2 Drive Slots | 2 (NVMe) | |
| Drive Type (See all supported drives) |
|
|
| Hot Swappable Drive* | ||
| Notes |
|
|
|
External Ports
|
RJ-45 2.5GbE LAN Port | 2 |
| USB 3.2 Gen 1 Port | 2 | |
| Expansion Port | 2 | |
| Expansion Port Type | USB Type-C | |
|
PCIe
|
PCIe Expansion | 1 x Gen3 x2 network upgrade slot |
|
Appearance
|
Size (Height x Width x Depth) | 166 mm x 230 mm x 223 mm |
| Weight | 2.67 kg | |
|
Others
|
System Fan | 92 mm x 92 mm x 2 pcs |
| Fan Speed Mode |
|
|
| Brightness Adjustable Front LED Indicators | ✔ | |
| Power Recovery | ✔ | |
| Noise Level* | 22.60 dB(A) | |
| Scheduled Power On / Off | ✔ | |
| Wake on LAN / WAN | ✔ | |
| Power Supply Unit / Adapter | 120 watts | |
| AC Input Power Voltage | 100V to 240V AC | |
| Power Frequency | 50/60 Hz, Single Phase | |
| Power Consumption* | 44.56 watts (Access) 13.63 watts (HDD Hibernation) |
|
| British Thermal Unit | 151.95 BTU/hr (Access) 46.48 BTU/hr (HDD Hibernation) |
|
| Notes |
|
|
|
Temperature
|
Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -20°C to 60°C (-5°F to 140°F) | |
| Relative Humidity | 5% to 95% RH | |
|
Certification
|
|
|
|
Warranty
|
3-year hardware warranty, extendable to 5 years with EW201 | |
| Notes |
|
|
|
Environment
|
RoHS Compliant | |
|
Packaging Content
|
|
|
|
DSM Specifications
|
||
|---|---|---|
| Maximum Single Volume Size |
|
|
| Maximum Internal Volume Number | 32 | |
| M.2 SSD Storage Pool Support* | ✔ | |
| SSD Read/Write Cache (Determining cache size) | ✔ | |
| SSD TRIM | ✔ | |
| Supported RAID Type |
|
|
| RAID Migration |
|
|
| Volume Expansion with Larger HDDs |
|
|
| Volume Expansion by Adding a HDD |
|
|
| Global Hot Spare Supported RAID Type |
|
|
| Notes |
|
|
| Internal Drives |
|
|
| External Drives |
|
|
| File Protocol |
|
|
| Maximum Number of SMB Connections (FSCT-Based) | 40 | |
| Windows Access Control List (ACL) Integration | ✔ | |
| NFS Kerberos Authentication | ✔ | |
| Notes |
|
|
| Maximum Local User Accounts | 1,024 | |
| Maximum Local Groups | 256 | |
| Maximum Shared Folder | 256 | |
| Maximum Shared Folder Sync Tasks | 8 | |
| Hybrid Share Folder Number | 10 | |
| Data & Folder Backup | ✔ | |
| Entire System Backup | ✔ | |
| Synology High Availability | ✔ | |
| Syslog Events per Second | 800 | |
|
Virtualization
|
VMware ESXi 6.5 and VAAI | ✔ |
| Windows Server 2022 | ✔ | |
| Citrix Ready | ✔ | |
| OpenStack | ✔ | |
| Supported Protocols | SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV | |
| Supported Browsers |
|
|
| Supported Language | English, Deutsch, Français, Italiano, Español, Dansk, Norsk, Svenska, Nederlands, Русский, Polski, Magyar, Português do Brasil, Português Europeu, Türkçe, Český, ภาษาไทย, 日本語, 한국어, 繁體中文, 简体中文 | |
