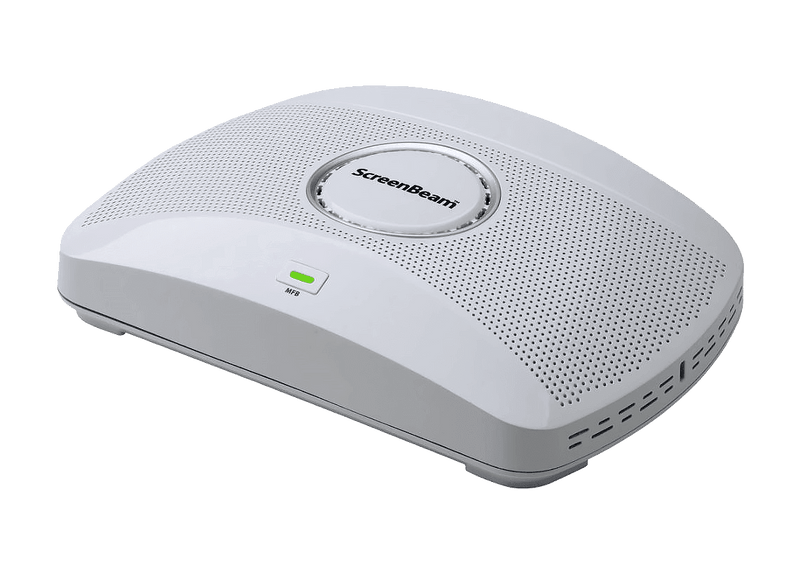

ScreenBeam 1100 Wireless Display Receiver SBWD1100 -EOL

App-free wireless screen sharing from any device to any display achieves easy employee and guest wireless collaboration in any meeting space.

" ScreenBeam 1100 delivers universal device support via enterprise-grade Miracast, AirPlay and Google Cast to eliminate connectivity issues in corporate environments. Native screen sharing means never using an app, dongle or button again."

Users get the ultimate secure wireless collaboration experience, including wireless Microsoft Office 365, touch display support, extended display, 4K video streaming, and digital signage. Combining local Wi-Fi mode connectivity with industry standard Miracast, and dual-network infrastructure connectivity with network bridge functionality delivers the most flexible deployment options for employee and guest wireless presentations.

Download ScreenBeam 1100 Datasheet

Unparalleled secure deployment options

Need flexibility to securely leverage multiple connection options simultaneously to avoid complex network configurations?
ScreenBeam 1100 uniquely combines local Wi-Fi mode with industry standard Miracast™, and dual-network infrastructure connectivity with network bridge functionality. Both employee and guest devices have plenty of options to connect to the room display, reliably, securely and easily.

Flexible deployment options reduce complexity and lower capital costs

Three separate network interfaces supporting both internal and external networks in a single device. Presenter and guest connect using Miracast™, local Wi-Fi mode or network providing more flexibility for different network policies and deployment needs.

No apps to install and maintain, or dongles or cables required

Support for native wireless display protocols means users can wirelessly present from any device without having to install and maintain an application, or use a dongle or cable.

Integrate ScreenBeam wireless display with a UC system

Merge these two technologies into a single, collaborative experience of wireless display and UC conferencing for on-site and remote participants. Plug an HDMI cable from the ScreenBeam output into the HDMI input of your UC appliance. Learn more here.

Single device for both wired and wireless connections

Combines wireless display and HDMI switching in a single device. The new HDMI Input eliminates the need for an HDMI switch so rooms are fully functional for wired and wireless connections



Multi-Network Support

No need to choose an internal or external network connection for your wireless display solution. ScreenBeam can connect to both simultaneously without compromising the security of your internal network.

Ghost Inking™ removes any wireless inking latency

Wirelessly markup content on the room display using Microsoft Windows Ink native in all Microsoft Office 365 apps – then store and share with everyone in the room instantly. Plus, Ghost Inking™ technology removes any wireless inking latency for a more intuitive and natural pen-to-paper experience.



Digital Signage for employee and guest communications

Idle displays in conference and other meeting rooms can be employed to transmit employee and guest communications with integrated HTML-based digital signage capability.



Multi-View allows up to four client devices to share content on-screen

Whether in-room or off-premise, as many as four participants can share content simultaneously during a meeting making it easier for real-time editing of materials.

Quick Switch Mode to switch between presenters without disconnecting

Presenters do not need to disconnect to allow the next presenter to assume control eliminating time-wasting delays and keeping meetings on track.

Multi-user and role-based central management of devices

Every ScreenBeam 1100 Plus includes Central Management System (CMS) Enterprise software to monitor and manage ScreenBeam receivers using a standard web browser, and support multi-user and role-based access for large deployments with multiple sites and administrators.

Three levels of security for the active connection

Connection level security support for most enterprise network certificate-based security requirements. Session level security with AES128 encryption to ensure that content is not compromised. Plus, customizable PIN pairing options providing IT/AV departments control over the user connection models so only authorized users are able to connect to the receiver.

Technical Specifications

Hardware

Video
• H.264 compression
Audio
• LCPM 2.0
Resolution¹
• Up to 4K60(HDMI), 4K30 (Windows 10 Miracast)
Ethernet
• 10/100/1000-BASE-T RJ-45 LAN

Wireless
• Miracast and Local Wi-Fi Mode: 802.11ac dual-band 3×3 MIMO
• Network Bridge: 802.11ac dual-band 2×2 MIMO
Authentication
• WPA-PSK (TKIP)

Protocol
• WPA2-PSK (AES)
• PEAP-MSCHAP V2
• EAP-TLS

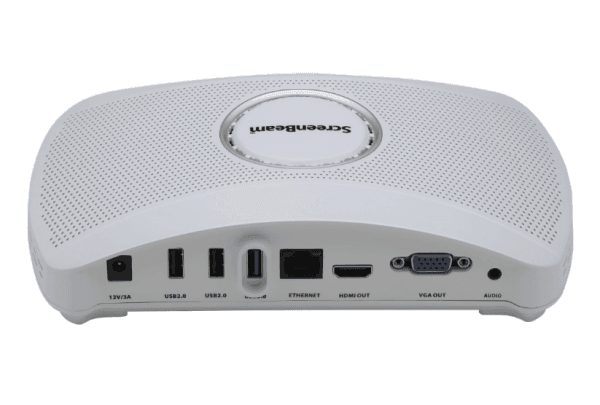

Interface
• 1 x HDMI Output
• 1 x VGA Output
• 2 x USB 2.0 Host Type-A
• 1 x USB 3.0 Host Type-A
• 1 x Analog 3.5mm audio output
• 1 x DC Power Jack

Content Protection²
• HDCP 2.x

Power
• Input: 12VDC, 3A
• Consumption: 8.4W (typical), 36W (peak)

Dimensions
• 8.66 x 5.66 x 1.99 inch (220 x 144 x 50.5 mm)

Operating temperature
• 0º – 40º C (32º – 104º F)

Storage temperature
• -20º – 85º C (-4º – 185º F)

Operating humidity
• 20 – 80% non-condensing

Storage humidity
• 10 – 90% non-condensing

Compatible OS/Device

Miracast P2P wireless display requires certified device with either:
• Windows 10 build 1607 (and later)
• Android 4.2 (and later)

Wireless display over network requires device with either:
• Windows 10 build 1709 (and later)
• Windows 7 (and later)
• macOS 10.10 (and later)
• iOS 11 (and later)
• Chrome OS 74.0.3729.159 (and later)





Language support
• English
• Simplified Chinese
• Traditional Chinese
• Japanese
• French
• German
• Dutch
• Korean
• Spanish
• Italian
• Russian

Others

Regulatory and compliance
North America:
• FCC and UL
European Nation:
• CE, RED and RoHS

¹ Actual display resolution and quality depend on the wireless/network environment
