Samsung Flip (WM55H) Digital Flipchart for Business -EOL

Save 4%
SamsungSKU: WM55H
2 reviews

Sale price$ 3,300.00 SGD Regular price$ 3,450.00 SGD


Samsung Flip (WM55H) Digital Flipchart for Business (Discontinued)

Samsung Flip 2 is now available

Samsung Flip 2 55" (WM55R) Digital Flipchart for Business

Samsung Flip 2 65" (WM65R) Digital Flipchart for Business


Transform the Modern Meeting

The meeting is the foundation of today’s business world. It also can be one of its most challenging elements. Between preparing and moving supplies, finding a room and making sure every voice is heard, it’s easy for game-changing ideas to get lost in the process. Introducing the Samsung Flip, an interactive display that drives more productive and efficient collaboration without the hassle. With the Samsung Flip, meetings can take place anywhere and at any time, with all vital elements included. Business meeting logistics no longer need to be stressful. Envision how the Samsung Flip can help you and your team work smarter, faster and better. T

  • Interactive display features from note-taking to intuitive navigation
  • Versatile connectivity and an ergonomic design
  • Innovative touch display technology for smooth writing plus UHD picture quality

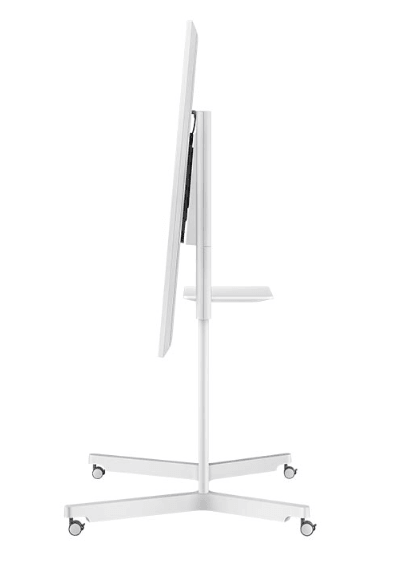

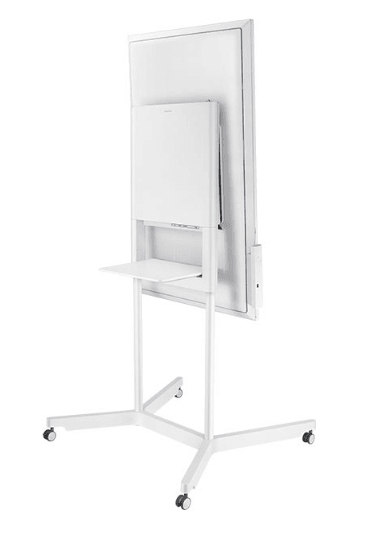

  • Portable, wheel-based stand (sold separately)




Technical Specifications

Diagonal Size 55
Type 60Hz E-LED
Resolution 3840 x 2160 (Landscape) 2160 x 3840 (Portrait)
Pixel Pitch(mm) N/A
Active Display Area(mm) N/A
Brightness(Typ.) 300 (without glass), 220 (with glass) nit
Contrast Ratio 4700:1
Viewing Angle(H/V) 178:178
Response Time(G-to-G) 8ms(Typ.)
Display Colors N/A
Color Gamut N/A
Haze N/A
Dynamic C/R N/A H-Scanning Frequency N/A
V-Scanning Frequency N/A Maximum Pixel Frequency N/A
Speaker Type Built in Speaker (10W x 2)
Input RGB N/A
Video HDMI 1
Audio N/A
Usb USB 2 (ver 2.0x2, Side 1, Sensor Assy 1)
Output RGB N/A
Video N/A
Audio N/A
Touch Out Touch Out 1 (Side, USB Upstream Type)
Power Out N/A
INTERNAL SENSOR NFC, Acceleration sensor, Proximity Sensor
External Control Touch Input RJ45 (not for User Control)
External Sensor N/A
Tuner N/A
Type InGlass™
# of Drawing 4 drawing

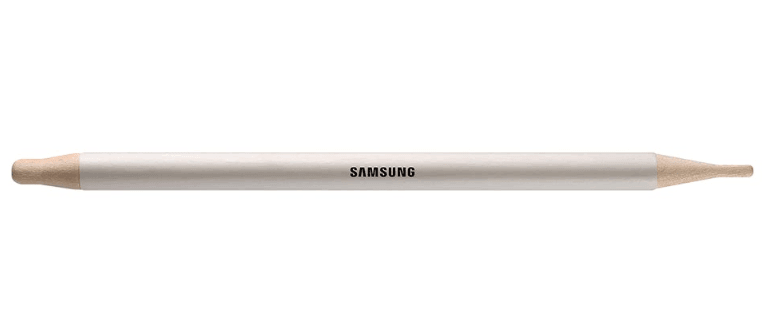

Touch Pen Type Passive Pen
Object Recognition Range 2mm/ 4mm / 8mm / 50mm
Touch Response Time 38ms ~ 46ms (According to number of Multi Drawing )
Type Internal
Power Supply AC 100~240V 50/60Hz
Power Consumption
Max[W/h] 165
Typical[W/h] 100
Rating[W/h] 150
Stand-by(Max) 0.5
BTU(Max) 562.65
Sleep mode N/A
Off mode N/A
Mechanical Specification
Dimension (mm) Set 1302.6 X 805.5 X 52.0
Package 1469 X 924 X 210
Weight (kg) Set 28.9
Package 34.9
Color Light Gray

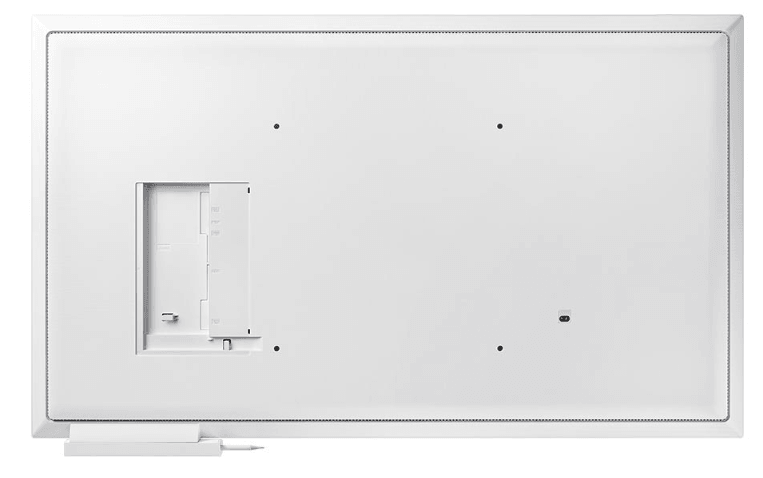

VESA Mount (mm) 400 x 400
Mounting Hole N/A
Protection Glass Yes
Stand Type Moving Stand(Acc), Wall Mount
Media Player Option Type N/A
Rotation Available with Flip Stand (Rotation Cylinder Included)
Power Cable Length 3m
Accessory Cover-Jack
Bezel Width (mm) N/A
Recommended Usage Hours N/A
Operating Temperature 0.0  ℃  ~   40.0   ℃ Humidity 10.0  %  ~   80.0   %
Key Features Flip App
Special Features H/W : Super Clear Coating, Temperature Sensor, Pivot Display, Clock Battery(168hrs Clock Keeping), Built in Speaker(10W x 2), WiFi Module Embedded S/W : Flip S/W Platform : Kant-M (Tizen 3.0)
Internal Player Processor CA72 Quad(1.7GHz)
On-Chip Cache Memory L1 (I/D) : 32KB / 32KB L2 (Unified) : 1MB
Clock Speed 1.7GHz CPU Quad
Main Memory Interface LPDDR4 1400MHz 64bit 3GB
Graphics 2D & 3D Graphics Engine - Up to 1920x1080. 32bpp - Supports OpenGL ES
Storage (FDM) 8GB (2.65GB Occupied by O/S, 5.35GB Available, )
Multimedia *Video Decoder : MPEG-1/2/4, H.263, H.264/AVC, UHD H.264/AVC, VC-1, AVS+, HEVC, JPEG, PNG, VP8, VP9 *Audio Decoder : AC3 (DD), MPEG
IO Ports USB 2.0
Operating System Samsung Proprietary OS(VDLinux)
Safety N/A
Included Passive Pen(2), Power Cable, Touch Out Cable (USB upstream)
Optional Stand STN-WM55H
Mount WMN-6575SE
Specialty Flip UX
Media Player
Media Player N/A



Download - Samsung Flip WM55H Datasheet

Download - How to Use Samsung Flip
