Description

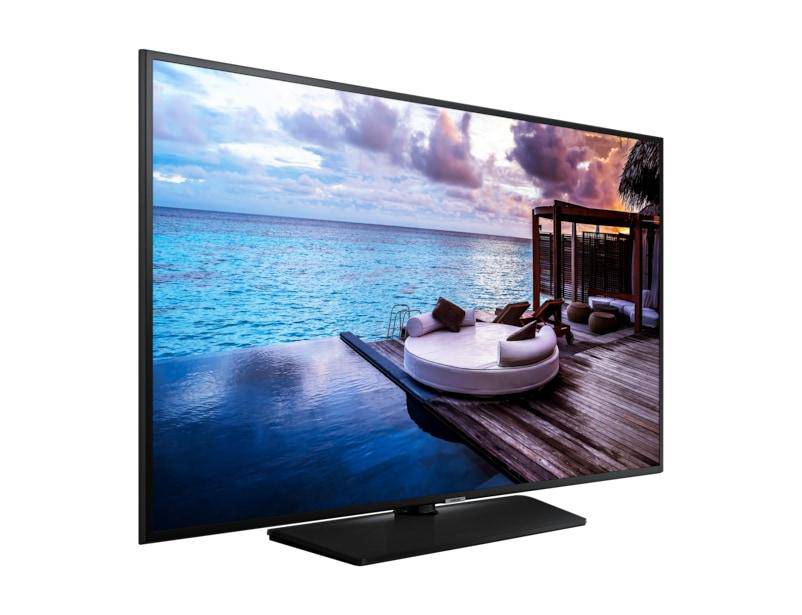

Samsung 55” 4K UHD HG55AJ690UKXXS SMART Hotel Hospitality TV for Businesses -EOL
Brilliant UHD picture quality and convenient room management that enable guests to enjoy the comforts of home.
- Elevate featured content to UHD resolution through dedicated upscaling technology
- Improve picture clarity and detail with HDR10+ refinement
- Quickly create and share personalized and promotional messaging
Foster a Premium Guest Experience
Share Intelligent, High-Quality Content
UHD-Quality Content Delivery
Refined Picture Quality
Powerful Performance, Enhanced Security
Simple, Compatible Web App Development

A Tailored Home Menu
-
End-To-End Personalized Service
Hotels additionally can use LYNK REACH 4.0 to deliver customized guest messaging. Upon arrival, guests can receive a personalized greeting along with information about promotions or on-site amenities relevant to their stay. LYNK REACH 4.0 also provides express check-out for added convenience.
Convenient and Thorough Room Management
Along with viewing their favorite content, guests can use displays to control their room’s lighting, drape and temperature settings. Samsung’s powerful LYNK HMS platform also alerts hotel operators to potential maintenance issues while offering insights into guests’ occupancy and energy usage.
Guest Satisfaction at a Reduced Cost
Samsung LYNK HMS platform drives a pleasant guest experience in a cost-friendly manner. Hotels can adjust temperature settings to match guest occupancy and eliminate the expenses of heating and cooling empty rooms. A specialized Content Management tool also simplifies venue-wide message delivery.
Centralized, Real-Time ManagementCompatible with existing LAN, Wi-Fi and coaxial infrastructures, Samsung’s LYNK REACH 4.0 content platform centralizes and streamlines overall hotel maintenance. Hotel managers now can remedy issues across single displays or display groups before they escalate.
-
Technical Specifications
Display
- Backlight : LED
- Screen Size (Inch) : 55"
- Resolution : 3840 X 2160 (4K UHD)
Video
- Picture Engine : UHD Mastering Engine
- Micro Dimming : UHD Dimming
- Auto Motion Plus: ✓
- Film Mode: ✓
Audio
- Dolby Digital Plus : ✓
- DTS Codec : N/A
- Sound Output (RMS) : 20W
- Speaker Type : 2CH
- Woofer : N/A
Smart TV
- Samsung SMART TV : Smart
Convergence
- TV to Mobile - Mirroring : N/A
- Mobile to TV - Mirroring, DLNA : ✓
General Feature
- Processor : Quad-Core
- Accessibility : ✓
Voice guide/Enlarge/ High contrast/ Multi-output Audio/Negative colors/Grayscale
- Digital Clean View : ✓
- Auto Channel Search : ✓
- Auto Power Off : ✓
- Caption (Subtitle) : ✓
- ConnectShare™ (HDD) : ✓
- ConnectShare™ (USB 2.0) : ✓
- EPG : ✓
- Game Mode : ✓
- OSD Language : Local Languages
- Picture-In-Picture : N/A
- BT HID Built-in : ✓
- USB HID Support : ✓
- Teletext (TTX) : ✓
System
- Digital Broadcasting : DVB-T2 (*VN: DVB-T2C)
- Analog Tuner : ✓
- CI (Common Interface) : N/A
- Data Broadcasting : HbbTV1.5(SG)
Hospitality Feature
- Samsung LYNK™ HMS Compatibility : ✓
- H.Browser Compatibility : ✓
- Samsung LYNK™REACH (IP) : REACH 4.0
- Samsung LYNK™REACH (RF) : REACH 4.0
- Hospitality Home Menu : ✓
- Bluetooth Music Player (Mobile → TV) : ✓
- Hospitality Plug&Play (Easy Set-up) : ✓
- Auto Source Mode : ✓
- Power on Mode : ✓
- Hotel Channel List : ✓
- Channel Menu Display : ✓
- Mixed Channel List
(ATSC, DVB-T/T2/C/S2, Analog) : ✓
- My Channel : ✓
- Energy Saving Mode (BLU control) : ✓
- Logo Display with
Time Out Setting (BMP/Movie) : ✓
- Welcome Message : ✓
- RJ12/IR pass through : ✓
- External Clock Compatibility : No
- Clock Back Up Supply :
- External Clock Dimming Control : No
- Software Clock : N/A
- Multi Code Remote Control : ✓
- Screwed Battery Cover : ✓
- Sound bar compatibility : ✓
- Music Mode
(Input : PC/AV/Component/HDMI) : ✓
- Music Mode BackLight on/off : ✓
- TTX Clock Update (Analogue) : ✓
- USB Cloning : ✓
- Smoovie Compatibility : ✓
- Soft AP : ✓
- On/Off Timer (Schedule) : ✓
- Wake-up Timer (Alarm) : ✓
- Samsung LYNK™ DRM : ✓
- Pro:Idiom : No
- bLAN : No
- IP Over Coax : No
Input & Output
- USB (Side/Rear) : 2.0
- Composite In (AV) (Side/Rear) : 1 (Common Use for Component Y)
- RF In (Terrestrial / Cable input / Satellite Input) :
1/1(Common Use for Terrestrial)/0
- Ex-Link ( RS-232C ) : N/A
- CI Slot (Side/Rear) : N/A
- HDMI A / Return Ch. Support :
- Wireless LAN Built-in :
- Anynet+ (HDMI-CEC) :
- Pillow Speaker Jack (Side/Rear) : No
- Variable Audio Out (Side/Rear) : 0/1
- Variable Audio Out Volume Control
(Side/Rear) : 0/1
- Video Out (Side/Rear) : N/A
- RJ12 (Side/Rear) : 0/1
- RJP (Remote Jackpack) (Side/Rear) : 0/1
- Headphone ID (Side/Rear) : N/A
- Door-Eye Control (Side/Rear) : No
- Door-Eye Video In (Side/Rear) : No
- PC In (D-sub)(Side/Rear) : No
- PC/DVI Audio In (Mini Jack)(Side/Rear) : No
- Ethernet Bridge (LAN-Out) : N/A
Design
- Front Color : Charcoal Black
- Stand Type : Square
- Swivel (Left/Right) : 90/90
Eco
- Energy Efficiency Class : 4.0
- Eco Sensor :
Power
- Power Supply (V) : AC100-240V 50/60Hz
- Power Consumption (Max) (W) : 150 W
- Power Consumption (Energy Saving Mode) (W) : N/A
- Power Consumption (Stand-by) (W) : N/A
- Power Consumption (Typical) : N/A
Dimension
- Set Size without Stand (WxHxD)(mm) : 1238.6 x 714.2 x 59.2 mm
- Set Size with Stand (WxHxD)(mm) : 1238.6 x 768.4 x 226.5 mm
- Package Dimension (WxHxD)(mm) : 1466 x 852 x 170 mm
Weight
- Set Weight without Stand (kg) : 17.3 kg
- Set Weight with Stand (kg) : 20.5 kg
- Package Weight (kg) : 26.5 kg
Accessory
- Remote Controller Model : TM1240A
- Batteries (for Remote Control) : ✓
- Samsung Smart Control (Included) : N/A
- Mini Wall Mount Supported : ✓
- Vesa Wall Mount Supported : ✓
- User Manual : N/A
- E-Manual : N/A
- ANT-Cable : N/A
- Power Cable : N/A
- Quick Install Guide : N/A
- PureCare Remote(Seamless White Remote) : No
- Security Screws : No
- Angle Adaptor (for Side RF tuner) : No
Resources
Download - Samsung Smart Signage Platform Catalog
Download - Samsung HG55AJ690UKXXS 4K UHD Signage Datasheet
