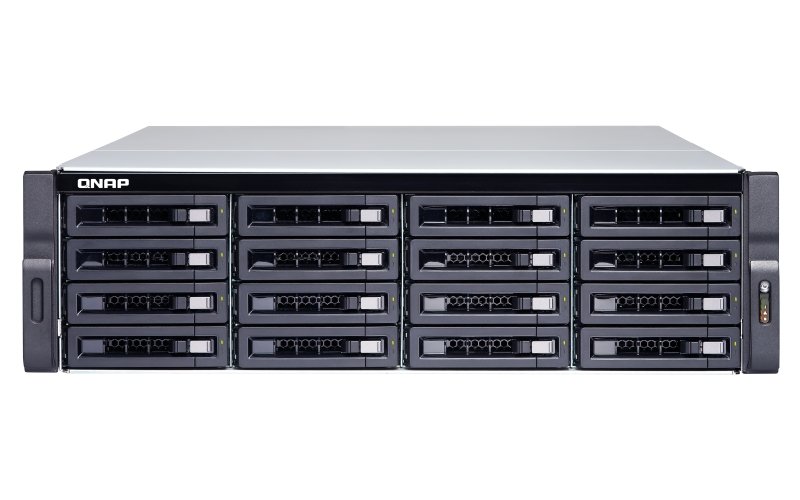

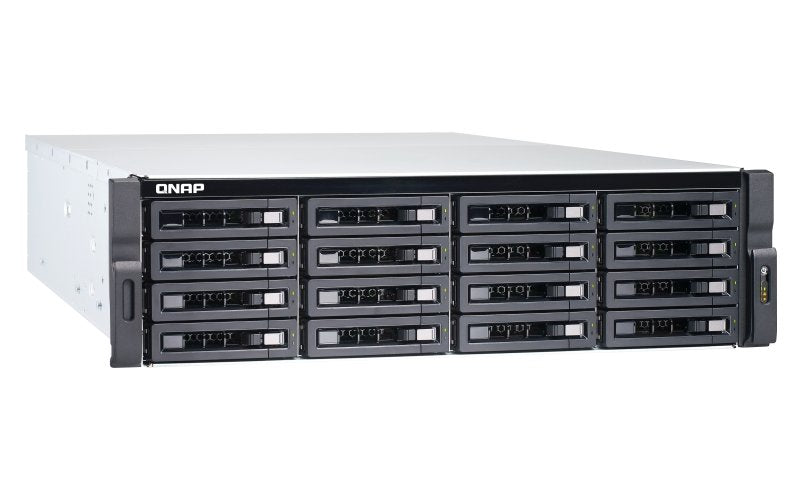

Qnap TS-1683XU-RP-E2124-16G Network Attached Storage NAS

Save 5%
QnapSKU: TS-1683XU-RP-E2124-16G
No reviews
American Express Apple Pay Google Pay GrabPay Mastercard PayNow PayPal Visa

Price:
Sale price$ 5,900.00 SGD Regular price$ 6,200.00 SGD

Description

Qnap TS-1683XU-RP-E2124-16G

Server-grade Intel® Xeon® E processor and ECC memory for high performance and reliability



Features

The Intel® Xeon® E based TS-1683XU-RP enterprise NAS with up to 128 GB DDR4 ECC (Error Correcting Code) memory delivers server-grade performance with dependable reliability. It features 10GbE SmartNIC controllers that not only fulfill bandwidth-demanding applications but also support iSER to offload CPU workloads with boosted virtualization performance, while PCIe expansion allows for installing graphics cards to empower video surveillance, virtualization and AI applications. The performance-driven TS-1683XU-RP provides you with advanced business-ready features, including software-defined SSD extra over-provisioning, software-defined networking & virtual switch, and much more.



Qnap TS-1683XU-RP-E2124-16G Network Attached Storage NAS

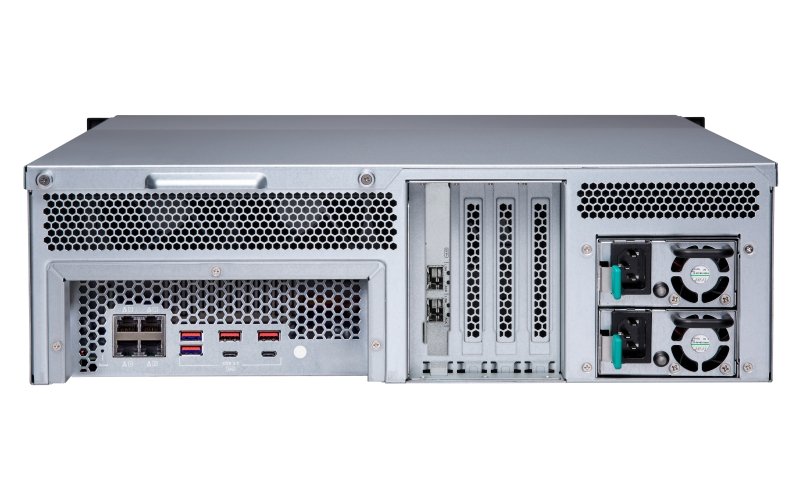

  1. Intel® Xeon® E processor
  2. DDR4 ECC memory
  3. 4x Gigabit Ethernet ports
  4. USB 3.1 Gen2 ports
  5. 4x PCIe expansion slots
  6. System fans
  7. Power supply unit
  8. 2x 10GbE SFP+ ports



Dual 10GbE connectivity optimizes high-speed data transfer and VMware virtualization with iSER

The TS-1683XU-RP provides two 10GbE SFP+ ports that use the Mellanox® ConnectX®-4 Lx SmartNIC controller. They support the iSCSI Extensions for RDMA (iSER) protocol, allowing data to bypass general network drivers, the socket layer, and to directly enter memory buffers of the ESXi server and storage to offload CPU workloads. When both the VMware® server and the TS-1683XU-RP support iSER, it can provide up to 60% increased random read/write performance and 50% decreased latency, providing an essential tool to optimize demanding virtualization applications.



Qnap TS-1683XU-RP-E2124-16G Network Attached Storage NAS

Recommended usage of PCIe slots

The TS-1683XU-RP provides multiple PCIe slots. To ensure that the SATA drives have sufficient bandwidth, it is recommended to only use low-end expansion cards, (such as a 1GbE NIC, USB 3.0 card, or Wi-Fi adapter) with the PCIe Gen2 slot (Slot 1) as this slot is connected to the PCH. For high-end expansion cards (including 10GbE/40GbE NICs, SAS cards, Mustang-200 acceleration card, and graphics cards), it is recommended to use PCIe Gen3 slots (Slot 2, 3, 4) as these slots are connected to the CPU.



Qnap TS-1683XU-RP-E2124-16G Network Attached Storage NAS

Empower GPU-accelerated computing with graphics cards

Graphics cards are optimized for graphical calculations and transformations. The TS-1683XU-RP provides PCIe slots for installing an AMD Radeon™ or NVIDIA® graphics card to boost data-intensive AI machine learning, while also providing benefits for imaging processing and virtual machine performance (via GPU passthrough).

Note:
1. 3U/4U models support high-profile graphics cards that require external power; 1U/2U models support low-profile graphics cards that do not require additional external power (For example, the NVIDIA GT1030).
2. GPU support for QTS only applies to NVIDIA graphics cards. GPU Passthrough for VM is supported by AMD and NVIDIA graphics cards.
3. When Virtualization Station uses graphics cards, the NAS will temporarily stop hardware transcoding acceleration for QTS (and vice versa).
4. Always consult the Compatibility List for supported NAS and graphics cards before purchasing a graphics card for the NAS.



Qnap TS-1683XU-RP-E2124-16G Network Attached Storage NAS

SSD caching and auto tiering enable 24/7 optimized storage efficiency

By enabling Qtier™ auto-tiering on the TS-1683XU-RP, organizations can just buy the amount of SSDs needed, and attain the highest value/performance and optimal storage efficiency for data storage and sharing.

Improve random data access speeds with an SSD cache
SSD caches accelerate IOPS performance and reduce latency for storage volumes. They are perfect for IOPS-demanding applications (including databases and virtualization) and can significantly improve overall workflows. The TS-1683XU-RP also supports write-only SSD caches to greatly boost write-intensive applications and also RAID 5/6 SSD caches for higher performance and caching space.

Maximize the value of SSDs with Qtier Technology
Qtier™ Technology empowers the TS-1683XU-RP with auto tiering that helps continuously optimize storage efficiency by automatically moving data between 2.5-inch SSDs and high-capacity HDDs based on the data's access frequency. Qtier™ 2.0 features IO-awareness that empowers SSD-tiered storage with a cache-like reserved space to handle burst I/O in real time, greatly maximizing the advantages of SSDs.



Qnap TS-1683XU-RP-E2124-16G Network Attached Storage NAS

Up to 128 monitoring channels in QVR Pro for well-rounded security surveillance

The TS-1683XU-RP supports QVR Pro surveillance solution with 8 license-free channels for surveillance monitoring, which can be expanded up to 128 channels* with additional channel license purchase for a more extensive security deployment. QVR Pro supports over 5,000 IP cameras, including all of the standard fisheye cameras available on the market. There are more advanced features for fully unleashing the potential of fisheye cameras: allowing a single fisheye camera’s image to be simultaneously viewed in nine channels from different angles, and cross-platform hardware-accelerated decoding for fisheye camera images. QVR Pro ensures higher surveillance performance for greater security while providing deployment flexibility and budget-savings.



Qnap TS-1683XU-RP-E2124-16G Network Attached Storage NAS



Flexibly allocate physical and virtual network resources to simplify network deployment

The Network & Virtual Switch application allows you to leverage limited physical network resources for unlimited virtual applications and centrally manage the entire network structure with a brilliantly-visualized network topology map. Flexible manageability enables you to reorganize physical and virtual network connections with greater ease, so you can allocate adequate network resources to the TS-1683XU-RP, virtual machines and containers whenever needed. The network deployment is greatly simplified while your network management efficiency is greatly improved.



Qnap TS-1683XU-RP-E2124-16G Network Attached Storage NAS



Hardware Specs

CPU Intel® Xeon® E-2124 4-core 3.3 GHz processor (burst up to 4.3 GHz)
CPU Architecture 64-bit x86
Floating Point Unit
Encryption Engine  (AES-NI)
System Memory 16 GB UDIMM DDR4 ECC (2 x 8GB)
Maximum Memory 128 GB (4 x 32 GB)
Memory Slot 4 x UDIMM DDR4
Flash Memory 5GB (Dual boot OS protection)
Drive Bay 16 x 3.5-inch SATA 6Gb/s, 3Gb/s
Drive Compatibility 3.5-inch bays:
3.5-inch SATA hard disk drives
2.5-inch SATA hard disk drives
2.5-inch SATA solid state drives
Hot-swappable
SSD Cache Acceleration Support
Gigabit Ethernet Port (RJ45) 4
10 Gigabit Ethernet Port 2 x 10GbE SFP+ SmartNIC port
Wake on LAN (WOL)
Jumbo Frame
PCIe Slot 4
Slot 1: PCIe Gen 2 x4 (PCH)
Slot 2: PCIe Gen 3 x8 (CPU)
Slot 3: PCIe Gen 3 x4 (CPU)
Slot 4: PCIe Gen 3 x4 (CPU)
Slot 4 is preinstalled with a 10GbE network adapter
USB 3.2 Gen 2 (10Gbps) Port 2 x Type-C USB 3.2 Gen 2 10Gbps
4 x Type-A USB 3.2 Gen 2 10Gbps
Form Factor 3U Rackmount
LED Indicators HDD 1-16, Status, LAN, storage expansion port status
Buttons Power, Reset
Dimensions (HxWxD) 130 × 481 × 573.5 mm
Weight (Net) 13.76 kg
Weight (Gross) 21.79 kg
Operating temperature 0 - 40 °C (32°F - 104°F)
Storage Temperature -20 - 70°C (-4°F - 158°F)
Relative Humidity 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
Power Supply Unit 500W(x2), 100-240V
Power Consumption: Operating Mode, Typical 130.43 W
Tested with drives fully populated.
Fan System fan: 3 x 80mm, 12VDC
System Warning Buzzer
Max. Number of Concurrent Connections (CIFS) - with Max. Memory 10000

Note: Use only QNAP memory modules to maintain system performance and stability. For NAS devices with more than one memory slot, use QNAP modules with identical specifications.
Warning: Using unsupported modules may degrade performance, cause errors, or prevent the operating system from starting.
* Sound Level Test
Environment: Refer to ISO 7779; Maximum HDD loaded; Bystander Position; Average data from 1 meter in front of operating NAS.
Product images are for illustrative purposes only and may differ from the actual product. Due to differences in monitors, colors of products may also appear different to those shown on the site.
Designs and specifications are subject to change without notice.

Software Specs

Operating System

QTS 5.0.0

Supported Client Operating Systems
  1. Apple Mac OS 10.10 or later
  2. Ubuntu 14.04, CentOS 7, RHEL 6.6, SUSE 12 or later Linux
  3. IBM AIX 7, Solaris 10 or later UNIX
  4. Microsoft Windows 7, 8, 10 and 11
Show more...
Supported Browsers
  1. Apple Safari (latest version)
  2. Google Chrome (latest version)
  3. Microsoft Edge (latest version)
  4. Mozilla Firefox (latest version)
Supported Languages

Chinese (Traditional & Simplified), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Brazil), Romanian, Russian, Spanish, Swedish, Thai, and Turkish

Storage Pool



SED Storage Pool



Maximum Pool size

308 TB

Maximum number of storage pool

128

Volume Type

Thick, Thin, Static

Maximum volume size

250 TB

Note: At least 4 GB RAM is required.

Maximum number of volume

128

Maximum shared folder size

250 TB

Maximum number of shared folder

512

JBOD Expansion



VJBOD / VJBOD Cloud



iSCSI Service



Fibre Channel Service



LUN Type

Thick, Thin

File-based iSCSI LUN



Block-based iSCSI LUN



Maximum LUN size

250 TB

Note: At least 4 GB RAM is required.

Maximum number of targets LUN

256

LUN feature
  1. LUN Mapping (LUN can be moved between iSCSI and FC)
  2. LUN Masking
  3. WWPN Aliases Import/Export
  4. FC Port Group
Show more...
Auto Tiering



RAID Type
  1. 8-bay (and more): JBOD, Single, RAID 0, 1, 5, 6, 10, 50, 60
  2. 6-bay: JBOD, Single, RAID 0, 1, 5, 6, 10, 50
  3. 4-bay: JBOD, Single, RAID 0, 1, 5, 6, 10
  4. 2-bay: JBOD, Single, RAID 0, 1
RAID Group



To ensure data security, system stability, and storage performance, the maximum number of drives for a single RAID group is now 16 (applicable to RAID 5, RAID 6, RAID TP, and subgroups of RAID 50 and RAID 60). Nevertheless, users can combine multiple RAID groups into a large storage pool that contains more than 16 drives, using RAID 50, RAID 60, or RAID 10 as the RAID configuration. This enhancement will only be applied to new RAID groups. All existing RAID groups and storage systems will not be affected.

RAID Level Migration



RAID Expansion (by adding Disk)



RAID Expansion (by replacing bigger Disks)



Storage Pool Expansion (by adding RAID Group)



RAID Hot Spare

Global, Local

RAID Sync/Rebuild/Scrubbing



Internal drive

EXT4

External drive

EXT3, EXT4, NTFS, FAT32, HFS+, and exFAT (optional for ARM model)

Note: To use exFat in certain models you must purchase an exFAT driver license from License Center.

Disk, Enclosure Locate



Disk S.M.A.R.T. Scan



Disk S.M.A.R.T. Data Migration



Ironwolf Health Management



Secure Erase



SSD Trim



SSD Life Estimation



Disk Roaming



Disk Standby



Volume Snapshot



LUN Snapshot



Maximum Snapshot (Per System)

Check maximum number of snapshots of your NAS

Maximum Snapshot (Per Volume / LUN)

Check maximum number of snapshots of your NAS

Minimum Snapshot Interval

5 minutes

Snapshot Retention Policy



Self-serve Snapshot Recovery



Application Consisted Snapshot



Snapshot Full Clone



Snapshot Replica / Vault



SSD read-only Cache



SSD read-write cache



SSD write-only cache



SSD Cache Maximum Size

Check your QNAP NAS cache capacity and RAM requirements

SSD Cache RAID

0, 1, 5, 6, 10

SSD profiling tool



External Device Management



Mount Smart Phone (MTP)



External RAID Device (QNAP so on) Management (External Device Mode)



External RAID Device (QNAP so on) Management (NAS Mode)



File Server
  1. File sharing across Windows, Mac, and Linux/UNIX
  2. Microsoft networking (CIFS/SMB)
  3. Apple networking (AFP)
  4. NFS version 3/4 services
FTP Server
  1. QuFTP
  2. FTP, SFTP and TFTP protocols
  3. FTP over SSL/TLS (explicit FTPS)
  4. FXP support
Maximum FTP connection

1024

File Station (Web)



Object Storage



Local user account

4,096

Local group account

512

Domain user/group account

200,000

Domain Security



Domain Controller



Shared folder permission



Advanced folder permission

, (AFP, CIFS/SMB, FTP, and File Station)

Windows ACL

, (CIFS/SMB)

User quota



Group quota



Folder quota

, (Snapshot shared folder)

Home folder



Resource Monitor



SNMP

V2, V3

Network recycle bin
  1. Recover files deleted using AFP, CIFS/SMB, and File Station
  2. Automatic cleanup and file type filter
System Log & Notification Center

Log recording: 3,000 event per hour

Smart Fan



Schedule on/off



Internet protocol

IPv4, IPv6

Virtual Switch



Port trunking

, (7 modes)

VLAN



DHCP Server



DDNS (Dynamic Domain Name Service)



Network access protection with auto-blocking

SSH, Telnet, HTTP(S), FTP, CIFS/SMB, and AFP

Security Counselor



Malware Remover



AES 256-bit Volume Encryption validated by FIPS 140-2 CAVP



2-step verification



Allow/Deny List



Access Protection



Service binding



Firewall



VMware vSphere Ready



Windows Server certifcated



Citrix Ready



vSphere Web Client Plug-in



VMware vSphere VAAI for iSCSI



VMware vSphere VAAI for NAS



Windows ODX



Windows/VMware Snapshot Agent



HTTP/HTTPS Connections

TLS 1.0/1.1/1.2/1.3

Supports WebDAV Connection



Supports Virtual Hosts

32

Qsync



Note: At least 1 GB RAM is required.

[Qsync] Management Mode

User customization, Central

[Qsync] Qsync client supported platforms

Windows, macOS, Ubuntu, Android, and iOS

[Qsync] Maximum number of version control

64

HybridMount



Note: At least 1 GB RAM is required.

[HybridMount] File Cloud Gateway

Concurrent Connections = 20 Upload & 20 Download

[HybridMount] Network Drive Mount



[HybridMount] Free cloud gateway sessions

2

HBS (Hybrid Backup Sync)



Note: At least 1 GB RAM is required.

[HBS (Hybrid Backup Sync)] NAS to NAS backup



[HBS (Hybrid Backup Sync)] NAS to rsync backup



[HBS (Hybrid Backup Sync)] NAS to FTP backup



[HBS (Hybrid Backup Sync)] Cloud Backup



[HBS (Hybrid Backup Sync)] Cloud Sync



[HBS (Hybrid Backup Sync)] 2-way and Active Sync



[HBS (Hybrid Backup Sync)] Backup Deduplication



[HBS (Hybrid Backup Sync)] Real-time backup



[HBS (Hybrid Backup Sync)] Apple Time Machine Backup



[HBS (Hybrid Backup Sync)] External drive backup



[HBS (Hybrid Backup Sync)] Maximum number of backup job

400

Hyper Data Protector



Boxafe



Note: At least 1 GB RAM is required.

[Boxafe] Office 365 Backup



[Boxafe] Google Workspace Backup



[Boxafe] Full-text search



Qsirch



Note: This feature is supported by all QNAP NAS devices with at least 2 GB of memory

[Qsirch] Previews

Photos, music, videos, PDFs, Gmail, and others

[Qsirch] Integrate Mac Finder



[Qsirch] Advanced picture search



[Qsirch] Search filters



QuMagie



Note: At least 1 GB RAM is required.

[QuMagie] Browse photos



[QuMagie] Virtual and smart albums



[QuMagie] AI-assisted photo management

People, things, places, and others

Antivirus (free)



McAfee (License)



QVPN Service



Note: At least 1 GB RAM is required.

[QVPN Service] Remote Access

PPTP, L2TP/IPSec, OpenVPN, WireGuard, QBelt (QNAP proprietary)

[QVPN Service] Supportedd utility and mobile app

Windows, macOS, iOS, and Android

[QVPN Service] Supported maximum clients

100

HD Station



LDAP Server



RADIUS



SQL server



License Center



Multimedia Console



Photo Station



Music Station



Video Station



Download Station



Notes Station



Qfiling



Media Streaming add-on



QmailAgent



QuWAN



DA Driver Analyzer



Q'center



Note: The application is available in the App Center and in virtual appliance marketplaces (VMware vSphere ESXi and Microsoft Hyper-V).

Q'center Server



Q'center Agent



Connect to Q'center



Virtualization Station



Note: At least 4 GB RAM is required.

[Virtualization Station] Supports Virtual machine instances

Windows, Linux, Unix, and Android

[Virtualization Station] VM importing, exporting, cloning, snapshot capturing, backup, and restoration

All function is Fine.

[Virtualization Station] Virtual switches

Can create a virtual switch

[Virtualization Station] GPU pass-through

Not support GPU

[Virtualization Station] Suggested number of virtual machine instances

4

Note: the actual number of virtual machine instances supported may vary by the memory installed on NAS.

Container Station



Note: At least 1 GB RAM is required.

[Container Station] Supported type

LXC/LXD and Docker

Note: LXD has been supported after Container Station 2.4

[Container Station] Docker Hub Registry



[Container Station] Container importing and exporting



[Container Station] Console mode



Linux Station



Supports Linux Station versions

16.04, 18.04, and 20.04

Linux Station Center



QVR Pro



Note: At least 4 GB RAM is required. The maximum number of channels supported varies by NAS model, network configuration, and camera settings. For more information, visit https://www.qnap.com/go/qvr-nas-selector.

[QVR Pro] Recording Technique

Index database based

[QVR Pro] License Type

Perpetual

[QVR Pro] User-defined trigger events



[QVR Pro] Metadata



[QVR Pro] QVR Pro Client (Desktop)

Windows, macOS, and QNAP HybridDesk Station

[QVR Pro] QVR Pro Client (Mobile)

Android and iOS

[QVR Pro] Recording camera streams

H.264

[QVR Pro] Free built-in camera channels

8

QVR Elite



Note: At least 1 GB RAM is required. The maximum number of channels supported varies by NAS model, network configuration, and camera settings. For more information, visit https://www.qnap.com/go/qvr-nas-selector.

[QVR Elite] Recording Technique

Standard MP4 file based

[QVR Elite] License Type

Subscription-based

[QVR Elite] User-defined trigger events



[QVR Elite] QVR Pro Client (Desktop)

Windows, macOS, and QNAP HybridDesk Station

[QVR Elite] QVR Pro Client (Mobile)

Android and iOS

[QVR Elite] Recording camera streams

H.264

[QVR Elite] Free built-in camera channels

2

QVR Pro Client



[QVR Pro Client] Dynamic View Layout



[QVR Pro Client] Windows



[QVR Pro Client] Mac



[QVR Pro Client] HybridDesktop



[QVR Pro Client] iOS



[QVR Pro Client] Android



QVR Center



Note: At least 4 GB RAM is required.

[QVR Center] Log management



[QVR Center] Central monitoring across multiple servers



QVR Guard



Note: At least 4 GB RAM is required.

[QVR Guard] Failover design



[QVR Guard] Viewing task details



[QVR Guard] Automatic switch between Standby and Takeover modes



QVR Human



QVR Face



The maximum number of channels supported varies by NAS model, network configuration, and camera settings. For more information, visit https://www.qnap.com/solution/qvr-face/en-us/

QVR DoorAccess




Note:
QTS does not support DRM content and some IPv6 services.
Some data encryption features may be unavailable because of country-specific legislative restrictions.
Some features may vary by model.
Designs and specifications are subject to change without notice.

Package Contents

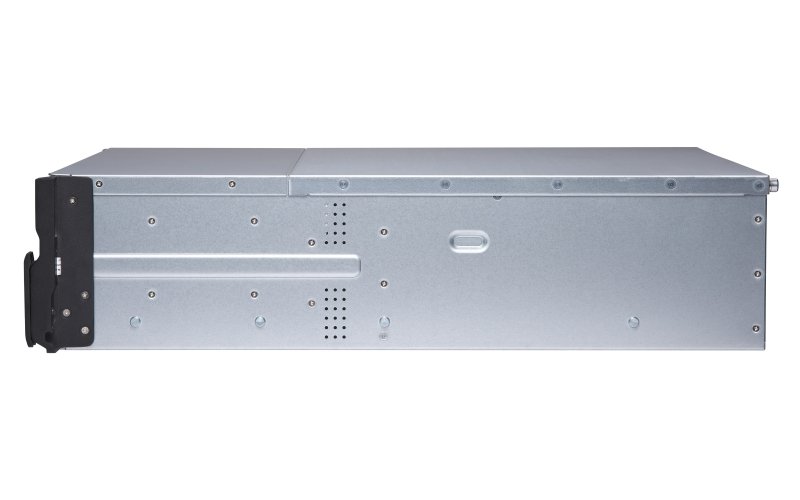

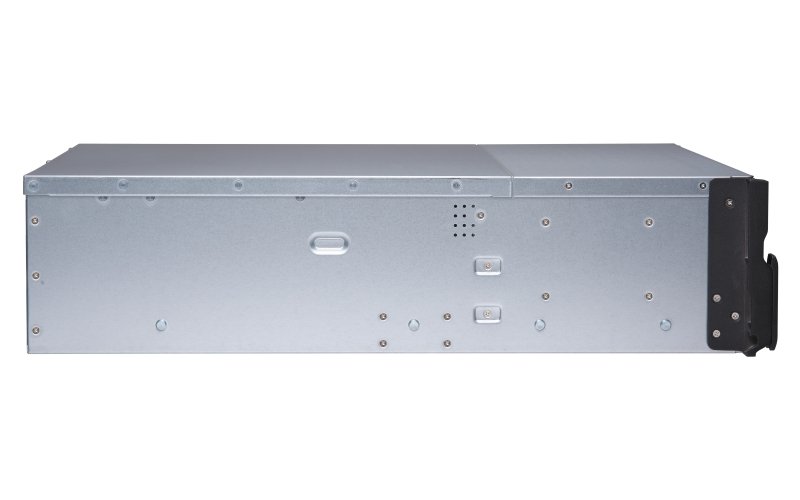

TS-1683XU-RP

TS-1683XU-RP

Ethernet Cable x 2

Ethernet Cable x 2

Power Cord x 2

Power Cord x 2

Flat head screw x 64 (for 3.5

Flat head screw x 64 (for 3.5" HDD)

Flat head screw x 64 (for 2.5

Flat head screw x 64 (for 2.5" HDD)

Quick Installation Guide (QIG)

Quick Installation Guide (QIG)




Optional

RAIL-A03-57
RAM-32GDR4ECS0-UD-2666

Payment & Security

American Express Apple Pay Google Pay GrabPay Mastercard PayNow PayPal Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

You may also like

Procurement Platform

Vendors GOV GEBIZ LOGO
sesami
