Description

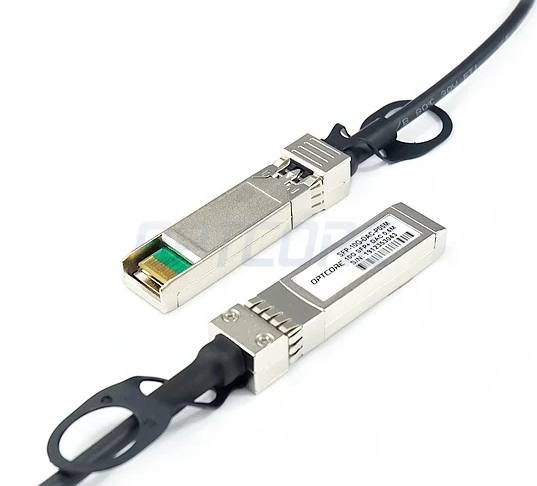

QNAP CAB-DAC30M-SFPP SFP+ 10GbE twinaxial direct attach cable 3m (QN-CAB-DAC30M-SFPP) (1 Year Manufacture Local Warranty In Singapore)
QNAP CAB-DAC30M-SFPP Compatible 10G SFP+ Direct Attach Copper Cable (3-meter, AWG30, Passive)
This QNAP CAB-DAC30M-SFPPcompatible DAC provides high performance and cost-effective SFP+ direct attach copper cable with a length of 3 meters (10 ft). It supports the bandwidth transmission requirements as defined by 10 Gigabit-Ethernet (10GBase-CU), 8G Fiber Channel (FC) and 10G Fiber Channel over Ethernet (FCoE). Every cable is individually programmed and tested to work with QNAP 10G switches, routers, network adapters, and network storage systems. It offers a low-cost alternative to genuine QNAP CAB-DAC30M-SFPP high-speed cable assemblies.
Features
• Functionally identical to QNAP CAB-DAC30M-SFPP
• Support for multi-gigabit data rates up to 10.5Gbps
• I/O Connector designed for high-speed differential signal applications
• Improved Pluggable Form Factor (IPF) compliant with enhanced EMI/EMC performance
• Single 3.3V power supply
• Operating temperature range: 0 to 70°C
• RoHS Compliant and Lead-Free
Specification
|
Manufacturer |
QNAP Systems |
| Manufacturer Part Number | CAB-DAC30M-SFPP |
| Manufacturer Website Address | http://www.qnap.com |
| Brand Name | QNAP |
| Product Model | CAB-DAC30M-SFPP |
| Product Name | 3.0M SFP+ 10GBE Direct Attach Cable |
| Product Type | Network Cable |
| Cable Type | Twinaxial |
| Cable Length | 3m |
| Minimum cable bend radius | 25 mm |
| Connector Type on First End | SFP+ Network |
| Connector on First End Details | 1 x SFP+ Network |
| Connector Type on Second End | SFP+ Network |
| Connector on Second End Details | 1 x SFP+ Network |
| Features | Passive, Lead-free |
| Device Supported | NAS Storage Device, Network Device, Network Card, Switch, Router, Server, Network Adapter |
| American Wire Gauge | 30 AWG |
| Data Transfer Rate | 10 Gbit/s |
| Product Material | Copper |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Weight (Approximate) | 0.18 kg |
| Environment | Operating: 0°C to 70°C |
| Storage: -40°C to 85°C | |
| Supply Voltage | 3.3V |
| Cable impedance | 100 Ω |
| Application | Storage Area Networks( SAN) |
| Network Attached Storage | |
| Switched fabric I/O | |
| High density connections between networking equipment | |
| Data center cabling infrastructure |
