Description

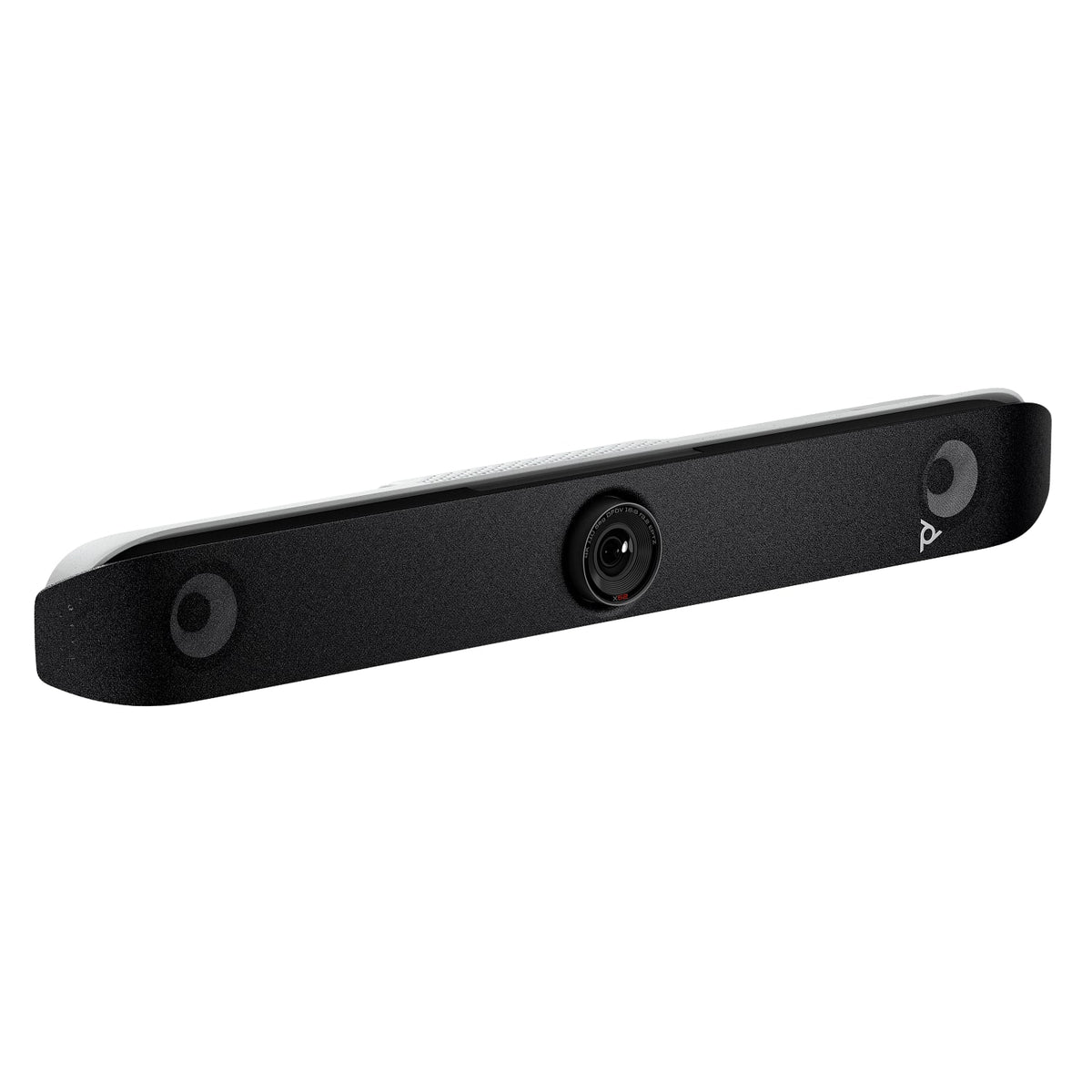

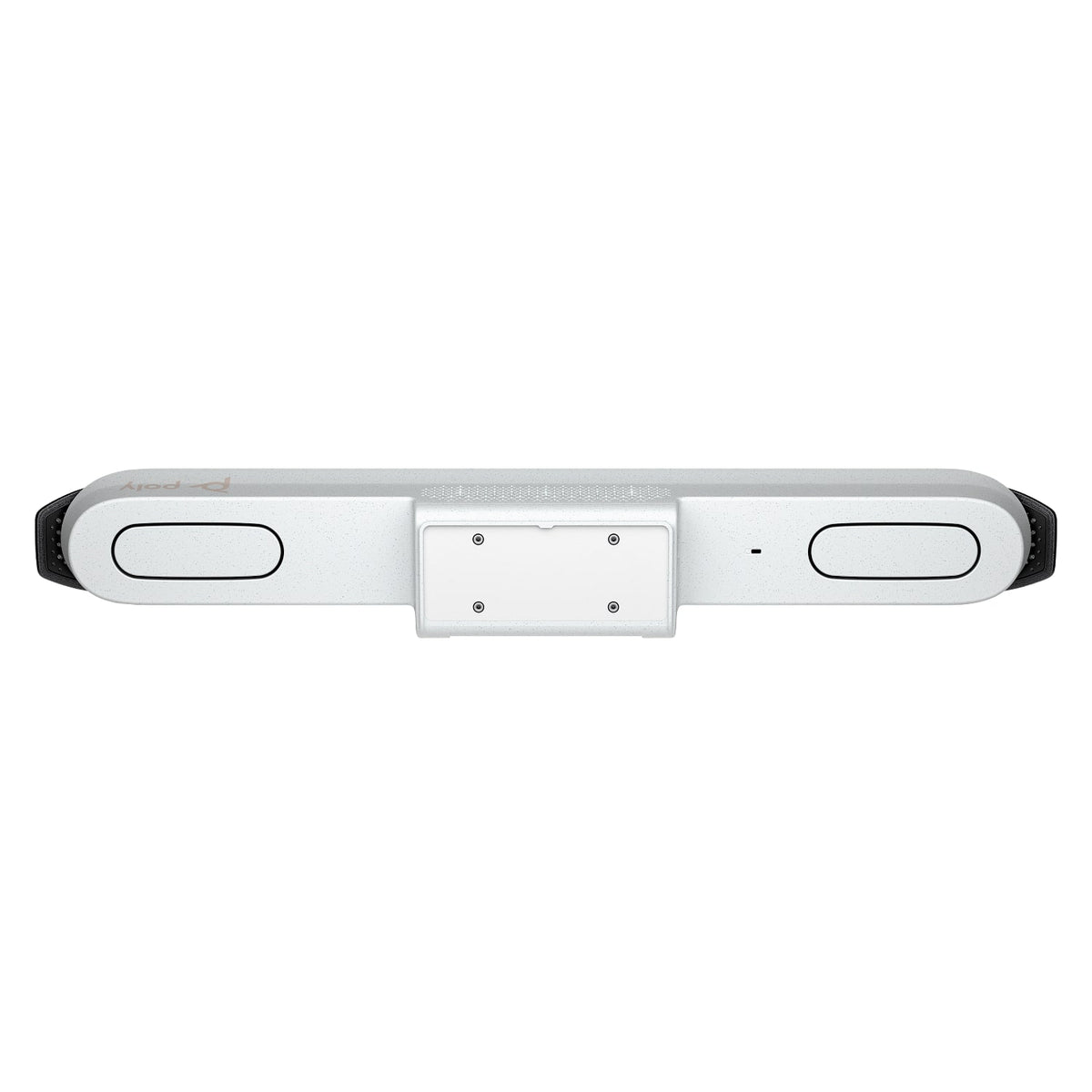

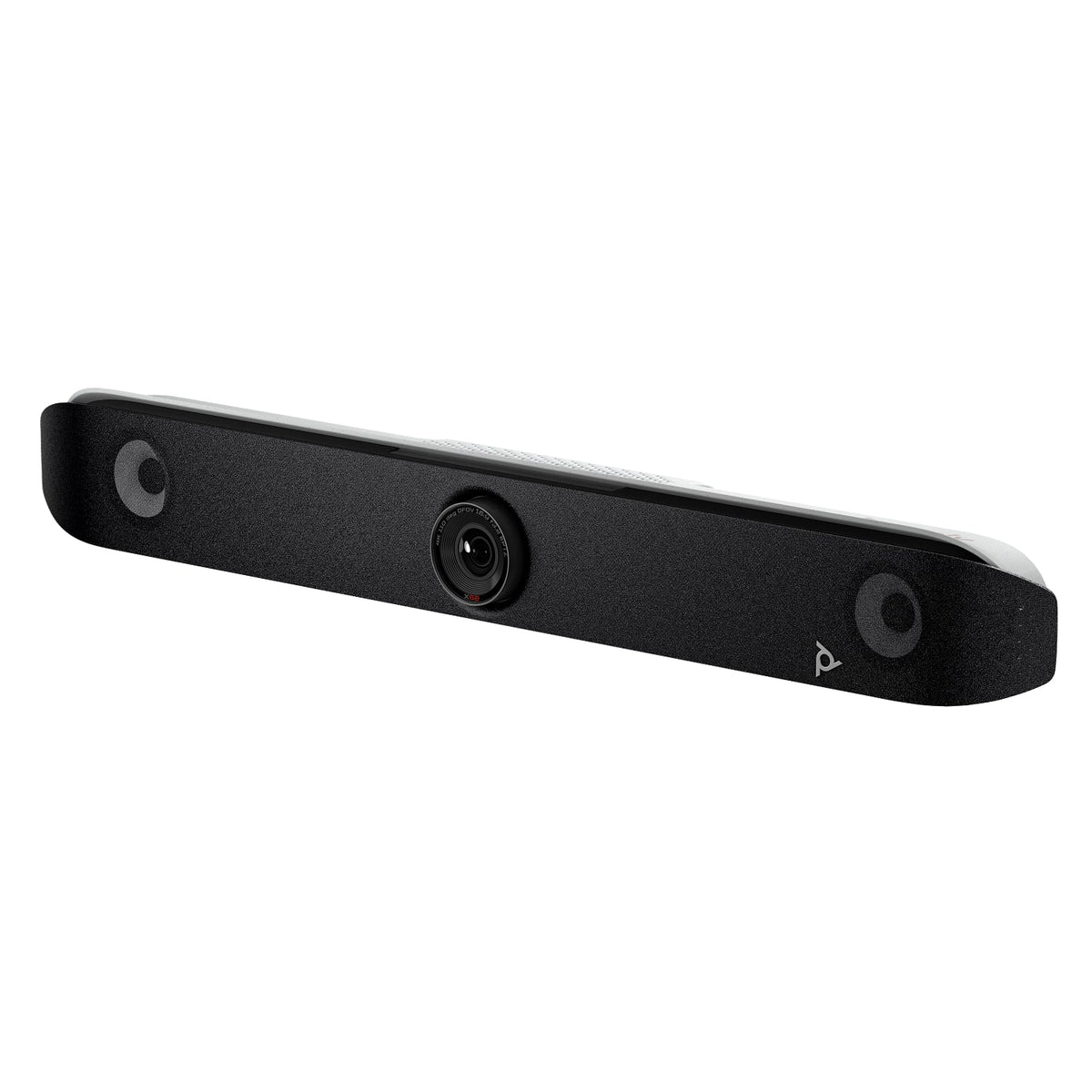

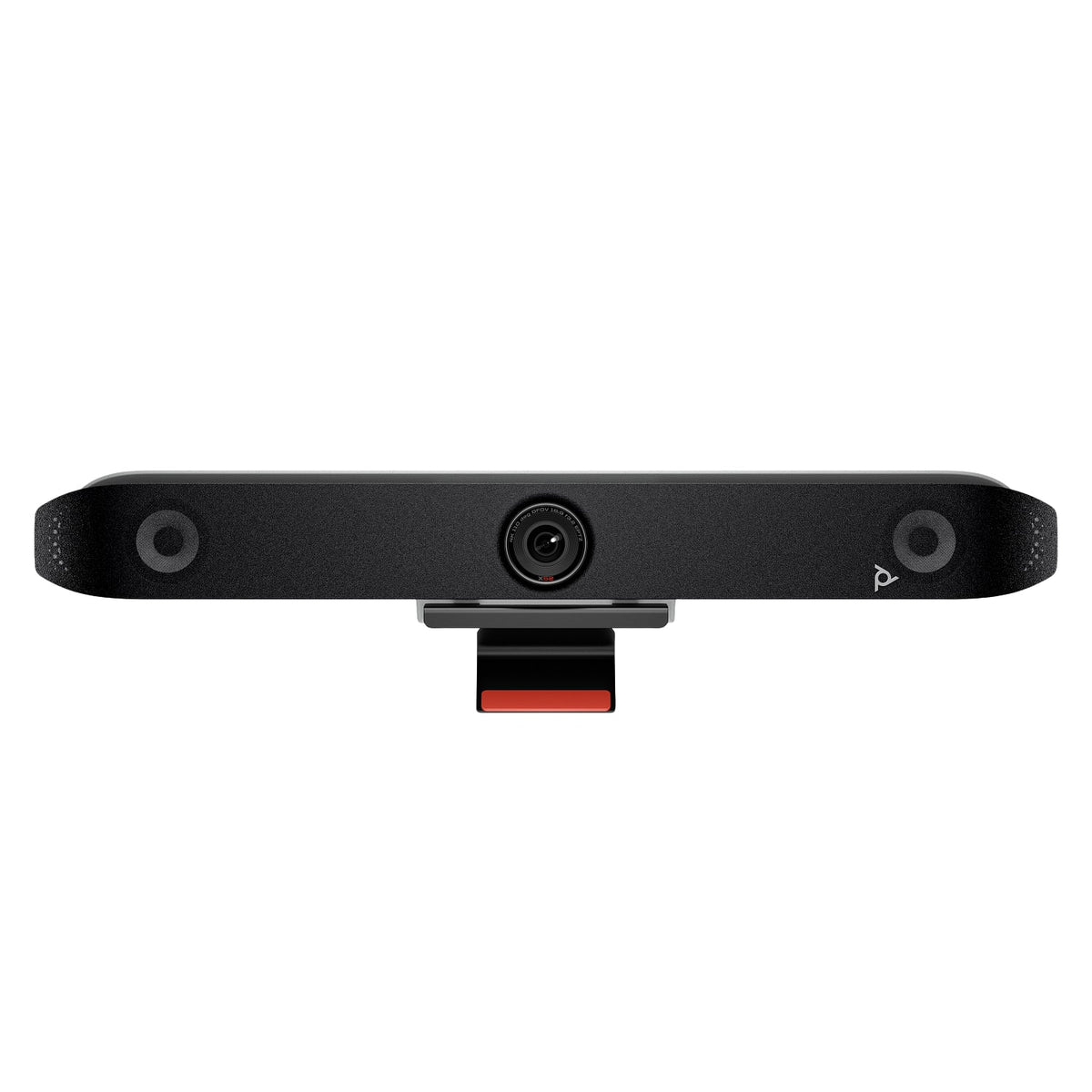

Poly Studio X52 All-In-One Video Bar (8D8K2AA)
Poly Studio X52 is an all-in-one video bar with a 20 MP camera and 5x digital zoom. It includes HDMI, USB, Ethernet, Bluetooth and Wi-Fi connectivity.
Key features
- Digital zoom — It provides 5x digital zoom.
- Framing modes — The smart camera technology includes people framing, group framing, DirectorAI perimeter and speaker framing.
- Microphone configuration — It has two MEMS microphones and two second-order microphones.
Specifications
| Part number | 8D8K2AA |
|---|---|
| Model | Studio X52 |
| Brand | Poly |
| Product type | All-in-one video bar — camera, stereo speakers, microphones and video application in one device, no room PC required |
| Recommended room size | 20 ft x 15 ft (6.1 m x 4.6 m) |
| Displays supported | Two (three in Zoom with a supported adapter) |
| Management | Poly Lens cloud device management |
| Colour | White |
| Operating conditions | 0 °C to 40 °C, 15–80% relative humidity, up to 4,877 m altitude |
| Capture resolution | 2160p 4K Ultra HD (3840 x 2160) |
| Sensor resolution | 20 MP |
| Frame rate | 5–60 fps; 4K at 30 fps from 2048 Kbps, 1080p at 60 fps from 1740 Kbps |
| Zoom | 5x digital zoom — no optical zoom is stated for this model |
| Field of view | 110° diagonal (DFOV), 95° horizontal (HFOV) |
| Camera range | Up to 6.1 m (20 ft) |
| Auto-framing | Poly DirectorAI — group framing, people framing, speaker framing, DirectorAI perimeter |
| Additional cameras | Secondary cameras can be added over USB and HDMI |
| Video standards | H.264 AVC, H.264 High Profile, H.265, H.239 |
| Privacy | Attachable privacy cover |
| Speakers | Stereo speakers, 20 W RMS power handling / 40 W maximum |
| Speaker sensitivity | 79 dB (1 W / 1 m) |
| Microphones | Two MEMS microphones plus two second-order microphones |
| Microphone pickup range | Up to 6.09 m (20 ft) |
| Total camera resolution (megapixels) | 20 MP |
| Video frame rate | 30 fps |
| Zoom capability | 5x digital |
| Ports | 1 HDMI-in 2.0 (video and audio); 2 HDMI-out 2.0 (video); 1 USB Type-C® 5Gbps signaling rate; 2 USB Type-A 5Gbps signaling rate; 1 RJ-45; 1 line in (optional microphone) |
| Wireless technologies | Bluetooth® 5.0; Wi-Fi 802.11a/b/g/n/ac/ax (MIMO) Multi-channel Concurrency * |
| Smart camera technology | People framing; Group framing; DirectorAI perimeter; Speaker framing |
| Microphone type | Two MEMS microphones; Two second-order microphones |
| Weight | 2.54 kg |
In the box
- Ethernet cable
- Monitor clamp
- AC power adapter
- HDMI cable
- Power cable
- Poly Studio X52
Frequently asked questions
What display connections does it have?
It has one HDMI-in 2.0 port for video and audio, plus two HDMI-out 2.0 ports for video.
Does it support Bluetooth and Wi-Fi?
Yes. It supports Bluetooth 5.0 and Wi-Fi 802.11a/b/g/n/ac/ax with MIMO Multi-channel Concurrency.
Are prices inclusive of GST?
No. All prices are shown exclusive of GST.
