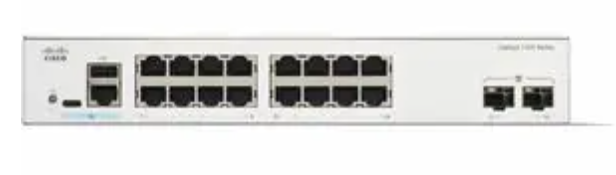

Cisco Catalyst 1200 C1200-16T-2G 16 Ports Manageable Ethernet Switch

Roll over image to zoom in Click on image to zoom

Cisco Catalyst 1200 C1200-16T-2G 16 Ports Manageable Ethernet Switch - Gigabit Ethernet - 1000Base-X, 10/100/1000Base-T - 3 Layer Supported - Modular - 2 SFP Slots - 18.37 W Power Consumption - Optical Fiber, Twisted Pair - 1U High - Rack-mountable

Name: Cisco Catalyst 1200 C1200-16T-2G 16 Ports Manageable Ethernet Switch
Brand: Cisco
SKU: C1200-16T-2G
Price: 350.0 SGD
Availability: InStock

Build a reliable, easy-to-use business network at an affordable price

From connectivity to cloud applications, networking plays a crucial role in every business journey. Reliability, security, and affordability continue to be top of mind, while ongoing management and operations add complexity that takes time and resources.

The Cisco Catalyst™ 1200 Series Switches are affordable smart switches designed and built for small and medium-sized businesses. Managed through the Cisco® Business mobile app or dashboard, the switch portfolio

provides a simple and reliable experience.

Cisco Catalyst 1200 Series switches

The Cisco Catalyst 1200 Series is the next generation of affordable smart switches, combining powerful performance and reliability with a complete suite of the features you need for a small or medium-sized business

network. The switches operate on customized Linux OS software and provide flexible management options, comprehensive security capabilities, and Layer 3 static routing features far beyond those of an unmanaged or

consumer-grade switch, at a lower cost than for fully managed switches. When you need a reliable solution to share online resources and connect computers, phones, and wireless access points, the Catalyst 1200 Series smart switches provide the ideal solution at an affordable pricing point.

Features

Cascade to other network devices through the uplink port to expand your local area network
Expand your network capacity with the help of 16 networking ports and transfer your data quickly and easily
Built-in power supply to ensure all components are being supplied with accurate voltage
Can work as layer 3 routing for scalable network design
Rack mounting enables you to organize wires & secure cables for professional installation
Managed switch provides a reliable foundation for your network
Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
Supports optical fibre cable to span longer distances and provided high data transmission rates between servers and network components

Specification

Management & Protocols

Manageable

Yes

Technical Information

Features

Fanless

I/O Expansions

Expansion Slot Type	SFP (mini-GBIC)
Number of Total Expansion Slots	2
Number of SFP Slots	2
Shared SFP Slot	Yes

Media & Performance

Network Technology	10/100/1000Base-T
Network Technology	1000Base-X
Ethernet Technology	Gigabit Ethernet
Media Type Supported	Optical Fiber
Media Type Supported	Twisted Pair

Interfaces/Ports

Network (RJ-45)	Yes
Modular	Yes
Uplink Port	Yes
Total Number of Network Ports	16
Port/Expansion Slot Details	16 x Gigabit Ethernet Network Port
Port/Expansion Slot Details	2 x Gigabit Ethernet Expansion Slot

Network & Communication

Layer Supported	3
Networking Standards	IEEE 802.3az
	IEEE 802.3u
	IEEE 802.3x
	IEEE 802.3z
	IEEE 802.1D
	IEEE 802.1ab
	IEEE 802.11ac
	IEEE 802.3at
	IEEE 802.3af
	IEEE 802.1p
	IEEE 802.3ab
	IEEE 802.3ad
	IEEE 802.1Q
	IEEE 802.1s
	IEEE 802.1w
	IEEE 802.3
	IEEE 802.1x

Physical Characteristics

Weight (Approximate)	1.78 kg
Form Factor	Rack-mountable
Height	43.9 mm
Width	268.2 mm
Depth	271.5 mm
Compatible Rack Unit	1U

Power Description

Input Voltage	120 V AC
Input Voltage	230 V AC
Power Source	Power Supply
Power Source	AC
Frequency	50 Hz
Frequency	60 Hz
Power Consumption	18.37 W
Number of Power Supplies Installed	1

General Information

Product Type	Ethernet Switch
Manufacturer Part Number	C120016T2G
Manufacturer Website Address	http://www.cisco.com
Manufacturer	Cisco Systems, Inc
Product Model	C1200-16T-2G
Product Name	Catalyst C1200-16T-2G Ethernet Switch
Product Line	Catalyst
Product Series	1200
Brand Name	Cisco

Miscellaneous

Application/Usage	Wireless Access Point
	Office
	IP Phone
	IP Camera
	Enterprise
	Business
Package Contents	Catalyst C1200-16T-2G Ethernet Switch Power Cord Mounting Kit Pointer Card
Environmentally Friendly	Yes
Environmental Certification	WEEE
