• Interactive features: touchback, annotation and blackboarding
• Increased collaboration with 2 sources on screen
• Iconic ClickShare Button(s) for employees and guests
• 100% secure, encrypted and cloud-managed

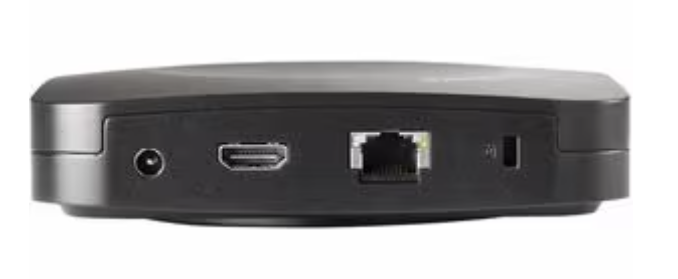

ClickShare C-10 brings interactive wireless presentation to any meeting space. Content sharing is simple, with just one click on the ClickShare Button (Windows or Mac) or the ClickShare App (laptop, mobile or tablet). Start presenting within seconds: no cables, no software to download, no training needed.

Specification

General specifications

Operating system

Windows 10 and higher macOS 11 (BigSur) and higher
Android v9 and higher (ClickShare App)*
iOS 12 and higher (ClickShare App)*

Video outputs

4K UHD (3840*2160) @ 30Hz. HDMI 1.4b or USB-C DisplayPort 1.2 (only Gen2)

Audio output

HDMI

USB

1 X USB-A, 1 X USB-C

ClickShare Buttons

1

ClickShare App

Desktop & Mobile

Native protocols

Airplay, Google Cast, Miracast*

Maximum number of simultaneous connections (with Buttons and/or App)

32

Noise Level

Max. 25dBA @ 0-30°C
Max. 30dBA @ 30-40°C

Authentication protocol

WPA2-PSK in stand alone mode
WPA2-PSK or IEEE 802.1X using the ClickShare Button in network integration mode

Wireless transmission protocol

IEEE 802.11 a/g/n/ac and IEEE 802.15.1

Reach

Adjustable with signal strength modulation; max. 30m (100 ft) between ClickShare Button and ClickShare Base Unit
Frequency band 2.4 GHZ and 5 GHz

Frequency band

2.4 GHZ and 5 GHz (DFS channels supported in select number of countries)

Connections

1x Ethernet LAN 1Gbit
1x USB-C 2.0 (front); 1x USB-A 2.0 (front) - only Gen2: 1x USB-C 3.0 (front); 1x USB-A 3.0 (front)

Temperature range

Operating: 0°C to +40°C (+32°F to +104°F)
Max: 35°C (95°F) at 3000m
Storage: -20°C to +60°C (-4°F to +140°F)

Humidity

Storage: 0 to 90% relative humidity, non-condensing
Operation: 0 to 85% relative humidity, non-condensing

Anti-theft system

Kensington lock

Certifications

FCC/CE

Touch screen support & Interactivity

Yes

Room Dock (peripheral support)

No

Local view

Yes

Network connection

LAN & WiFi

Management and reporting

Yes

Warranty

1 year standard
