Description
Apc Easy UPS On-Line, 3kVA/2700W, Rackmount 4U, 230V, 6x IEC C13+1x IEC C19 outlets, Intelligent Card Slot, LCD, Extended Runtime, W/ Rail Kit (SRV3KRILRK-E)

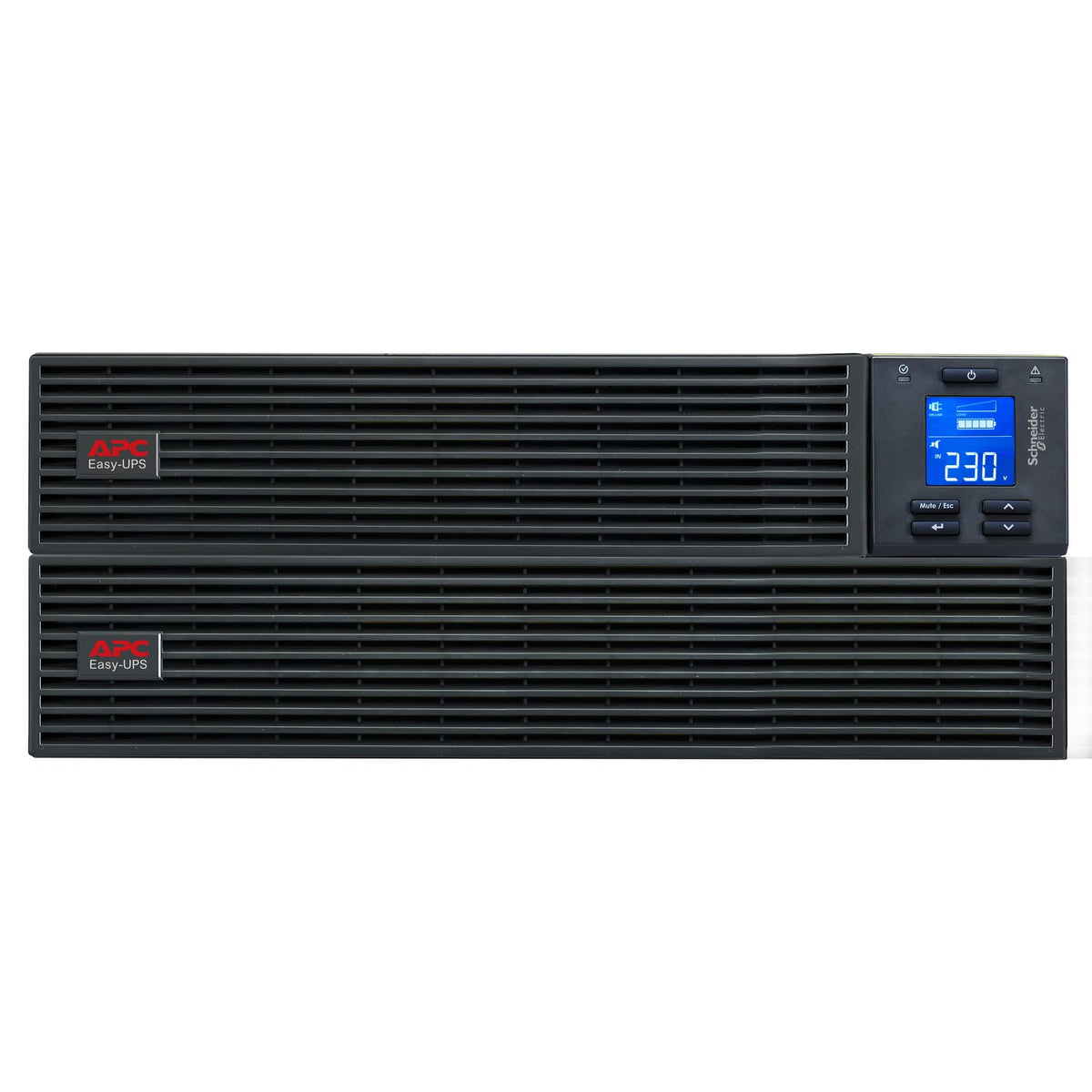

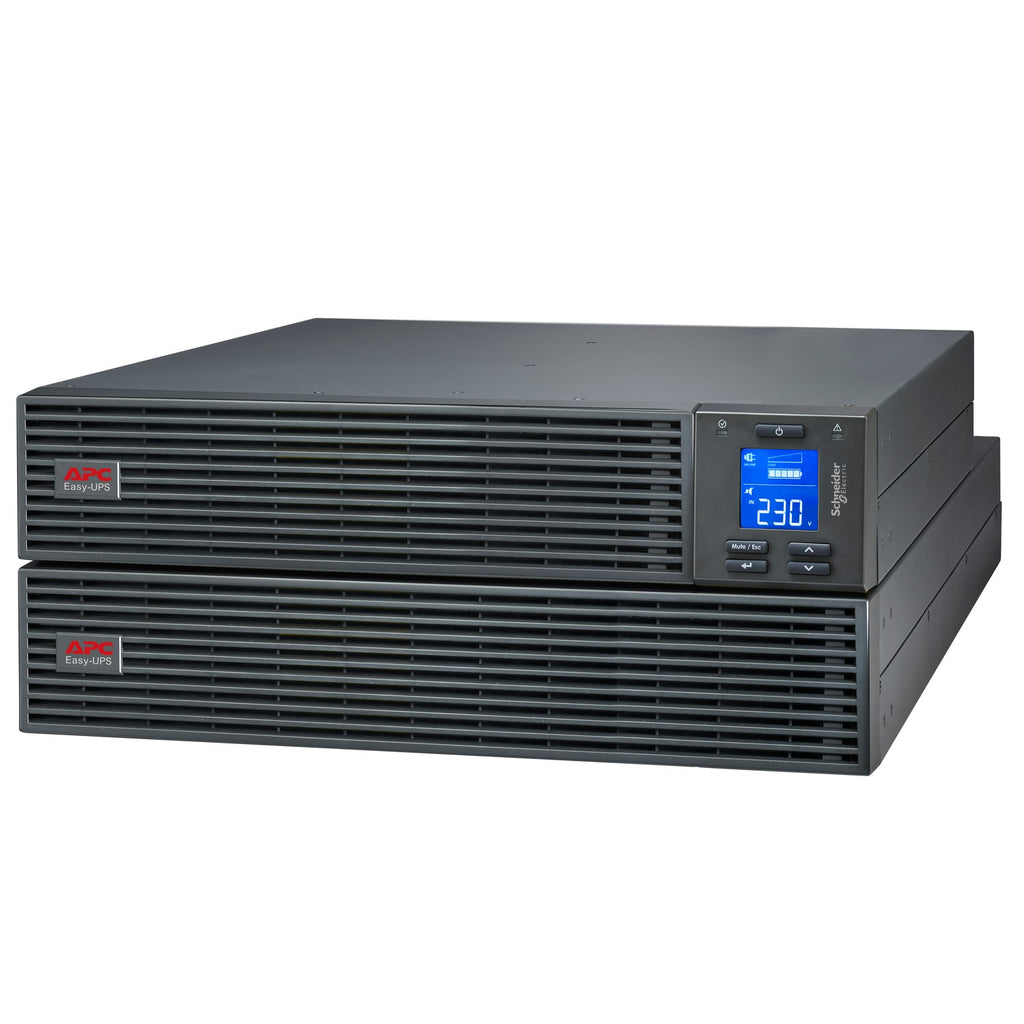

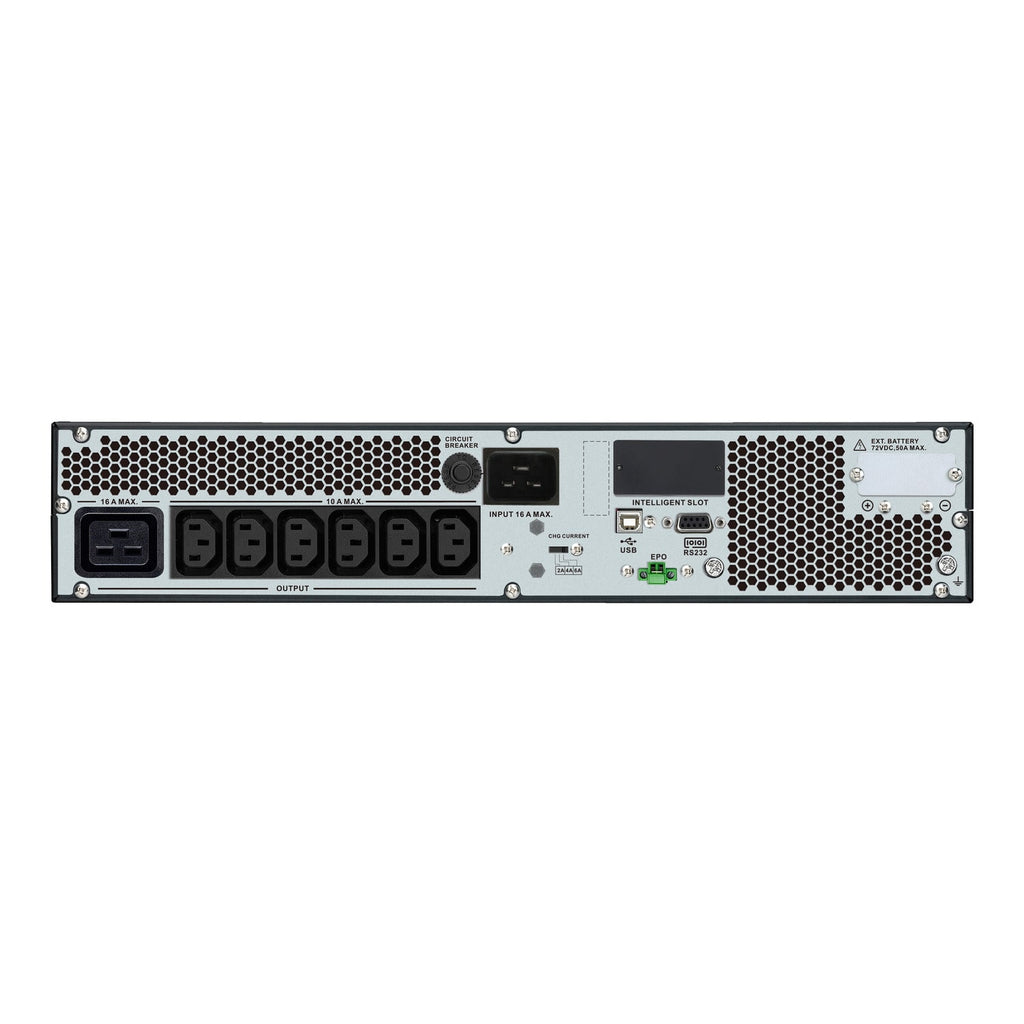

APC Easy UPS On-Line SRV3KRILRK-E is a 3kVA/2700W, 4U rackmount UPS. It has six IEC C13 outlets, one IEC C19 outlet, an intelligent card slot and an LCD.
Key features
- 3kVA online UPS — This is a 3kVA/2700W double-conversion online UPS with a pure sine wave output.
- ECO mode efficiency — It has an energy-saving ECO mode with high operating efficiency.
- External battery support — Up to four SRV72RLBP-9A external battery packs can be added for extended runtime.
- LCD status information — The LCD interface provides detailed and accurate UPS status information.
Specifications
| Part number | SRV3KRILRK-E |
|---|---|
| Brand | Apc |
| Main input voltage | 230 V AC 1 phase |
| Output voltage | 230 V AC 1 phase |
| Rated power in W | 2700 W |
| Rated power in VA | 3000 VA |
| Output connection | 6 IEC 60320 C13; 1 IEC 60320 C19 |
| UPS topology | On-Line |
| Battery type | Lead-acid external included |
| Number of rack unit | 4U |
| Height | 172 mm |
| Width | 437 mm |
| Depth | 632 mm |
| Product weight | 52.2 kg |
| Input connection | IEC 60320 C20 |
| Efficiency at full load | 105…300 V 40% load; 180...285 V full load |
| Input frequency | 40...70 Hz auto sensing |
| Bypass type | Internal bypass (automatic and manual) |
| Crest factor | 3 : 1 |
| Harmonic distortion | 3 % |
| Maximum configurable power in VA | 3000 VA |
| Maximum configurable power in W | 2700 W |
Frequently asked questions
What outlets does it have?
It has six IEC C13 outlets and one IEC C19 outlet.
Can external battery packs be added?
Yes. Up to four SRV72RLBP-9A external battery packs can be added for extended runtime.
What does the LCD show?
The LCD interface provides detailed and accurate information on UPS status.
Are prices inclusive of GST?
No. All prices are shown exclusive of GST.
