StarTech Dual 4K Monitor Mini Thunderbolt 3 Dock with HDMI TB3DKM2HD (3 years Local Warranty in Singapore) -EOL
Laptop Docking Station | Mac & Windows® | Bus-Powered | 2x USB-A
- Add dual UHD 4K HDMI monitors at 60Hz to your laptop with this portable Thunderbolt 3 docking station
- Easy to set up and ready to go with no driver installation required
- Connect your devices with 2x USB-A ports - 1x USB 3.0 and 1x USB 2.0
- Add dual UHD 4K HDMI monitors at 60Hz to your laptop with this portable Thunderbolt 3 docking station
- Easy to set up and ready to go with no driver installation required
- Connect your devices with 2x USB-A ports - 1x USB 3.0 and 1x USB 2.0
This Thunderbolt™ 3 docking station packs big performance into a cost-effective, compact mini dock, delivering essential connections for productivity. The bus-powered Thunderbolt 3 dock lets you connect to dual 4K HDMI displays, Gigabit Ethernet and two USB (Type-A) ports and for a flexible setup, the attached USB-C cable has an extended length of (7.9 in./ 20 cm).

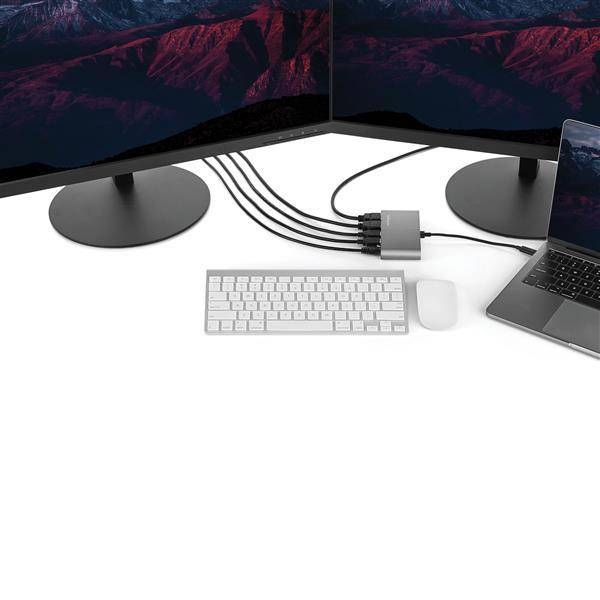

Create a Dual-4K 60Hz Workstation
Great for editing 4K video or other Ultra HD tasks, this portable Thunderbolt 3 to HDMI dock supports 40Gbps of throughput and 4K resolution at 60Hz on dual HDMI monitors, through a single Thunderbolt 3 port. Run resource-demanding applications on two independent displays without draining system resources.
Connect your laptop to:
- 2x 4K HDMI displays (up to 4096 x 2160p @ 60Hz)
Easy Installation & Deployment
Simply connect the TB3 dock to your laptop with included TB3 cable and start working immediately. No time-consuming driver installations are required.

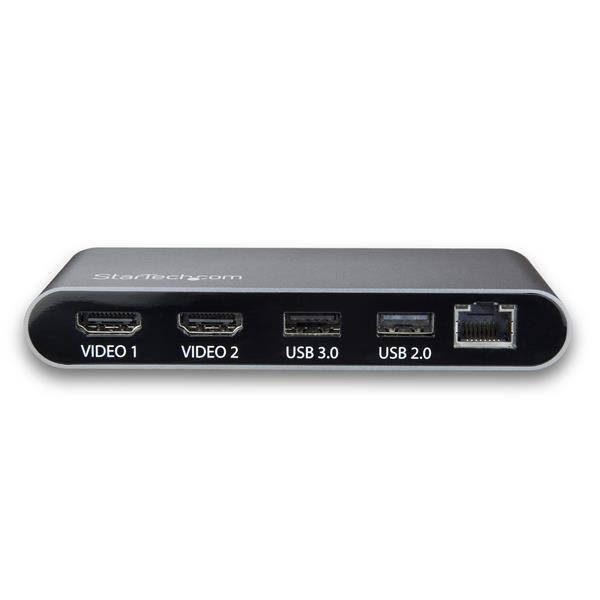

The Ports You Need Most
To enhance your productivity, the Gigabit Ethernet port (with PXE Boot and Wake-on-LAN support) ensures reliable wired network access. A USB 3.0 Type-A port, with ample space around it, lets you connect a USB device, such as a flash drive, for easy file access. Connect another USB device using the USB 2.0 Type-A port.
The TB3DKM2HD is Thunderbolt Certified, and backed by a StarTech.com 3-year warranty and free lifetime technical support.
✔️ Thunderbolt Certified and backed by a StarTech.com
✔️ 3-year warranty and free lifetime technical support.
Specifications
| Warranty Information | Warranty | 3 Years |
|---|---|---|
| Connector(s) | Connector Type(s) | 1 - Thunderbolt™ 3 USB-C (24-pin) (40Gbps) |
| 2 - HDMI (19 pin) | ||
| 1 - USB Type-A (9 pin) USB 3.0 (5 Gbps) | ||
| 1 - USB Type-A (4 pin) USB 2.0 | ||
| 1 - RJ-45 | ||
| Environmental | Operating Temperature | 5°C to 35°C (41°F to 95°F) |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) | |
| Humidity | 5~95% RH (Non-condensing) | |
| Hardware | 4K Support | Yes |
| Fast-Charge Port(s) | No | |
| Displays Supported | 2 | |
| Bus Type | Thunderbolt 3 | |
| Industry Standards | Thunderbolt 3 IEEE 802.3, IEEE 802.3u, IEEE 802.3ab USB 3.0 - Backward compatible with USB 2.0 and 1.1 USB 2.0 - Backward compatible with 1.1 |
|
| Chipset ID | Intel - Alpine Ridge JHL6540 Intel - WGI210AT Texas Instruments - TPS65983 ASMedia - ASM1042A Parade - PS176 |
|
| Packaging Information | Shipping (Package) Weight | 0.6 lb [0.3 kg] |
| Package Length | 8.2 in [20.8 cm] | |
| Package Width | 5.7 in [14.5 cm] | |
| Package Height | 1.4 in [36 mm] | |
| Performance | Maximum Data Transfer Rate | 40 Gbps (Thunderbolt 3) 5 Gbps (USB 3.0) 2 Gbps (Ethernet; Full-Duplex) |
| Maximum Digital Resolutions | Dual 4K displays - HDMI 4096 x 2160p @ 60Hz / 3840 x 2160p @ 60Hz | |
| Type and Rate | Thunderbolt 3 - 40 Gbit/s | |
| UASP Support | Yes | |
| Compatible Networks | 10/100/1000 Mbps | |
| Auto MDIX | Yes | |
| PXE | Yes | |
| Full Duplex Support | Yes | |
| Physical Characteristics | Color | Black & Gray |
| Material | Aluminum | |
| Cable Length | 7.9 in [200 mm] | |
| Product Length | 4.9 in [12.4 cm] | |
| Product Width | 2.4 in [61 mm] | |
| Product Height | 0.7 in [1.9 cm] | |
| Weight of Product | 5.1 oz [145.8 g] | |
| Power | Power Source | USB-Powered |
| Software | OS Compatibility | Windows® 7, 8, 8.1, 10 macOS 10.12 - 10.15 |
| Special Notes / Requirements | System and Cable Requirements | Thunderbolt 3 equipped computer with a Thunderbolt 3 port. |
| Note | A 4K-capable display is required to achieve 4K x 2K resolution (4K is also known as 4K x 2K). | |

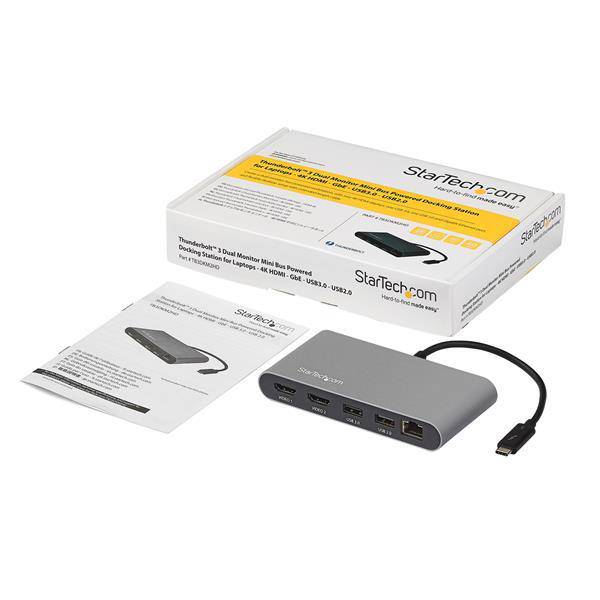

| What's in the Box | Included in Package | 1 - Docking Station |
| 1 - User Manual |
