QNAP 8-Bay NAS, Intel core i5-8400T 6-core 1.7 GHz Processor(max 3.3GHz), 16GB Thunderbolt 3 (TVS-872XT-i5-16G) (2 years Local Warranty in Singapore)

Save 12%
American Express Apple Pay Google Pay GrabPay Mastercard PayNow PayPal Visa

Price:
Sale price$ 3,689.00 SGD Regular price$ 4,200.00 SGD

Description

QNAP 8-Bay NAS, Intel core i5-8400T 6-core 1.7 GHz Processor(max 3.3GHz), 16GB Thunderbolt 3 (TVS-872XT-i5-16G) (2 years Local Warranty in Singapore)

Breakthrough performance and outstanding connectivity with 10GbE, Thunderbolt™ 3, and M.2 PCIe NVMe SSD slots
(Supports QTS or QuTS hero operating system)

Features

Powered by an 8th generation Intel® Core™ processor, the high-performance TVS-872XT NAS features both 10GBASE-T and Thunderbolt™ 3 high-bandwidth connectivity for tackling heavy workloads and smoothly transferring, displaying and editing 4K videos in real-time. With M.2 SSD support and the ability to install a graphics card, the TVS-872XT provides the ability to boost performance and create a scalable working environment for collaboration and high-speed file sharing. The TVS-872XT is driven by high-quality hardware that delivers optimum performance, comprehensive multimedia features, expandable storage capacity, and numerous other NAS functionalities to inspire greater creativity and accomplishments!

  • High-speed Thunderbolt™ 3 with SMB protocol, perfect for collaboration on media editing.

  • 5-speed 10GBASE-T RJ45 connectivity accelerates virtualization applications and file sharing across teams and devices.

  • PCIe expandability allows for graphics cards or 40GbE/ 25GbE/ 10GbE adapters to increase application performance.

  • Install M.2 PCIe (Gen 3 x2, 2 GB/s) NVMe SSDs (sold separately) to set up caching or storage pools, improving file access efficiency.

  • 4K media playback and real-time transcoding; directly view creative works on an HDTV via HDMI 2.0 (4K @60Hz) output.

  • Snapshots fully record system status and data, allowing you to protect files and data from accidental deletion and malware attacks.

Hardware Specs

CPU Intel® Core™ i5 Processor
CPU Architecture 64-bit x86
Graphic Processors Intel® UHD Graphics 630
Floating Point Unit Yes
Encryption Engine  (AES-NI)
Hardware-accelerated Transcoding Yes
System Memory 16 GB SODIMM DDR4 (2 x 8 GB)
Maximum Memory 64 GB ( 2 x 32 GB)
Memory Slot 2 x SODIMM DDR4
Flash Memory 5GB (Dual boot OS protection)
Drive Bay 8 x 3.5-inch SATA 6Gb/s, 3Gb/s
Drive Compatibility 3.5-inch bays:
3.5-inch SATA hard disk drives
2.5-inch SATA hard disk drives
2.5-inch SATA solid state drives

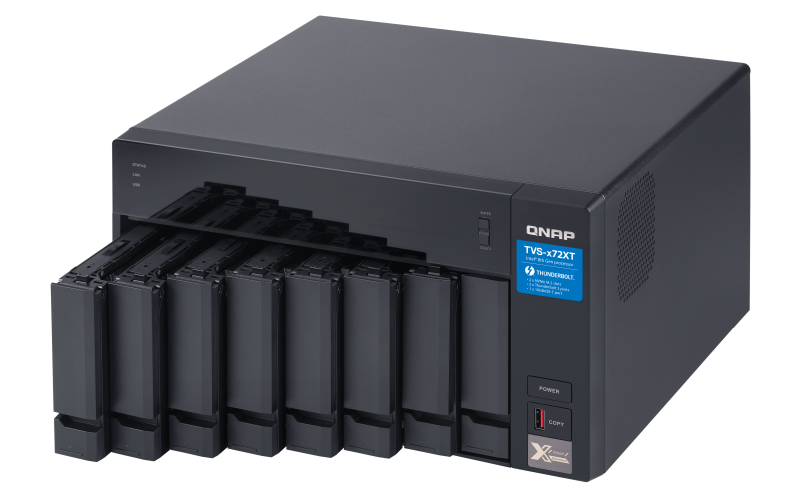

Hot-swappable Yes
M.2 Slot 2 x M.2 2280 PCIe Gen3 x2 slots
SSD Cache Acceleration Support Yes
GPU pass-through
Gigabit Ethernet Port (RJ45) 2
10 Gigabit Ethernet Port 1 x 10GBASE-T (10G/5G/2.5G/1G/100M)
Wake on LAN (WOL) Yes
Jumbo Frame
Thunderbolt Port 2 (Thunderbolt™ 3)
PCIe Slot 2
Slot 1: PCIe Gen 3 x16 (CPU)
Slot 2: PCIe Gen 3 x4 (PCH)
Slot 1 is preinstalled with a Thunderbolt 3 adapter
Card dimensions for PCIe slot 1~Slot 2:210 x 131.15 x 18.76 mm / 8.26 x 5.16 x 0.74 inches.
Wider cards can be installed if the next PCIe slot will not be used.
USB 3.2 Gen 1 port 1
USB 3.2 Gen 2 (10Gbps) Port 2 x Type-C USB 3.2 Gen 2 10Gbps
2 x Type-A USB 3.2 Gen 2 10Gbps
IR Sensor  (QNAP RM-IR004 & MCE)
HDMI Output 1, HDMI 2.0 (up to 3840 x 2160 @ 60Hz)
Audio Input - (No longer available on units manufactured on or after 2021/1/1)
Audio Output - (The line out jack and speaker are no longer available on units manufactured on or after 2021/1/1)
Form Factor Tower
LED Indicators HDD 1-8, Status, LAN, USB port, M.2 port
LCD Display/ Button Yes
Buttons Power, Reset, USB Copy
Dimensions (HxWxD) 188.2 × 329.3 × 279.6 mm
Weight (Net) 7.06 kg
Weight (Gross) 9.19 kg
Operating Temperature 0 - 40 °C (32°F - 104°F)
Storage Temperature -20 - 70°C (-4°F - 158°F)
Relative Humidity 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
Power Supply Unit 250W, 100-240V
Power Consumption: HDD Sleep Mode 41.47 W
Power Consumption: Operating Mode, Typical 65.03 W
Tested fully populated with WD10EFRX hard drives.
Fan System fan: 2 x 120mm, 12VDC
CPU fan: 2 x 60mm blower fan
System Warning Buzzer
Kensington Security Slot Yes
Max. Number of Concurrent Connections (CIFS) - with Max. Memory 3500

Note: Use only QNAP memory modules to maintain system performance and stability. For NAS devices with more than one memory slot, use QNAP modules with identical specifications.
Warning: Using unsupported modules may degrade performance, cause errors, or prevent the operating system from starting.
The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
Product images are for illustrative purposes only and may differ from the actual product. Due to differences in monitors, colors of products may also appear different to those shown on the site.
Designs and specifications are subject to change without notice.

Software Spec

  1. Operating System

    QTS 5.0.1

    Supported Client Operating Systems
    1. Apple Mac OS 10.10 or later
    2. Ubuntu 14.04, CentOS 7, RHEL 6.6, SUSE 12 or later Linux
    3. IBM AIX 7, Solaris 10 or later UNIX
    4. Microsoft Windows 7, 8, 10 and 11
    5. Microsoft Windows Server 2008 R2, 2012, 2012 R2, 2016, and 2019
    Supported Browsers
    1. Apple Safari (latest version)
    2. Google Chrome (latest version)
    3. Microsoft Edge (latest version)
    4. Mozilla Firefox (latest version)
    Supported Languages

    Chinese (Traditional & Simplified), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Brazil), Romanian, Russian, Spanish, Swedish, Thai, and Turkish

    Storage Pool

     Yes

    SED Storage Pool

     Yes

    Maximum Pool size

    308 TB

    Maximum number of storage pool

    128

    Volume Type

    Thick, Thin, Static

    Maximum volume size

    250 TB

    Note: At least 4 GB RAM is required.

    Maximum number of volume

    128

    Maximum shared folder size

    250 TB

    Maximum number of shared folder

    512

    JBOD Expansion

     Yes

    VJBOD / VJBOD Cloud

    Yes

    iSCSI Service

    Yes

    Fibre Channel Service

    Yes

    LUN Type

    Thick, Thin

    File-based iSCSI LUN

    Yes

    Block-based iSCSI LUN

    Yes

    Maximum LUN size

    250 TB

    Note: At least 4 GB RAM is required.

    Maximum number of targets LUN

    256

    LUN feature
    1. LUN Mapping (LUN can be moved between iSCSI and FC)
    2. LUN Masking
    3. WWPN Aliases Import/Export
    4. FC Port Group
    5. FC Port Binding
    6. Multipath IO (MPIO)
    7. Online LUN capacity expansion
    8. LUN snapshot
    9. LUN snapshot replication and clone
    Auto Tiering

     Requires minimum 2GB memory.

    RAID Type
    1. 8-bay (and more): JBOD, Single, RAID 0, 1, 5, 6, 10, 50, 60
    2. 6-bay: JBOD, Single, RAID 0, 1, 5, 6, 10, 50
    3. 4-bay: JBOD, Single, RAID 0, 1, 5, 6, 10
    4. 2-bay: JBOD, Single, RAID 0, 1
    RAID Group

     To ensure data security, system stability, and storage performance, the maximum number of drives for a single RAID group is now 16 (applicable to RAID 5, RAID 6, RAID TP, and subgroups of RAID 50 and RAID 60). Nevertheless, users can combine multiple RAID groups into a large storage pool that contains more than 16 drives, using RAID 50, RAID 60, or RAID 10 as the RAID configuration. This enhancement will only be applied to new RAID groups. All existing RAID groups and storage systems will not be affected.

    RAID Level Migration

     Yes

    RAID Expansion (by adding Disk)

    Yes

    RAID Expansion (by replacing bigger Disks)

    Yes

    Storage Pool Expansion (by adding RAID Group)

    Yes

    RAID Hot Spare

    Global, Local

    RAID Sync/Rebuild/Scrubbing

    Yes

    Internal drive

    EXT4

    External drive

    EXT3, EXT4, NTFS, FAT32, HFS+, and exFAT (optional for ARM model)

    Note: To use exFat in certain models you must purchase an exFAT driver license from License Center.

    Disk, Enclosure Locate

     Yes

    Disk S.M.A.R.T. Scan

    Yes

    Disk S.M.A.R.T. Data Migration

    Yes

    Ironwolf Health Management

    Yes

    Secure Erase

     Yes

    SSD Trim

    Yes

    SSD Life Estimation

    Yes

    Disk Roaming

    Yes

    Disk Standby

    Yes

    Volume Snapshot

    Yes

    LUN Snapshot

     Yes

    Maximum Snapshot (Per System)

    Check maximum number of snapshots of your NAS

    Maximum Snapshot (Per Volume / LUN)

    Check maximum number of snapshots of your NAS

    Minimum Snapshot Interval

    5 minutes

    Snapshot Retention Policy

     Yes

    Self-serve Snapshot Recovery

    Yes

    Application Consisted Snapshot

    Yes

    Snapshot Full Clone

    Yes

    Snapshot Replica / Vault

     Yes

    SSD read-only Cache

    Yes

    SSD read-write cache

    Yes

    SSD write-only cache

    Yes

    SSD Cache Maximum Size

    Check your QNAP NAS cache capacity and RAM requirements

    SSD Cache RAID

    0, 1, 5, 6, 10

    SSD profiling tool

     Yes

    External Device Management

    Yes

    Mount Smart Phone (MTP)

    Yes

    External RAID Device (QNAP so on) Management (External Device Mode)

    Yes

    External RAID Device (QNAP so on) Management (NAS Mode)

    Yes

    File Server
    1. File sharing across Windows, Mac, and Linux/UNIX
    2. Microsoft networking (CIFS/SMB)
    3. Apple networking (AFP)
    4. NFS version 3/4 services
    FTP Server
    1. QuFTP
    2. FTP, SFTP and TFTP protocols
    3. FTP over SSL/TLS (explicit FTPS)
    4. FXP support
    Maximum FTP connection

    1024

    File Station (Web)

     Yes

    Object Storage

    Yes

    Local user account

    4,096

    Local group account

    512

    Domain user/group account

    200,000

    Domain Security

     Yes

    Domain Controller

    Yes

    Shared folder permission

    Yes

    Advanced folder permission

    (AFP, CIFS/SMB, FTP, and File Station)

    Windows ACL

     (CIFS/SMB)

    User quota

     Yes

    Group quota

    Yes

    Folder quota

     (Snapshot shared folder)

    Home folder

     Yes

    Resource Monitor

    Yes

    SNMP

    V2, V3

    Network recycle bin
    1. Recover files deleted using AFP, CIFS/SMB, and File Station
    2. Automatic cleanup and file type filter
    System Log & Notification Center

    Log recording: 3,000 event per second

    Smart Fan

    Yes

    Schedule on/off

     Yes

    Internet protocol

    IPv4, IPv6

    Virtual Switch



    Port trunking

    (7 modes)

    VLAN

     Yes

    DHCP Server

    Yes

    DDNS (Dynamic Domain Name Service)

    Yes

    Network access protection with auto-blocking

    SSH, Telnet, HTTP(S), FTP, CIFS/SMB, and AFP

    Security Counselor

     Yes

    Malware Remover

    Yes

    AES 256-bit Volume Encryption validated by FIPS 140-2 CAVP

    Yes

    2-step verification

    Yes

    Allow/Deny List

    Yes

    Access Protection

    Yes

    Service binding

    Yes

    Firewall

    Yes

    vSphere Web Client Plug-in

    Yes

    VMware vSphere VAAI for iSCSI

     Yes

    VMware vSphere VAAI for NAS

    Yes

    Windows ODX

    Yes

    Windows/VMware Snapshot Agent

    Yes

    HTTP/HTTPS Connections

    TLS 1.0/1.1/1.2/1.3

    Supports WebDAV Connection

    Yes

    Supports Virtual Hosts

    32

    Qsync

     Note: At least 1 GB RAM is required.

    [Qsync] Management Mode

    User customization, Central

    [Qsync] Qsync client supported platforms

    Windows, macOS, Ubuntu, Android, and iOS

    [Qsync] Maximum number of version control

    64

    HybridMount

     Note: At least 1 GB RAM is required.

    [HybridMount] File Cloud Gateway

    Concurrent Connections = 20 Upload & 20 Download

    [HybridMount] Network Drive Mount

     Yes

    [HybridMount] Free cloud gateway sessions

    2

    HBS (Hybrid Backup Sync)

     Note: At least 1 GB RAM is required.

    [HBS (Hybrid Backup Sync)] NAS to NAS backup

    Yes

    [HBS (Hybrid Backup Sync)] Cloud Backup

    Yes

    [HBS (Hybrid Backup Sync)] Cloud Sync

    Yes

    [HBS (Hybrid Backup Sync)] 2-way and Active Sync

     Yes

    [HBS (Hybrid Backup Sync)] Backup Deduplication

    Yes

    [HBS (Hybrid Backup Sync)] Apple Time Machine Backup

    Yes

    [HBS (Hybrid Backup Sync)] External drive backup

    Yes

    [HBS (Hybrid Backup Sync)] Maximum number of backup job

    400

    Hyper Data Protector

     Yes

    Boxafe

     Note: At least 4 GB RAM is required.

    [Boxafe] Office 365 Backup

    Yes

    [Boxafe] Google Workspace Backup

    Yes

    [Boxafe] Full-text search

    Yes

    Qsirch

     Note: This feature is supported by all QNAP NAS devices with at least 2 GB of memory

    [Qsirch] Previews

    Photos, music, videos, PDFs, Gmail, and others

    [Qsirch] Integrate Mac Finder

     Yes

    [Qsirch] Advanced picture search

    Yes

    [Qsirch] Search filters

    Yes

    QuMagie

     Note: At least 1 GB RAM is required.

    [QuMagie] Browse photos

    Yes

    [QuMagie] Virtual and smart albums

    Yes

    [QuMagie] AI-assisted photo management

    People, things, places, and others

    Antivirus (free)

     Yes

    McAfee (License)

    Yes

    QVPN Service

     Note: At least 1 GB RAM is required.

    [QVPN Service] Remote Access

    PPTP, L2TP/IPSec, OpenVPN, WireGuard, QBelt (QNAP proprietary)

    [QVPN Service] Supportedd utility and mobile app

    Windows, macOS, iOS, and Android

    [QVPN Service] Supported maximum clients

    100

    HD Station

     Yes

    LDAP Server

    Yes

    RADIUS

    Yes

    SQL server

    Yes

    License Center

     Yes

    Multimedia Console

    Yes

    Photo Station

    Yes

    Music Station

     Yes

    Video Station

     Yes

    Download Station

    Yes

    Notes Station

    Yes

    Qfiling

    Yes

    Media Streaming add-on

    Yes

    QmailAgent

    Yes

    QuWAN

     Yes

    DA Driver Analyzer

    Yes

    Q'center

     Note: The application is available in the App Center and in virtual appliance marketplaces (VMware vSphere ESXi and Microsoft Hyper-V).

    Q'center Server

    Yes

    Q'center Agent

    Yes

    Connect to Q'center

    Yes

    Virtualization Station

     Note: At least 4 GB RAM is required.

    [Virtualization Station] Supports Virtual machine instances

    Windows, Linux, Unix, and Android

    [Virtualization Station] VM importing, exporting, cloning, snapshot capturing, backup, and restoration

    All function is Fine.

    [Virtualization Station] Virtual switches

    Can create a virtual switch

    [Virtualization Station] GPU pass-through

    Not support GPU

    Container Station

     Note: At least 1 GB RAM is required.

    [Container Station] Supported type

    LXC/LXD and Docker

    Note: LXD has been supported after Container Station 2.4

    [Container Station] Docker Hub Registry

     Yes

    [Container Station] Container importing and exporting

    Yes

    [Container Station] Console mode

    Yes

    Linux Station

     Notification: At least 4 GB RAM is required.

    [Linux Station] Supports Ubuntu versions

    18.04, and 20.04

    Linux Station Center

     Yes

    QVR Pro

     Note: At least 4 GB RAM is required. The maximum number of channels supported varies by NAS model, network configuration, and camera settings. For more information, visit https://www.qnap.com/go/qvr-nas-selector.

    [QVR Pro] Recording Technique

    Index database based

    [QVR Pro] License Type

    Perpetual

    [QVR Pro] User-defined trigger events

     Yes

    [QVR Pro] Metadata

    Yes

    [QVR Pro] QVR Pro Client (Desktop)

    Windows, macOS, and QNAP HybridDesk Station

    [QVR Pro] QVR Pro Client (Mobile)

    Android and iOS

    [QVR Pro] Recording camera streams

    H.264

    [QVR Pro] Free built-in camera channels

    8

    QVR Elite

     Note: At least 1 GB RAM is required. The maximum number of channels supported varies by NAS model, network configuration, and camera settings. For more information, visit https://www.qnap.com/go/qvr-nas-selector.

    [QVR Elite] Recording Technique

    Standard MP4 file based

    [QVR Elite] License Type

    Subscription-based

    [QVR Elite] User-defined trigger events

     Yes

    [QVR Elite] QVR Pro Client (Desktop)

    Windows, macOS, and QNAP HybridDesk Station

    [QVR Elite] QVR Pro Client (Mobile)

    Android and iOS

    [QVR Elite] Recording camera streams

    H.264

    [QVR Elite] Free built-in camera channels

    2

    QVR Pro Client

     Yes

    [QVR Pro Client] Dynamic View Layout

    Yes

    [QVR Pro Client] Windows

    Yes

    [QVR Pro Client] Mac

    Yes

    [QVR Pro Client] HybridDesktop

    Yes

    [QVR Pro Client] iOS

    Yes

    [QVR Pro Client] Android

    Yes

    QVR Center

     Note: At least 4 GB RAM is required.

    [QVR Center] Log management

     Yes

    [QVR Center] Central monitoring across multiple servers

    Yes

    QVR Guard

     Note: At least 4 GB RAM is required.

    [QVR Guard] Failover design

    Yes

    [QVR Guard] Viewing task details

    Yes

    [QVR Guard] Automatic switch between Standby and Takeover modes

    Yes

    QVR Human

    Yes

    QVR Face

     The maximum number of channels supported varies by NAS model, network configuration, and camera settings. For more information, visit https://www.qnap.com/solution/qvr-face/en-us/

    QVR DoorAccess

     Yes

Note:
QTS does not support DRM content and some IPv6 services.
Some data encryption features may be unavailable because of country-specific legislative restrictions.
Some features may vary by model.
Designs and specifications are subject to change without notice.

Package Contents

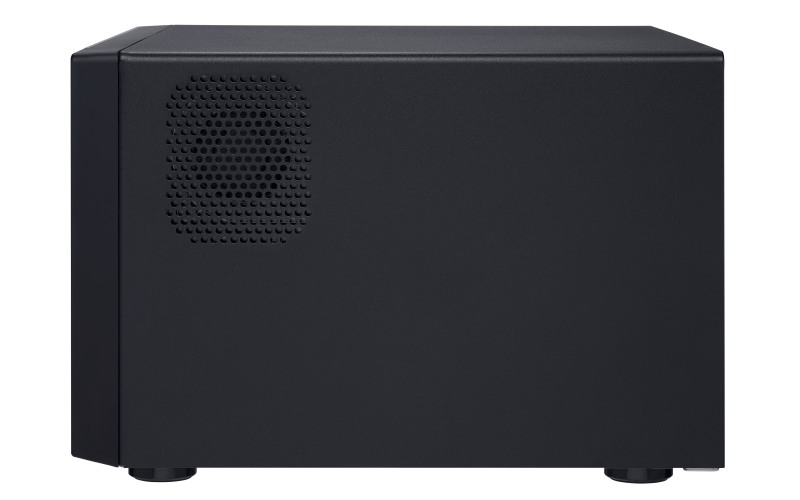

TVS-872XT

Gigabit Ethernet Cable x 2

10Gbase-T Ethernet cable x 1

Flat head screw (for 2.5" HDD )

Flat head screw (for 3.5" HDD)

M.2 SSD Heatsink x 2

Power cord x 1

Quick Installation Guide (QIG)

Video Review


Optional

RAIL-A03-57
RAM-32GDR4ECS0-UD-2666

Other Featured QNAP NAS Models:

You may also like

Recently viewed
