Description

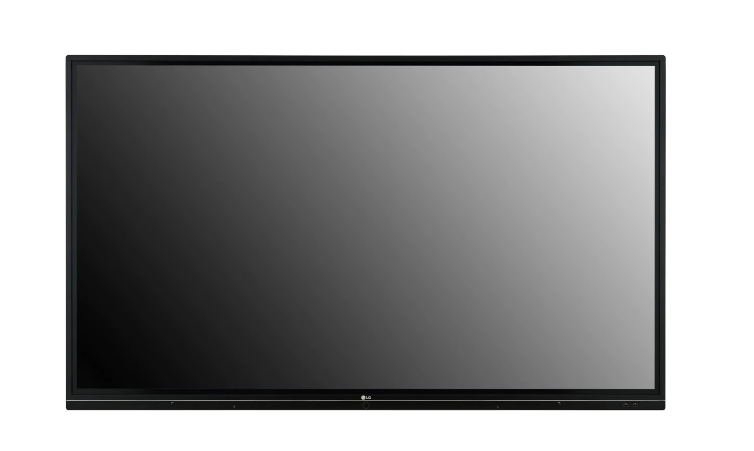

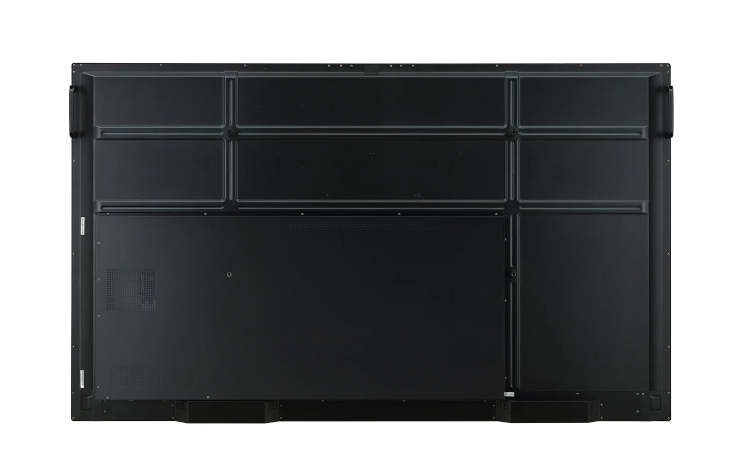

LG 86" 4K IPS LED UHD IR Multiple Touch Interactive Digital Board (86TR3BF) (3 Year Warranty In Singapore)
GENUINE TOUCH & WRITING EXPERIENCE
Multi Touch & Writing
The TR3BF Series can simultaneously use up to 20 points of multitouch and 10 points of writing, as well as 2 types of stylus pens. This function offers a lifelike board writing experience and makes collaboration much easier.
Palm erasing
The TR3BF Series allows you to easily erase texts, pictures, etc, written on the screen by using your own hands. This is not only easier than erasing with the stylus, but also makes you feel more natural, like you're erasing a real whiteboard.
Air Class
Air Class supports connecting up to 30 students and offers interactive meetings for all mobile devices on the same network, providing a variety of tools such as voting, answering, and sharing project texts.
Screen Sharing
The TR3BF Series allows you to share screens and content with laptops and other mobile devices. This makes meetings and classes as efficient and immersive as possible.
Built-in OPS kit
The TR3BF Series supports OPS slots, allowing you to easily and conveniently mount OPS desktop at the back of the digital board without the hassle of connecting to an external desktop, offering you more expanded functions.
Web browser
The TR3BF Series can use the Chrome web browser which is built into the Android OS, so you can search the web easily and quickly, without the need to connect to an external desktop.
All-in one
The TR3BF Series integrates both Android and Note Apps into a high performance SoC, without a PC.
Various size with Ultra HD
Using UHD resolution will allow you to view details at a resolution that is four times higher than FHD, even while zoomed in. Various content such as documents, images, and videos are displayed without any distortion of image quality, which is especially important in an educational and collaborating environment.
True Color, Immersive View
The TR3BF Series shows multimedia content for the attendees more vividly. The IPS panel clearly displays content at various angles, regardless of where attendees are sitting. Each pixel of the IPS panel reproduces the actual image's color without any distortion.
Specification
PANEL
-
- Screen Size
- 86
- Panel Technology
- IPS
-
- Back Light Type
- Direct
- Aspect Ratio
- 16 : 9
-
- Native Resolution
- 3,840 x 2,160 (UHD)
- Brightness(Typ., cd/m², w/ Protection Glass)
- 330
-
- Contrast Ratio
- 1,100:1
- Viewing Angle (H x V)
- 178 x 178
-
- Response Time
- 8ms(G to G)
- Life Time (Typ.)
- 30,000 Hrs (Min.)
-
- Operation Hours
- 16Hr
- Orientation
- Landscape
CONNECTIVITY
-
- (Input) Video / Audio
- HDMI (3), RGB / Audio In
- (Input) External Control
- RS232C In, RJ45
-
- (Input) USB
- USB 2.0 (3, Front : 2ea, Bottom side: 1ea Only for software update), USB 3.0 (3), Touch Out(USB2.0,B Type) (2)
- (Output) Video / Audio
- HDMI (1), Optical Output / Audio Out
MECHANICAL SPECIFICATION
-
- Bezel Color
- Black
- Bezel Width(Off Bezel)
- Top/Right/Left:17.7mm, Bottom:45.7mm
-
- Monitor Dimension (W × H × D)
- 1,957×1,160×86mm
- Weight (Head)
- 67kg
-
- Carton Dimensions(W x H x D) with pallet
- 2,230×1,499×285mm
- Packed Weight
- 109kg
-
- Handle
- Yes
- VESA™ Standard Mount Interface
- 800 x 600
ENVIRONMENT CONDITIONS
-
- Operation Temperature
- 0 °C to 40 °C
- Operation Humidity
- 10 % to 80 %
POWER
-
- Power Supply
- 100-240V~, 50/60Hz
- Power Type
- Built-In Power
-
- Power Consumption (Typ. / Max.)
- 365W / 419W
SOUND
-
- Speaker
- Built in 24W (12W + 12W)
STANDARD(CERTIFICATION)
-
- Safety
- CB / NRTL
- EMC
- FCC Class "A" / CE
-
- ErP / Energy Star
- Yes(EU Only) / No
MEDIA PLAYER COMPATIBILITY
-
- OPS Type Compatible
- Yes
ACCESSORY
-
- Basic
- Power Cord 3 M*1, USB Cable (Type A-Type B) 5 M*1, HDMI Cable 3 M*1, Writing Pen*2pcs, User Manual, QSG, Carton Box, Remote Control
SPECIAL FEATURE
-
- Embedded Writing Software
- Yes
TOUCH SPECIFICATIONS
-
- Touch type
- IR
- Available object size for touch
- Ø3 mm ↑
-
- Response Time
- 60ms ↓ (Android) / 100ms ↓ (Windows)
- Accuracy
- 1.5mm
-
- Interface
- USB 2.0
- Protection Glass Thickness
- 4T (Anti-Glare)
-
- Protection Glass Transmission
- 87%
- Operating System Support
- Windows 7/8/10/WindowsXP/Linux/Mac/Android (WindowsXP/Linux/Mac Support one point touch)
-
- Multi touch point
- Max 20 points / Max 10 writing
